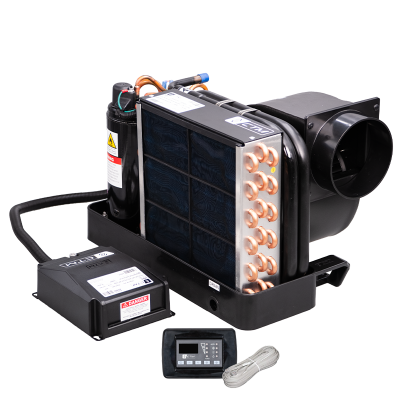

CTM CT-16H Marine Air Conditioner 16,000 BTU - 230V - 50/60HZ
50/60 HzDual Frequency | Cooling or HeatingReverse Cycle | Titanium (Ti) CoilsAnti-Corrosive | 2-YearWarranty |
CTM CT-16H Marine Air Conditioner 16,000 BTU - 230V - 50/60HZ - Turbo Blower
16,000 BTUs of powerful, quiet, and efficient cooling. 230V. Titanium circulating coils, stainless steel bolts, and stainless steel structural pan with ABS tray ensure long-lasting, corrosion-proof performance in even the toughest of marine environments. 2 Year Warranty*. Patent number.: US 12,030,610 B2.
The quiet, powerful, and efficient CTM is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Webasto, Cruisair, Marine Air, and Mermaid Air. The CTM is fully compatible with all Dometic, Cruisair, Marine Air, and Micro Air controls/thermostats and cables, making replacement of those systems a breeze.
CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a self-contained marine air conditioner that raises the bar on quality and performance.
And while lightweight and with a small footprint, the CTM CT includes titanium circulating coils, a high-velocity rotatable turbo blower (rotates less than 250 degrees), stainless steel bolts, and a stainless steel structural pan with Plastic ABS tray in order to ensure long-lasting, corrosion-proof performance in even the toughest of marine environments.
All CTM Control Boards, Temperature Sensors, and cables are made in the United States under strict quality standards. Every CTM Unit comes with an industry-standard 2-year warranty*, knowledgeable and attentive customer service, and ships ground to you free of charge within the US.
As marine A/C retailers, as well as boaters ourselves, we know what boaters are looking for in a marine A/C system — and this is exactly what the CTM line delivers
CTM CT Unit vs Dometic DTG and Webasto FCF Platinum
Specifications:
- Capacity
- 16,000 BTU
- Voltage
- 208-230 V
- Cycle
- 50-60 Hz
- Refrigerant Type
- R410A
- Starting Amps
- 16 A
- Current Consumption Cool / Heat
- 5.1 A / 6.6 A
- Locked Rotor Amps
- 34 A
- Fuse Max. / Min.
- 20 A / 12 A
- Blower Airflow
- 458 CFM
- Blower Speed
- 1420 RPM
- High Velocity Blower
- Yes
- Min. Supply Duct Size
- 6 / 152 (in/mm)
- Seawater Inlet Connection
- 5/8" / 16 (in/mm)
- Suggested Water Flow
- 500 GPH
- Net Weight
- 59 lbs / 27 kg
Features of the CTM CT-16H

Compact Design
- Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.
Electrical Box
- Rugged electrical box with fire retardant cover.
Titanium Condenser Coil
- The most corrosion-resistant material available for seawater cooling coils. 40% more resistant than copper, titanium coils guarantee top cooling performance and a rust-free environment.
Stainless Steel Frame Base
- Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.
ABS Insulated Pan
- ABS is a versatile thermoplastic product that combines several compounds to offer a durable and corrosion-free material. This insulated pan is designed and made to last for years.
Quiet
- Very quiet yet powerful marine air conditioning unit, making it a great option for powerboats and sailboats.
Turbo Blower
- High-velocity rotatable turbo blower that will cool or hear faster. Blower rotates less than 250 degrees.
Universal Board
- Next generation control board is compatible with most controllers in the market, such as OEM Brands like Dometic, Cruisair, and Marine Air. Also supports the TSEP Temperature sensor. Made in USA.
Reverse Cycle Heating
- Enjoy powerful cooling from your CT Unit with the option of heating if needed. Thanks to reverse cycle, you can switch to heating when temperatures get low.
Digital Touch Control
- The CT is compatible with the CTM Touch display - a 2.5" Color Display with the latest technology in the industry, including numerous programmable parameters, operational features, and much more.
Dimensions:

- A - Width
- 20 in / 508 mm
- B - Drain Pan Width
- 10 in / 254 mm
- C - Height
- 14 in / 356 mm
- D - Depth
- 13.5 in / 343 mm
- E - Min. Duct Diameter
- 6 in / 152 mm
CTM CT Unit Cooling Efficient Design vs Competitors

Universal Control Board Layout

Compatible with Most Thermostats
![]() |
![]() |
![]() |
![]() |
Smart Touch / Easy Touch | CTM Elite II | Passport I/O | SMXir |
Because the CTM unit comes with the Universal Control board, it should work with the controller you currently have. Supported controllers include the SMXir, Passport I/O, Smart Touch, and Elite II. However, there are some older versions of the SMXir and Passport i/o controllers that don't have the firmware to work with the new universal board. A newer version of the SMXir or the Passport i/o.
More information on CTM
Notes if replacing a Dometic DTU16, DTG16 or ECD16 - 230V
The CTM CT-16H marine air conditioning unit works as a good replacement for the Dometic DTG16 - 230V (205162176), DTU16 - 230V (205162160), or ECD16 - 230V (207500017). There are some specs that should be taken into consideration when replacing one of the units previously mentioned.
- Because the CT-16H 230V unit comes with the Universal Control board, it will work with the controller you currently have. Supported controllers included: SMXir, Passport I/O, Smart Touch, Elite II.
- Waterline connections should be the same as the unit you are replacing, the CT-unit has a standard 5/8" water connection.
- The CT-16H 230V Unit has a 6 inch ducting ring whereas the Dometic comes with a 7 inch. It is a quick replacement as the ducting can be easily cinched down with a clamp.
- Dimensions wise this unit is very similar to the one you are replacing, so It shouldn't be a major issue. However, it is suggested you double-check in order to avoid any issues when installing.
Substitute the following Part Numbers
CTM Unit Part Number | Description | Fits OEM Part number | OEM Description |
24201C | CT-16 230V 50/60HZ 410A | 205162176 | DOMETIC DTG16 230V 50/60HZ 410A 7MR |
205162160 | DOMETIC DTU16 230V 60HZ 410A | ||
205162161 | DOMETIC DTU16 410A 7" MR 230V 60HZ | ||
205161160 | DOMETIC DTU16 410A 220V 50HZ | ||
205161161 | DOMETIC DTU16 410A 220V 50HZ 7MR | ||
207500017 | DOMETIC ECD16KZ/1-HV 410A 220-240V 50/60HZ | ||
205563750 |
CRUISAIR STQ16C-410A 230V 60HZ | ||
205563755 | CRUISAIR STX16C-410A 230V 60HZ | ||
205563753 | CRUISAIR STQ16C-410A 230V 60HZ 7"MR | ||
205563700 | MARINE AIR VTD16KZ-410A 230V 60HZ | ||
205563702 | MARINE AIR VTD16KZ-410A 230V 60HZ 7"MR | ||
MSBA14C2 | MARINAIRE 14,000 BTUS, 230V 60HZ | ||
MSBA16C2 | MARINAIRE 16,000 BTUS, 230V 60HZ | ||
5011401A | WEBASTO FCF PLATINUM 16,000 BTUS 230V 60HZ | ||
WBCL120004F | WEBASTO S16 BLUECOOL 16,000 BTUS 230V 60HZ |
Installation Video
Warranty
The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.
In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.
For more detailed information please download the Manual and refer to page 17.
