marine air systems control panel
Micro-Air 402-IO Passport I/O Drop-In Replacement

By buying this product you can collect up to . Your cart will total 18 points that will be converted into a of $1.80 towards your next purchase! Must be in to collect points.

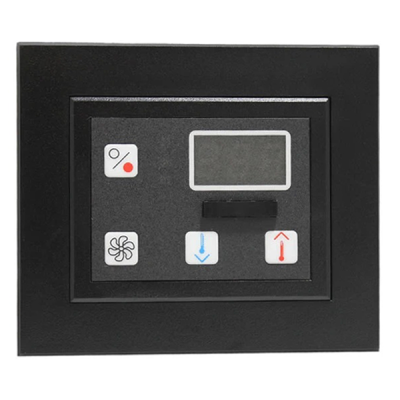

Passport I/O Control - Bezel Included

(4) Customer reviews

Passport I/O Control Panel replacement by Micro Air, for Dometic and Marine Air Systems. Micro-Air 402-IO. It is newly designed and manufactured. Cures annoying problems like sticking or non-operational buttons. New LED segments and 6 fan speed. Drop-in replacement for the Marine Air Systems Control Panel (Passport I/O). Bezel Included. New control.

Part Number: ASY-402-X03
Fits Dometic / Marine Air Part Number: 222000245 & PCB-520-00L

Reference: ASY-402-X03 / 222000245
In Stock: 27
Reg Price: $183.28
CPlus Price: Login for Pricing
What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!
International Shipping Calculator
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

Passport I/O Control - Replacement for Dometic / Marine Air Systems Control Panel

The passport I/O control is a replacement for Marine Air Systems Control Panel (Passport I/O). It is newly designed and manufactured. Cures annoying problems like sticking or non-operational buttons, bad LED segments or non-working displays. 6 Blower Speeds. Drop-in replacement for the Marine Air System Passport I/O Compact Control Display.

Dimensions: 3.2 in x 2.5 in (81 mm x 64 mm)
Cut-out Dimensions: 2.5 in x 1.9 in (64 mm x 48 mm)

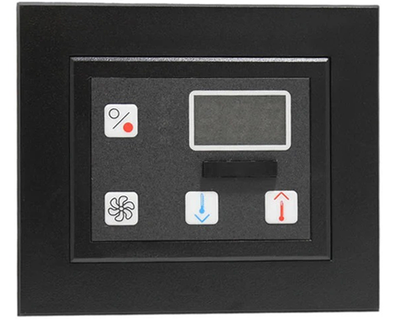

Micro Air Systems Control Panel

Benefits of the 402-IO Control Display

  • Drop-in replacement for the Marine Air Systems Control Panel (Passport I/O Control).
  • Easy to read controls and digital display.
  • Replaces displays with serial numbers starting with 377.  These are imprinted with a logo with a large penguin facing left.
  • This control display does NOT replace displays with serial numbers starting with 315 and imprinted with a small penguin facing right or no penguin at all. The control board would need to be replaced for it to work with the new display.
  • Backward compatible with legacy Marine Air Systems Passport I/O control board.
  • 8-pin connector.
  • Cures annoying problems like sticking or non-operational buttons, bad LED segments or non-working displays.
  • Bezel included.

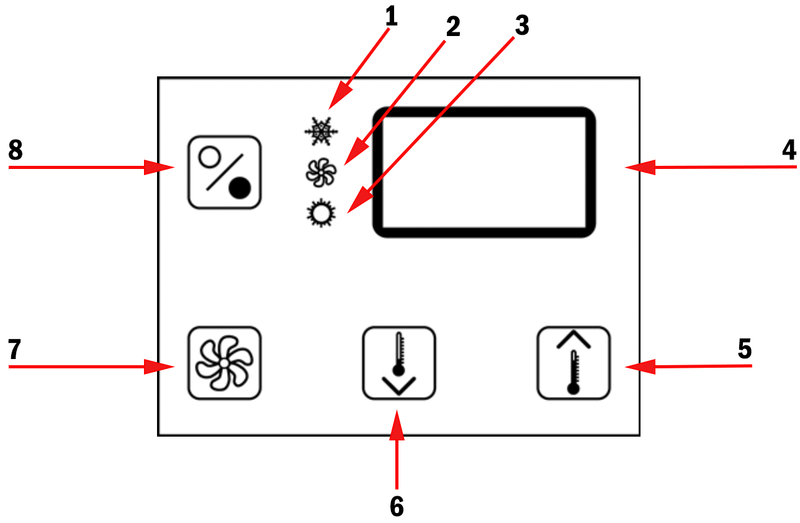

Passport I/O 222000245 Control Layout

Passport I/O Control

1 Cool Mode Symbol 5 Raise Temperature Button
2 Fan Indicator Symbol 6 Lower Temperature Button
3 Heat mode Symbol 7 6 Speed Fan Control
4 Digital Display 8 Power Button
CTM SMX II Wall Cover Plate...
CTM SMX II Wall Cover Plate for SMXir, Elite II, Qht, Passport & Easy Touch
40004O
Reg Price: $29.99
CPlus Price: $28.49

Reviews

No customer reviews for the moment.
(4) Customer reviews
100% of customers recommend this product
Customer rating
Quality
Rate it
Passport I/O Controller
By
This controller works very well. It does a good job of maintaining the set point in both cool and heat modes. It is easy to use and adjust. The cost is reasonable and I recommend it for a replacement or a new system.
Passport control panel
By
Perfect replacement worked as soon as I plugged it in
Perfecto
By
Funciona perfectamente tiene su propio sensor para medir la temperatura,fácil de instalar. Muy buena atención y profesionalidad Gracias
Good Passport IO Replacement
By
Replaced my Marine Air thermostat without issue. Good price, and actually works better than my original Passport I/O
