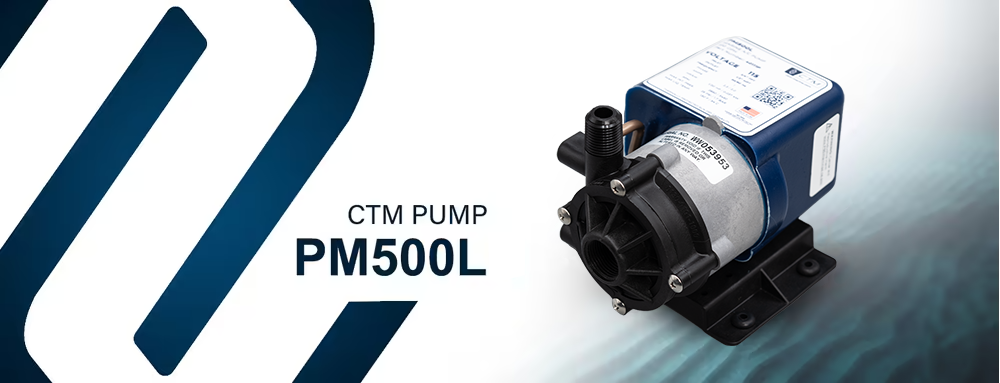

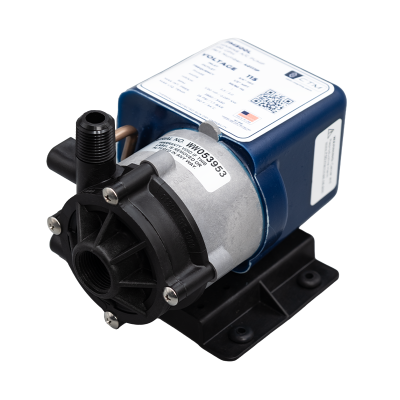

CTM - PM500L - 500 GPH - 115V - Submersible A/C Pump
CTM - PM500L is a completely submersible sealless centrifugal magnetic drive marine air conditioning pump; also a Completely run dry pump. The model generates a maximum flow of 8.5 gallons per minute and, furthermore, a maximum head of 19 feet at 25 PSI. The PM500-115V is also ISO 8846 Marine Ignition Protected.
500 gallons/hr. Replaces March LC-3CP-MD and Dometic PML500 115V (336183)
.png){kind=small}
Reference: 40111P
In Stock: 95
$269.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
CTM - PM500L Marine Pump - 115V - 500 GPH
The CTM - PM 500L - 115V is a completely submersible sealless centrifugal magnetic drive marine hvac pump. Model generates a maximum flow of 8.5 gallons per minute and furthermore a maximum head of 19 feet at 25 PSI. The PM500L is also ISO 8846 Marine Ignition Protected. The PM500L is a magnetically driven pump with no shaft seal. The pump is epoxy encapsulated, which allows the PM pump to run fully submerged in many liquids or in open air for complete moisture protection. When re-assembling the pump for service, make sure all “O“ rings are properly seated.
Key Benefits
- To withstand thermal overloads without failure, the pump has run dry protection. Finally, when cooled, the pump will resume operating normally.
- Polypropylene, Buna N and Ceramic Magnet make up the wet end materials exposed to liquids. When submerged, Epoxy, Stainless Steel, Polysulfone, and also the Cord will come in contact with the solution.
- The inlet connection is a ¾” female pipe thread and the outlet is ½” male pipe thread.
- Includes fully integrated, heavy duty marine base and also the original base in contrast to other pumps.
- The motor is a 1 Phase 115V, .05 Horsepower motor, running on either 50 or 60 HZ.
- The pump is not self-priming and requires flooded suction.
- Maximum internal pressure is 25 PSI and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius.
- Pumps 500 gallons/hr

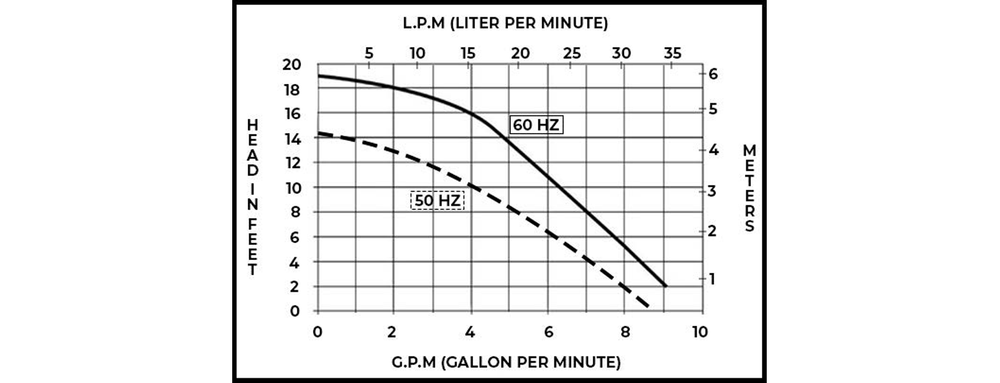

Performance Curve

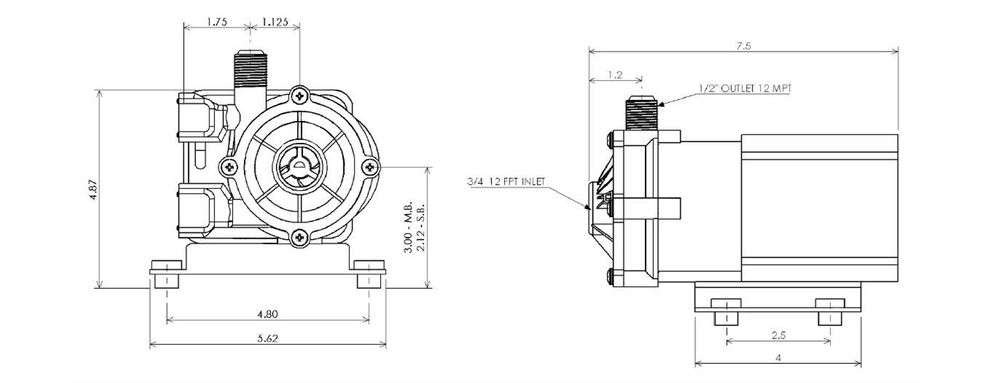

Dimensions
Technical Specifications
| Attribute | Information |
|---|---|
| Part Number | PM 500-115 |
| Weight | 8.5 lbs |
| Maximum Flow |
8.5 GPM (31 LPM) |
| Maximum Head |
19 Feet of Head @ 8.2 PSI |
| Maximum Internal Pressure |
25 PSI |
| Maximum Liquid Temperature |
130° F (54° C) |
| Inlet |
3/4″ FPT |
| Outlet |
1/2″ MPT |
| Hertz |
50/60 Hz |
| Voltage |
115 Volt |
| Phase |
Single Phase (1 PH) |
| Watts |
120 |
| Amps |
2.0 |
| Horsepower |
1/20 HP |
| RPM |
3450 |
