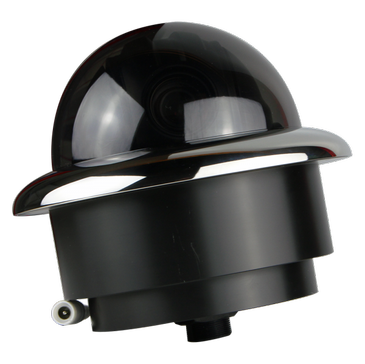

IRIS4106 Miniature PTZ Dome Camera – 4 in 1 Video Format - IP Camera Module
The IRIS4106 is an IP camera that will interface with Raymarines network MFD’s such as the new Axiom family and other devices running LightHouse 2 and 3 software. The camera is available with both a 12VDC input and with IEEE802.3af Power over Ethernet, which vastly simplifi ies cabling and reduces costs. The IRIS4106’s crisp, clear video can be viewed by up to 32 users at a time across your boats on board network and also features a high level of user confi guration in order to confi gure the camera to suit your installation - including video mirror for rear view applications.
Reference: IRIS4106
In Stock: 1
$1,190.99
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
IRIS4106 Miniature PTZ Dome Camera - iHD Digital
Features of IRIS4106
- Marine Grade 316 Stainless Case
- Smallest PTZ dome available (86mmø)
- 3 SKU’s, Analogue, iHD and IP
- Huge Compatibility
- Easy Installation & Low Power
- Stylish High Polished Finish
- Fast, Responsive pan, tilt zoom operation.

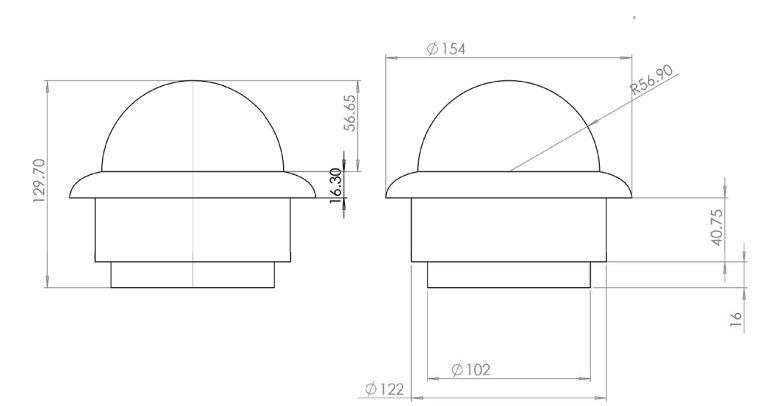

Dimensions
*DIMENSIONS IN MM
Specifications
| Image Sensor | 1/4” Omnivision OV9712 |
| Image Processing | H.264 Video Codec, Dual Stream 1-30fps adjustable |
| Effective Pixels | 921,600 |
| Resolution | 1080P/720P |
| Min Illumination | 0.1 Lux (Colour) / 0.01 Lux (B/W) |
| Illumination | NA |
| IR Distance | 10m |
| Day / Night | Auto / Day / Night |
| S/N Ratio | >50dB |
| Lens | F1.8 / F=4.9mm ~ 49mm |
| Optical Zoom | 10x |
| Digital Zoom | 10x |
| Wide Dynamic Range | Supported |
| BLC | Supported |
| 3D DNR | Supported |
| Mirroring | Horizontal Flip / Vertical Flip |
| AGC | 0~32 |
| Pan Details | 360˚ Continuous Rotation / Speed 0.5~300˚ sec |
| Tilt Details | 0 ~90˚ / Speed 0.5~300˚ sec |
| Network | Ethernet RJ45 (10/100 Base-T) |
| Protocol | TCP/UDP/HTTP/MULTICAST/UPnP/NTP/ RTSP/ONVIF-S 2.4 |
| Power over Ethernet | Supported |
| P2P | Supported |
| Smart Phone | Android / iOS |
| Compatibility | PC Based Systems. For latest MFD compatibility please contact IRIS |
| Max Users | 32 Users |
| Power | +12VDC / PoE IEEE802.3aF |
| Power Consumption | 1A Max |
| Operating Temp | -35˚C ~ + 60˚C (-31˚F ~ + 140˚F) |
| Dimensions | Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm ( For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm |
| Ingress Potection | IP66 |
| Weight | 1.1Kg (2.4 LB) |
| Material | 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing |
Iris Marine 2 Year Warranty
Iris Innovations marine cameras include a two-year limited warranty covering defects in materials or workmanship under normal use. During this period, defective components may be repaired or replaced at no charge for parts or labor (shipping usually not included). The warranty does not cover cosmetic damage, consumables, improper installation, misuse, accidents, or environmental damage.
