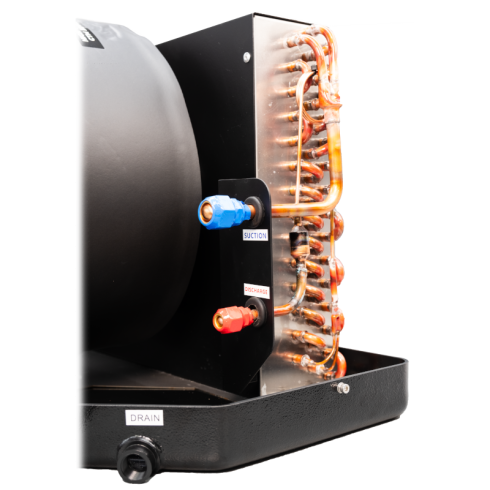

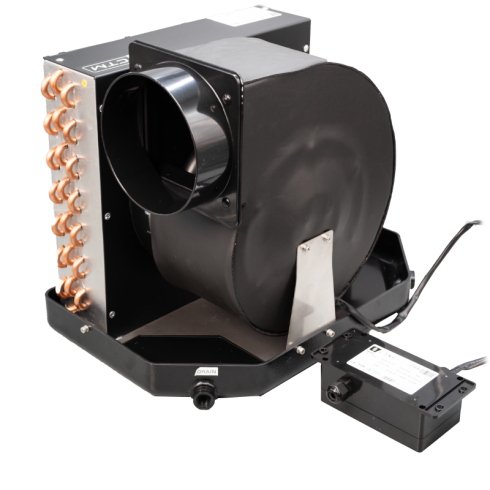

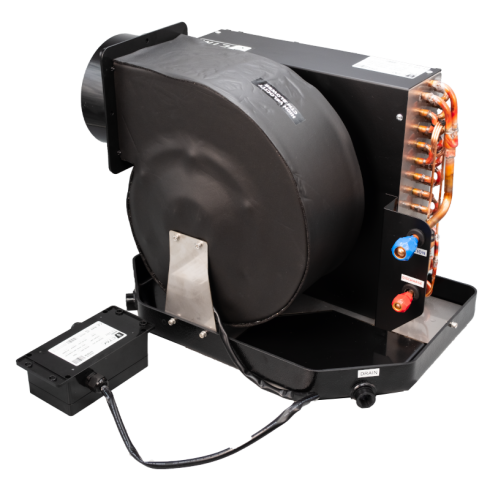

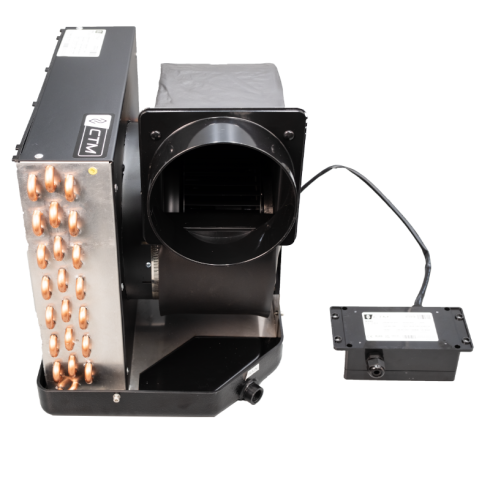

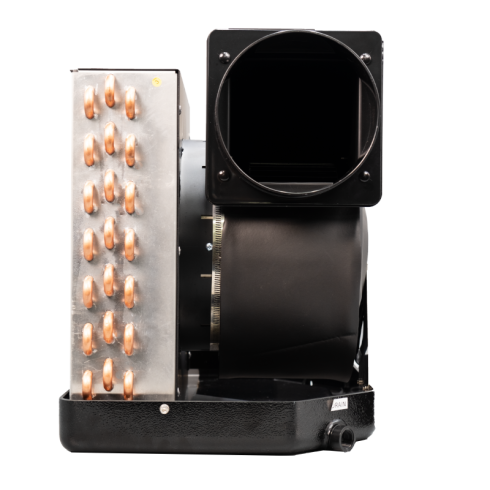

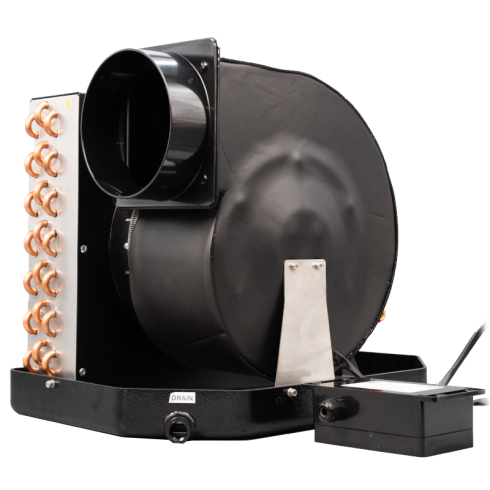

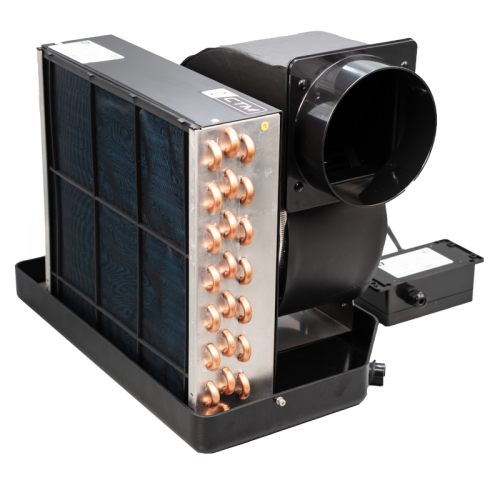

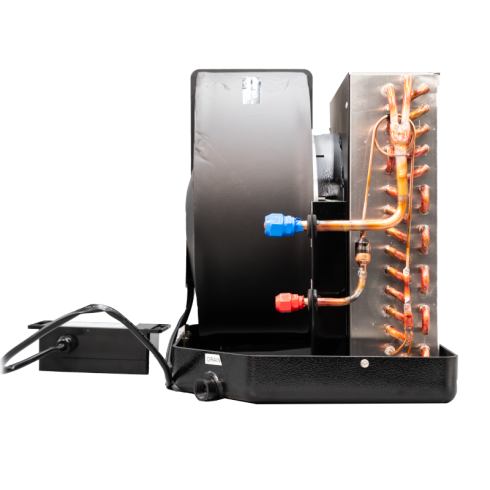

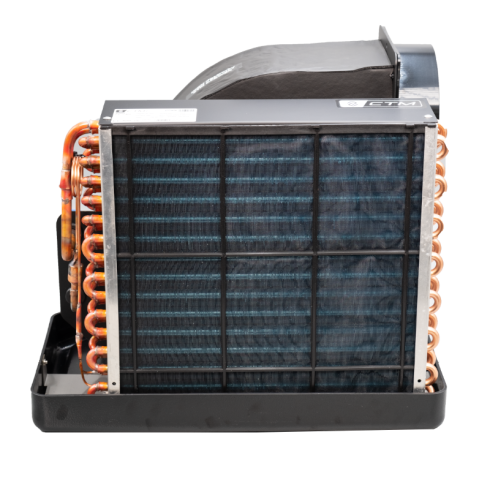

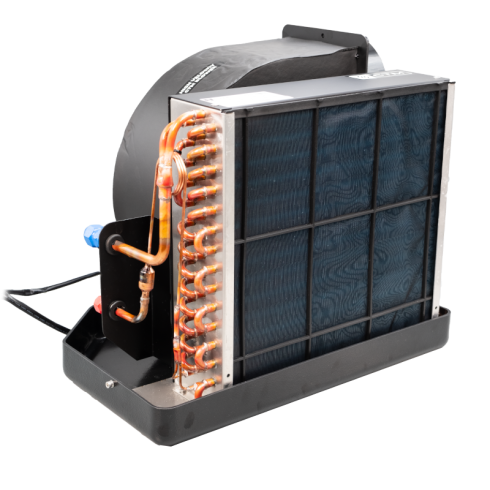

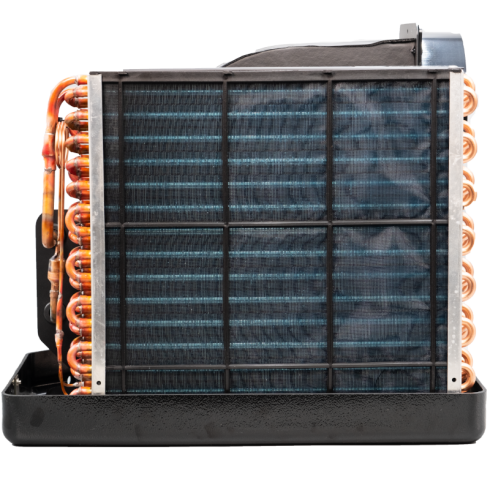

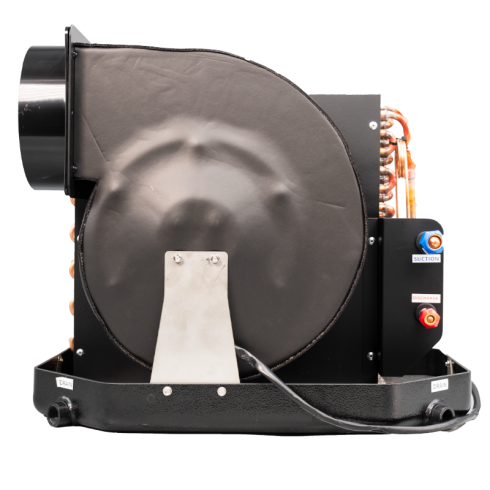

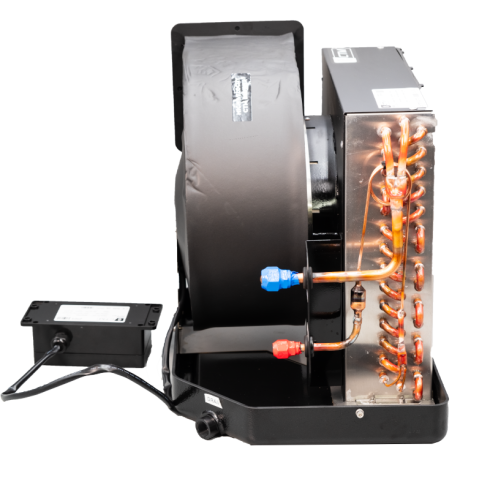

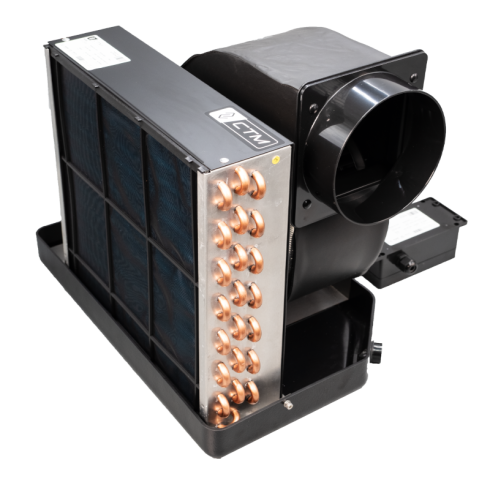

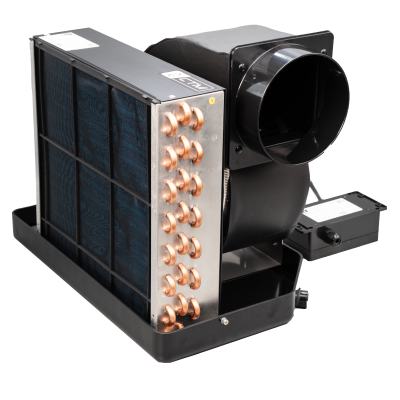

CTM EV-24H 24,000 BTU Evaporator - Marine Split A/C Unit - 230V - 50/60HZ / 1 PH

By buying this product you can collect up to 213 Citimarine points. Your cart will total 213 points that will be converted into a voucher of $21.30 towards your next purchase! Must be logged in to collect points.

CTM EV-24H 24,000 BTU Evaporator - Marine Split A/C Unit - 230V - 50/60HZ / 1 PH

Name: CTM EV-24H 24,000 BTU Evaporator - Marine Split A/C Unit - 230V - 50/60HZ / 1 PH
Brand: CTM Marine
SKU: 67201H
Price: 1989 USD
Availability: InStock

50/60 HzDual Frequency

Cooling or HeatingReverse Cycle

R410ARefrigerant

2-YearWarranty

Reference: 67201H

$1,989.00

Free US Shipping on This Item!*

International Shipping Calculator

Return Policy

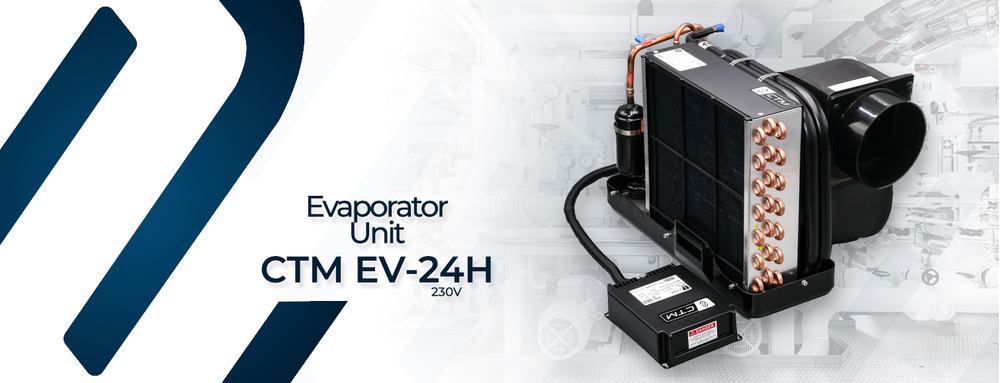

CTM EV-24H Evaporator Unit - 24,000 BTU Split Marine Air Conditioning Unit - 230V - 50/60HZ

CTM EV-16H 16,000 BTUS Evaporator Unit

24,000 BTUs of powerful, quiet, and efficient cooling. 230V. Stainless steel bolts and stainless steel structural pan ensure long-lasting, corrosion-proof evaporator / air handler performance in even the toughest of marine environments. 2 Year Warranty*. Patent Pending S/N 63/104189.

The quiet, powerful, and efficient CTM Marine Evaporator Unit is a great option for new installs but also works as the perfect drop-in replacement for all major marine A/C brands including Dometic, Marine Air, and Cruisair.

CTM has taken nearly a decade of experience as a top-selling marine A/C retailer in the US, and combining this with an understanding of the wants and needs of marine A/C customers — as well as where other major brands could be improved — CTM has created a split marine condensing unit that raises the bar on quality and performance.

By using R410A refrigerant, CTM engineers guarantee maximum cooling performance while meeting all international standards of clean air.

Specifications:

Capacity: 24,000 BTU

Voltage: 208-240 V

Cycle: 50-60 Hz

Refrigerant Type: R410A

Blower Airflow: 458 CFM

Blower Speed: 1420 RPM

Phase: 1

Input rotor Amps: 1.8 A

Locked Rotor Amps: 1 A

Fuse Max.: 5 A




Discharge Connection Size: (3/8 in) / (9.5 mm)




Suction Connection Size: (5/8 in) / (15.8 mm)


Blower Duct Size: 7 in (177 mm)

Net Weight: 34 lbs (15.5 Kg)

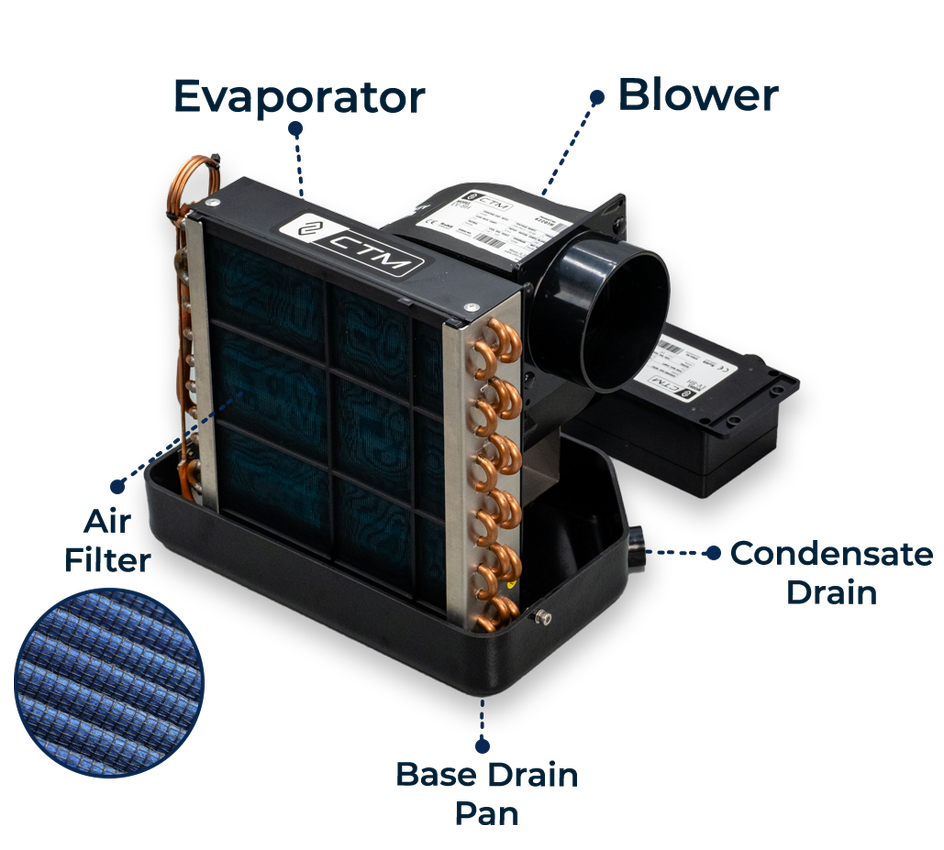

Features of the CTM EV-24H



Compact Design: Perfect drop-in replacement for all major marine A/C Brands. It's compact design makes it the perfect unit for small spaces.

Reusable Filter: Circulate clean air with reusable air filter. Remove, wash down, and put it back.


Quiet: No loud compressor noises thanks to the vibration isolation bases on under the compressor.

Stainless Steel Frame Base: Corrosion-resistant stainless steel frame base will not rust or fall apart. Long-lasting and made to withstand the harsh marine environment.

Dimensions:

A - Width: 20.8 in / 530 mm

B - Depth: 13.7 in / 350 mm

C - Height: 17.9 in / 455 mm

Compatible with Most Thermostats


Smart Touch / Easy Touch	Elite II	Passport I/O	SMXir

More Information on CTM

CTM CX & CTM EV – CTM Marine Split Gas Air Conditioning System

CTM Marine has taken 10+ years of experience selling marine air conditioners, combined with feedback received from customers on their units over the years, and has produced the all-new, CTM CX & CTM EV split gas marine air conditioning system, superior to anything available on the market.

Best Marine Air Conditioners? Best Brand, Support & Warranty?

Boaters often wonder which brand makes the best marine air conditioners when looking to install a new unit.

To be honest, most marine air conditioners from all the major brands are solid and will do the job, as long as they’ve been installed correctly. However, the keyword here is most. You want to improve your odds of being satisfied with your A/C purchase by researching which company’s units have the least number of complaints… and if there is a problem, how that company handles it.

Warranty

The warranty period of registered CTM products is (2) two years, being the first year parts and labor, the second year parts only. For unregistered CTM products (1) one year, being the first 6 months parts and labor, and the last 6 months parts only. The warranty period of CTM products begins from the date of purchase (if purchased through a dealer or distributor), when installed (if installed by an authorized CTM dealer) and/or at the time of possession of the vessel by the owner (for OEM installations). However, the warranty period shall not exceed (3) three years from the original manufacture date. CTM products include a serial number which is date-coded, in order to determine the manufacturer date of the product, you may contact CTM’s customer service to obtain the original date.

In the event there is an extended period of time between the date a CTM product is manufactured and the moment that the product goes into service, CTM will require proof of purchase. For unregistered products, a proof of purchase will be required as well.

For more detailed information please download the Manual and refer to page 17.
