WEBASTO BlueSky Electric Sliding Hatch - Black Finish
The Webasto BlueSky Electric Sliding Hatch is designed for use on the wheelhouse or cockpit canopy of a power craft. The panel is made from two acrylic shells with a screen print, resulting in a lightweight, modern design with improved insulation.*2-Year Warranty.
Part Number: 3398587A
Part Number: 3398587A
Reference: 3398587A
Reg Price: $2,044.00
CPlus Price:
$1,900.92
What is Citimarine Plus Membership?
Click here for details
Click here for details
Freight Shipping on this item*
US freight shipping rate will be calculated in the cart.
Shipping Calculator
Webasto BlueSky Electric Sliding Hatch Acrylic - 3398587A
The Webasto BlueSky Electric Sliding Hatch is designed for use on the wheelhouse or cockpit canopy of a power craft. The panel is made from two acrylic shells with a screen print, resulting in a lightweight, modern design with improved insulation. The electrical operation makes the hatch easy to use and the panel can be stopped in any desired position. The tilt and slide mechanism in combination with the seal ensures the hatch is fully water tight.
The Webasto BlueSky Electric Sliding Hatch is designed for use on the wheelhouse or cockpit canopy of a power craft. The panel is made from two acrylic shells with a screen print, resulting in a lightweight, modern design with improved insulation. The electrical operation makes the hatch easy to use and the panel can be stopped in any desired position. The tilt and slide mechanism in combination with the seal ensures the hatch is fully water tight.
Key Features
- Smooth electric operation
- Simple plug & play installation
- Insulated panels
- Modern attractive design
- Variable tilt and slide positioning
- Compact dimensions and lightweight
- Certified for Category B Area 3 use
Technical Specifications of the Webasto 3398587A
| Attribute | Information |
|---|---|
| Amperage | 20 Amps |
| Operation Mode | Electrical 12 VDC |
| Frame Material | Aluminum |
| Panel Material | 2 x mm Acrylic / Grey Tinted |

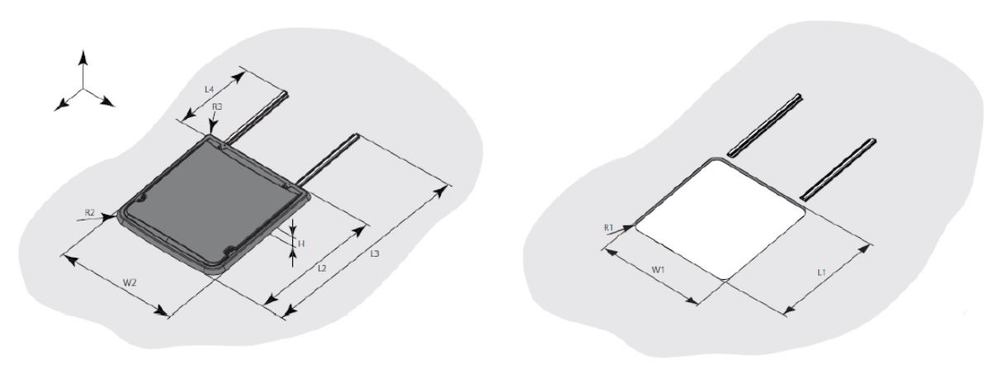

| Overall Dimensions (L3 x W2) | 1.490 x 810 mm (0.059 in x 31.88 in) |
| Cut-Out Length (L1) | 770 mm (30.32 in) |
| Cut-Out Width (W1) | 720 mm (28.35 in) |
| Corner Radius (FRC,RCR) | 65 mm (2.56 in) |
| Opening Dimensions (L x W) | 483 x 642 mm (19 in x 25.28 in) |
| Approx. Weight | 14 kg (30.8 lbs) |
| Finish |
Black |
