V2G Vertical Windlass Gypsy Only 5/16 G4 & 1/2 - For Boats 30 - 40 Ft., Max. Pull: 1433 lbs

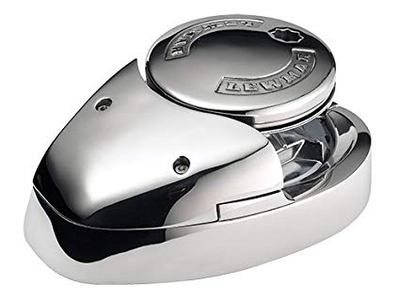

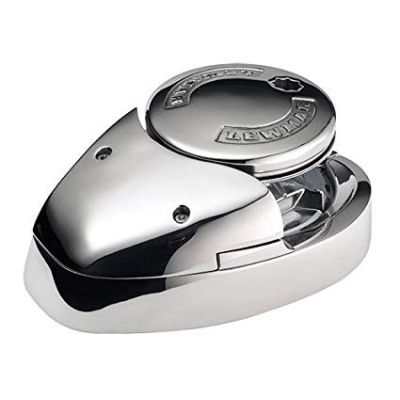

LEWMAR V2G Vertical Windlass Gypsy Only 5/16 G4 & 1/2



Features

• Rope-chain gypsy
• Manual chain release (Free Fall)
• Cone clutch for smooth, easy control
• W.A.R.P Drum
• Fall safe anchor lock
• Robust/reliable worm gearbox
• FastFit™ option for quicker installation and less hassle
• Emergency recovery kit available

Windlass kits feature Fastfit™ Motor Gearboxes.

FastFit Feature

FastFit motor gearbox attachment enables the windlass to be fitted by one man alone.

While the gearbox alignment to the deck unit is critical to a standard installation, the FastFit™ clamping system perfectly aligns the deck unit and motorgearbox for a perfect fit first time.

FastFit enables the motor / gearbox to be rotated and fixed in increments of 45°.

To install your windlass, simply fix the deck unit to the deck and then slide the gearbox up the shaft, swing the FastFit™ clamp shut and tighten up the bronze nut.

Specifications

lb / in

Motor Power (W): 700
Max Pull (lbs): 1433
Working Load (lbs): 358
Max Line Speed (ft/min): 69
Normal Current Draw (A): 80
Circuit Breaker (A): 90
Approx Weight (lbs): 42

kg / cm

Motor Power (W): 700
Max Pull (kg): 650
Working Load (kg): 163
Max Line Speed (m/min): 21
Normal Current Draw (A): 80
Circuit Breaker (A): 90
Approx Weight (kg): 19

Gypsy
