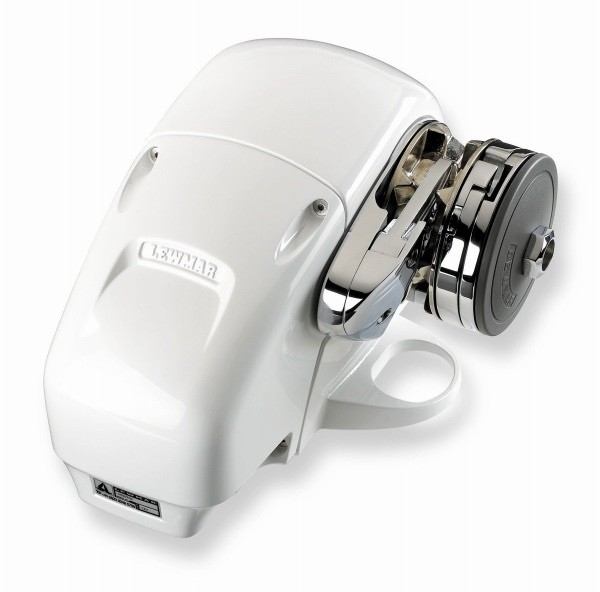

Lewmar H3GD 12V Stainless Steel Windlass w/ Drum | 1962lb Pull
A powerful 12V stainless steel horizontal windlass with a warping drum for boats up to 48ft, featuring a 1000W motor, worm gearbox, and 1962lb max pull.*3 Year Warranty!
If Not In Stock - 10 Days Processing Time
Reference: 69600545
Out of Stock
Regular Price:
$2,714.24
Boat Show Special:
$2,578.53
Boat Show Special 5% OFF Sitewide
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Powerful and Reliable Lewmar H3GD Horizontal Windlass with Drum
The Lewmar H3GD Windlass (Gypsy / Drum) is a powerful, dual-direction 12V horizontal anchoring system designed for boats up to 48 feet. Constructed from durable stainless steel, this windlass utilizes highly reliable worm gearbox technology to deliver an impressive maximum pulling power of 1,962 lbs.
Durable and Easy to Install
Engineered for longevity and minimal maintenance in harsh marine environments, the H3GD features a waterproof seal and a simplified wiring system. This makes the unit incredibly easy to install so you can get started quickly. This specific model is equipped with a versatile warping drum alongside a rope-chain gypsy perfectly configured to handle 8mm (5/16") chain and 9/16" to 5/8" anchor line.
H3GD Windlass Features:
- H Series Horizontal Windlass
- 1000 W Motor
- Maximum Pulling Power: 1962 lbs
- Integral Contactor: Protected By Maincase
- Made of Composite & Aluminum
- Windlass Gypsy 5/16" Chain & 9/16"-5/8" Rope / Line
- Sealed Waterproof Unit
- Robust Horizontal Worm Motor-Gearbox
- Stainless Steel Warping Drum
- Quick Installation
- For Boats Up To 48 ft
Includes:
- Built-in Dual Direction Contactor
- Circuit Breaker
- Rocker Switch
Specifications:
| Model | 69600545 |
| Voltage | 12V |
| Typical Power | 1000 Watts |
| Typical Max Pull | 1962 Lbs |
| Max Line Speed | 92 ft |
| Working Load | 475 Lbs |
| Normal Current Draw | 85A |
| Typical Line Speed | 59 ft |
| Weight | 56 Lbs |
| Circuit Breaker | 110A |
| Dimensions | 8-5/16" H x 14-3/8" L x 14-1/4" W |
FAQs
What size boat is the Lewmar H3GD windlass designed for?
The Lewmar H3GD horizontal windlass is designed to handle anchoring for boats up to 48 feet in length.
What is the maximum pulling power of the Lewmar H3GD 12V windlass?
Driven by a powerful 1000W motor, the Lewmar H3GD delivers a maximum pulling power of 1,962 lbs.
What size chain and line does the Lewmar H3GD use?
This H3GD model is configured with an RC8MM gypsy designed to fit 8mm or 5/16-inch chain, and 9/16-inch to 5/8-inch anchor line.
What does the "D" in Lewmar H3GD stand for?
The "D" stands for "Drum." It indicates that this specific model features both a chain gypsy and a smooth warping drum (capstan) on the outer end for handling secondary lines.
Is the Lewmar H3GD windlass easy to install?
Yes, the Lewmar H3GD is designed with a simplified wiring setup and a waterproof seal, making it easy to install and requiring minimal maintenance.
