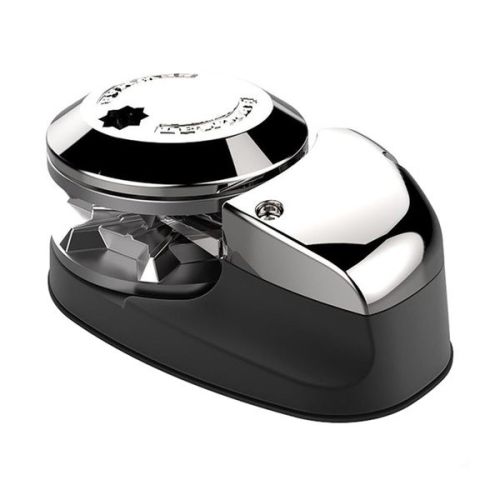

CPX1 Vertical Windlass 12v Gypsy Only - 1/4" G40 Chain 1/2" Line
Lewmar CPX1 Vertical Windlass 12v Gypsy Only for 1/4 "G40 Chain 1/2" Line - Lighter than the all stainless steel deck unit, the CPX deck unit features an alloy base and a reduced number of parts without compromising on performance. Easy to service. State of the art motor/ gearbox. Highly reliable, lightweight, high-performance windlass. 6671011000.
Reference: 6671011000
$1,617.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Lewmar CPX1 Vertical Windlass 12v Gypsy Only - 1/4" G40 Chain 1/2" Line
Lewmar is a brand that stays in constant contact with boat designers, boat builders and owner's associations to ensure that their products remain at the forefront of development.
Following discussions with key customers, Lewmar identified the need for a high-quality product that is lighter than the all stainless steel deck unit. Subsequently, the CPX deck unit features an alloy base. With an emphasis on reliability, they have reviewed the architecture of the windlass and reduced the number of parts without compromising on performance. This also makes the windlass easier to service. Lewmar, strives to keep up to date with new developments in the motor/ gearbox industry, constantly testing new products coming to market, and the CPX Windlass is no exception. The result is a highly reliable, light weight, high performance windlass.
Specifications of Lewmar CPX1 - 6671011000
| Model | Motor Power Watts | Max Pull | Working Load | Max Line Speed | Normal Current Draw | Circuit Breaker |
| CPX1 12V | 700w | 1000lbs (454 kg) | 250 lbs (113 kg) |
65 ft/min (19 m /min) |
80A | 90A |
Gypsy
| Number | Chaain | Rope |
| 000 | 6mm ISO 4565, 1∕4" G40*, 1∕4" BBB | 1/2" 3-strand or 8-plait |
*G40 = Grade 40 Short Link Chain
This set contains:
(01) 68001042: CPX0/CPX1 12V 700w MGB & CONT.
(01) 68001048: CPX 000 GYPSY ASSEMBLY
(01) 65002489: WINDLASS X HANDLE
(01) 69000493: CPX1 Go DECK UNIT
(01) 68000349: CIRCUIT BREAKER 90 AMP 9327
(01) 68000593: GUARDED ROCKER SWITCH
