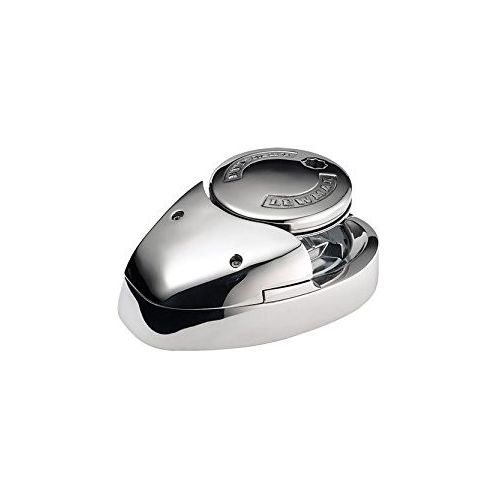

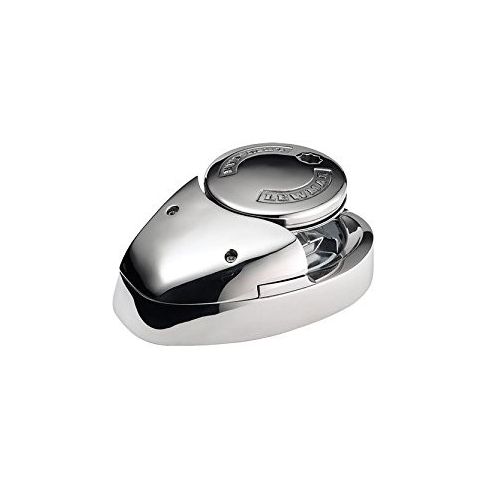

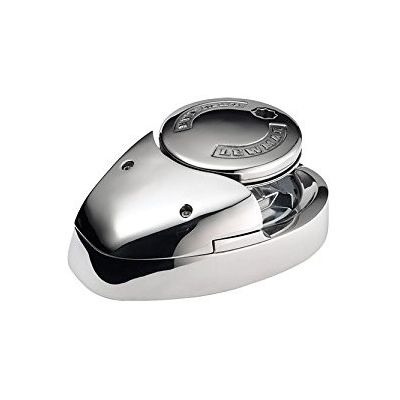

Lewmar V3G Stainless Steel Vertical Windlass | 1962lb Pull
A compact, stainless steel vertical windlass for 40-50ft boats, featuring a robust 1000W motor, worm gearbox, and 1,962lb max pull for rope-chain or all-chain rodes.
*3 Year Warranty!
If Not In Stock - 10 Days Processing Time
Reference: 6672211108-139
Out of Stock
Regular Price:
$2,956.79
Boat Show Special:
$2,808.95
Boat Show Special 5% OFF Sitewide
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Reliable Anchoring with the 1000W Lewmar V3G Windlass
The Lewmar V3G Vertical Windlass (Gypsy) is a beautifully styled, compact vertical windlass constructed from durable stainless steel. Designed for both powerboats and sailboats ranging from 40 to 50 feet, this deck unit conceals a highly robust and reliable worm gearbox, offering maximum strength and control in demanding marine environments.
Versatile Anchoring Options
Driven by a powerful 1000-watt motor, the V3G provides an impressive maximum pulling power of 1,962 lbs, ensuring secure and efficient anchor retrieval. It allows boaters to effortlessly employ rope-chain or all-chain anchor rodes with the simple touch of a button.
V3G Vertical Windlass Features:
- Vertical Electric Windlass
- 1000 W Motor
- Maximum Pulling Power: 1962 lbs
- Emergency Recovery Kit
- Manual Override & Chain Release
- Made of Stainless Steel
- Windlass Gypsy 3/8" G4 Chain 5/8" Line or Windlass Gypsy 5/16" G4 Chain 9/16" Line
- Rope-Chain Gypsy
- W.A.R.P Drum
- Cone Clutch: For Smooth, Easy Control
- Fall Safe Anchor Lock
- FastFit Option: For Quicker Installation & Less Hassle
- Robust / Reliable Worm Gearbox
- For Boats from 40 to 50 ft
Includes:
Windlass
Circuit Breaker
Handle
Rocker Switch
Dual-Direction Contactor
Circuit Breaker
Handle
Rocker Switch
Dual-Direction Contactor
Specifications:
| Gypsy Number | Chain Description | Rope Description |
| 6672211110-139 | 10mm ISO, Campbell 3/8" S3, 3/8" G80, 3/8" G40 | 1/2 - 5/8 3-strand and 8-plait (5/8 only) |
| 6672211108-139 | 10mm DIN 766, 9.5mm ISO, 5/16" G40, Campbell 3/8" S4 | 1/2 - 5/8 3-strand and 8-plait (5/8 only) |
|
Power |
Motor Power |
Typical Max Pull |
Maximum Line Speed/min |
Working Load |
Normal Current Draw |
Line Speed/min |
Weight |
Circuit Breaker |
|
12V |
1000W |
1962 |
92 |
473 |
85A |
59 |
40 |
110A |

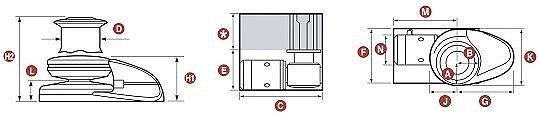

Dimensions:
| D | H1 | L | A | B | C | E | F | G | J | K | M | N |
| 3 | 3 9/16 | 1 9/16 | 2 3/8 | 2 3/4 | 12 3/8 | 6 13/16 | 6 5/16 | 6 3/16 | 2 3/4 | 6 5/16 | 9 1/8 | 4 1/4 |
FAQs
What size boat is the Lewmar V3G windlass designed for?
The Lewmar V3G is designed for both powerboats and sailboats ranging from 40 to 50 feet in length.
What is the maximum pulling power of the Lewmar V3G?
This specific V3G model features a robust 1000W motor that delivers a maximum pulling power of 1,962 lbs.
What type of anchor rode can the Lewmar V3G handle?
The V3G is designed to effortlessly employ either rope-chain or all-chain anchor rodes with the touch of a button.
What material is the Lewmar V3G constructed from?
The Lewmar V3G features a compact, beautifully styled deck unit made from durable stainless steel.
