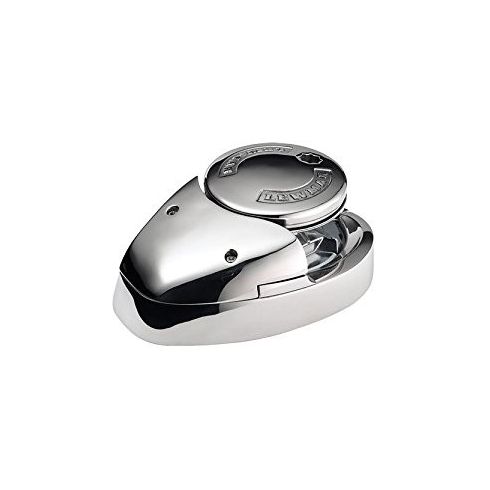

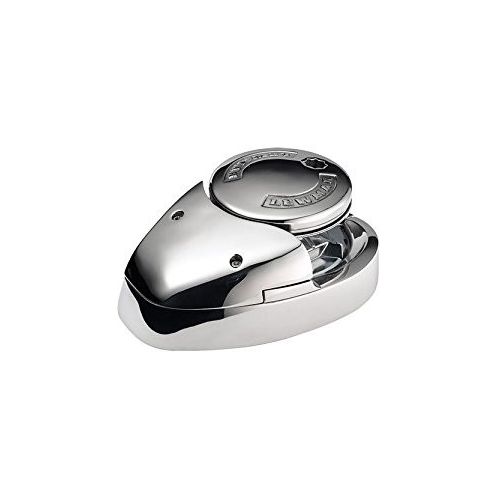

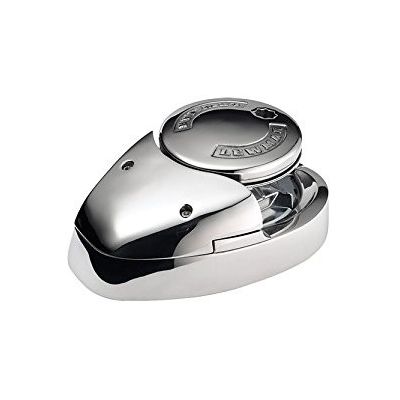

Lewmar V2G Vertical Windlass (Gypsy) - For Boats 30 - 40 Ft., Max Pull: 650 lbs.
LEWMAR V2G Vertical Windlass (Gypsy) - Compact vertical stainless steel windlass for power & sailboats. Beautifully styled deck unit conceals a robust, reliable, worm gearbox offering maximum strength & contol. Employ rope-chain or all-chain anchor rodes with touch of a button. 700 W Motor. Max Pull: 650lbs. Stainless Steel. For boats 30 - 40 ft. Select chain / rope size. *3 Year Warranty!
If Not In Stock - 10 Days Processing Time
Reference: 6672011110-138
In Stock: 2
Regular Price:
$2,501.09
Boat Show Special:
$2,376.04
Boat Show Special 5% OFF Sitewide
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Reliable Anchoring with the Lewmar V2G 700W Windlass
The Lewmar V2G Vertical Windlass (Gypsy) is a beautifully styled, compact vertical windlass constructed from durable stainless steel. Designed for both powerboats and sailboats ranging from 30 to 40 feet, this deck unit conceals a highly robust and reliable worm gearbox, offering maximum strength and control in demanding marine environments.
Versatile Anchoring Options
The V2G allows boaters to effortlessly employ rope-chain or all-chain anchor rodes with the simple touch of a button. Driven by a powerful 700-watt motor, it provides a maximum pull capacity of 650 lbs, ensuring secure and efficient anchor retrieval. (Note: Please select your required chain and rope size configuration when ordering).
V2G Vertical Windlass Features:
- Compact V2G Windlass
- Vertical Electric Windlass
- 700 W Motor
- Maximum Pulling Power 650lbs
- Emergency Recovery Kit
- Manual Override & Chain Release
- Made of Stainless Steel
- Windlass Gypsy 3/8" G4 Chain 5/8 " Line or Windlass Gypsy 5/16" G4 Chain 1/2 " Line
- Rope-Chain Gypsy
- W.A.R.P Drum
- Cone Clutch for Smooth, Easy Control
- Fall Safe Anchor Lock
- FastFit Option: For Quicker Installation & Less Hassle
- For Boats Up To 28 to 40 ft
- CE Approved
Includes:
Windlass
Circuit Breaker
Handle
Rocker Switch
Dual-Direction Contactor
Circuit Breaker
Handle
Rocker Switch
Dual-Direction Contactor
Specifications:
|
Gypsy Number |
Chain Description |
Rope Description |
|
6672011108-138 |
10mm DIN 766, 9.5mm ISO, 5/16" G40, Campbell 3/8" S4 |
1/2 - 5/8 3-strand and 8-plait (5/8 only) |
|
6672011110-138 |
10mm ISO, Campbell 3/8" S3, 3/8" G80, 3/8" G40 |
1/2 - 5/8 3-strand and 8-plait (5/8 only) |
|
Power |
Motor Power |
Typical Max Pull |
Maximum Line Speed/min |
Working Load |
Normal Current Draw |
Line Speed/min |
Weight |
Circuit Breaker |
|
12V |
700W |
1433 |
69 |
358 |
80A |
46 |
36 |
90A |

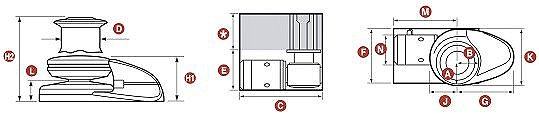

Dimensions:
|
D |
H1 |
H2 |
L |
A |
B |
C |
E |
F |
G |
J |
K |
M |
N |
|
3 |
3 9/16 |
6 5/8 |
1 9/16 |
2 3/8 |
2 3/4 |
12 3/16 |
6 13/16 |
6 5/16 |
6 3/16 |
2 3/4 |
6 5/16 |
9 1/8 |
4 1/4 |
FAQs
What size boat is the Lewmar V2G windlass designed for?
The Lewmar V2G is designed for both powerboats and sailboats ranging from 30 to 40 feet in length.
What is the maximum pulling power of the Lewmar V2G?
This specific V2G model features a 700W motor that delivers a maximum pulling power of 650 lbs.
What type of anchor rode can the Lewmar V2G handle?
The V2G is designed to employ either rope-chain or all-chain anchor rodes, allowing you to select the appropriate chain/rope size configuration for your specific anchoring setup.
What material is the Lewmar V2G constructed from?
The Lewmar V2G features a compact, beautifully styled deck unit made from durable stainless steel.
