Falkon Horizontal Anodized Windlass - 5/16",3/8",7/16",1/2" Gypsy/Chain Size - 1700W - Select Voltage
Lofrans' Falkon Horizontal Anodized Windlass. Tigres windlass is suitable for boats from 43 up to 59 feet offering the best performance and functionality. Falkon is ideal for large cruising vessels that anchor frequently with heavy offshore, all chain ground tackle. Once the rode is in place, back up your chain stopper with the included brake band. Voltage: 12V or 24V. Motor Wattage: 1700W. Gypsy/Chain Size: 5/16" (ALL), 3/8" (ALL), 7/16" (HT), 1/2" (HT-BBB)
Part Number: LW500AN (12V) - LW500AN/1 (24V)
Click here for details

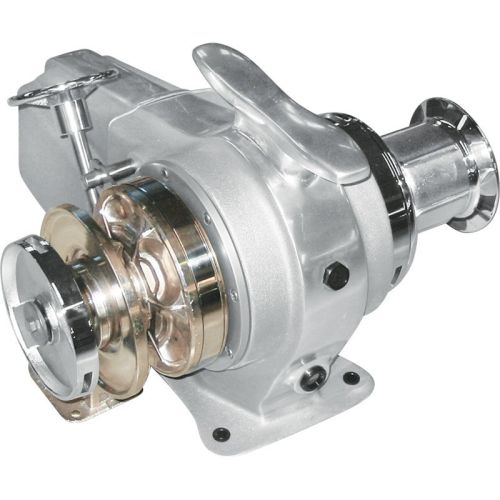

Lofrans' Falkon Horizontal Anodized Windlass - 1700W - 12V or 24V
Lofrans' Falkons Horizontal Anodized Windlass. Falkon is ideal for large cruising vessels that anchor frequently with heavy offshore, all chain ground tackle. Once the rode is in place, back up your chain stopper with the included brake band. Ideal windlass for boats from 43' to 59'. Voltage: 12V or 24V. Motor Wattage: 1700W. Gypsy/Chain Size: 5/16" (ALL), 3/8" (ALL), 7/16" (HT), 1/2" (HT-BBB).
Lofrans' horizontal anchor windlasses are produced by using marine grade aluminum alloy. The body is polished and anodized. Most of the components are made by hot forging. The horizontal models are available as the standard version, in anodized aluminum. Some models are available with a painted white polyester coating.
Lofrans' electric motors are specified to provide the necessary power for a long run. They are also designed to operate at high speed, so as to reduce the operations time. Titan, Ercole, and Super Ercole are also available in hydraulic motor versions. Also, windlasses are supplied with manual override which makes the windlass capable of chain recovery in the case of electrical failure. The manual override has the secondary function to provide a safety mechanism so that chain jams do not damage the deck.
Key Features
- Marine aluminum anodized body
- Independent Gypsy and drum operation
- Manual chain release
- Manual override
- Heavy duty rated IP66 electric motor
- Control Box included in package
Specifications FOR LW500AN - LW500AN/1
| Finish | Anodized |
| Power Rating | 2600 lbs (12V) - 2700 lbs (24V) |
| Motor Wattage | 1700W |
| Power Supply | 12V - 24V |
| Approx. Amp Draw | 90-135 (12V) - 50-70 (24V) |
| Max Retrieval Speed (ft/min.) | 60 |
| Chain Size/Type | 5/16" (ALL), 3/8" (ALL), 7/16" (HT), 1/2" (HT-BBB) |
| Rope Sizes | 1/2"-3/4" (Rope Drum) |
| Approximate Ship Weight (lbs) | 103 |
Standard Equipment
- Two footswitches
- Watertight control box
- Clutch/manual operation handle
Dimensions
