Lewmar H2G 12V Stainless Steel Horizontal Windlass | 1433lb Pull
A stylish 12V stainless steel horizontal windlass for boats up to 48ft, featuring a 700W motor, worm gearbox, and 1433lb max pull for 5/16" G4 chain. *3 Year Warranty!
If Not In Stock - 10 Days Processing Time
Reference: 69600533
In Stock: 1
Regular Price:
$2,338.34
Boat Show Special:
$2,221.42
Boat Show Special 5% OFF Sitewide
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Reliable and Stylish Lewmar H2G Horizontal Windlass

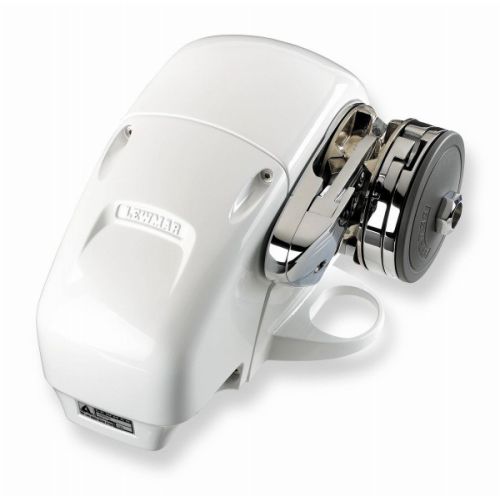

The Lewmar H2G Windlass (Gypsy) is part of the stylish, horizontal H-Series line of marine anchoring systems. Designed for boats up to 48 feet, this robust 12-volt windlass utilizes highly reliable worm gearbox technology to deliver a maximum pulling power of 1,433 lbs.
Durable and Easy to Install
Constructed with a durable stainless steel housing, the H2G is engineered for longevity and minimal maintenance in harsh marine environments. It features a simplified wiring setup and a waterproof seal, ensuring that it is incredibly easy to install so you can get started quickly. This "gypsy only" model is perfectly configured to handle 8mm or 5/16" G4 chain, alongside 9/16" to 5/8" anchor line.
H2G Windlass Features:
- H Series Horizontal Windlass
- 700 W Motor
- Maximum Pulling Power: 1433 lbs
- Integral Contactor
- - Protected By Maincase
- Made of Stainless Steel
- Aluminium & Composite Maincase
- - For Reduced Weight
- Windlass 5/16" Gypsy
- Sealed Waterproof Unit
- Robust Horizontal Worm Motor-Gearbox
- Stainless Steel Warping Drum
- For Boats Up To 48 ft
Includes:
- Built in Dual Direction Contactor
- Circuit Breaker
- Rocker Switch
- Gypsy for 5/16" G4 Chain & 9/16"-5/8" Line
Specifications:
| Model | 69600533 |
| Voltage | 12V |
| Typical Power | 600 Watts |
| Typical Max Pull | 1433 Lbs |
| Max Line Speed | 69 ft |
| Working Load | 358 Lbs |
| Normal Current Draw | 80A |
| Typical Line Speed | 56 ft |
| Weight | 47 Lbs |
| Circuit Breaker | 90A |
| Dimensions | 8-5/16"H x 14-3/8"L x 10-3/4"W |
FAQs
How do I calculate what size windlass I need for my boat?
To find the correct windlass size, add the total weight of your anchor and your chain together, then multiply that number by 4. This final calculated number must be less than the maximum pull capacity of the windlass you select for safe cruising. If your total is at or above the maximum pull, you should upgrade to the next largest windlass model. (Note: Rope weight is extremely light and generally does not affect lifting performance).
Can I leave my boat anchored using just the windlass to hold the load?
No. A windlass is strictly a retrieval device designed to lift the anchor, not a high load-bearing device. When your boat is at anchor, you must always secure your anchor rode to a cleat or another dedicated mooring point on the bow to prevent severe damage to the windlass.
Why is my anchor rode jamming when being retrieved by the windlass?
The windlass itself does not physically stow the anchor rode; it relies purely on gravity to drop the rode into the anchor locker. If there is not a free and clear area directly under the hawse pipe for the incoming rode to fall into, the line will back up and jam the windlass system.
What size boat is the Lewmar H2G windlass designed for?
The Lewmar H2G horizontal windlass is designed to handle anchoring for boats up to 48 feet in length.
What size chain and line does the Lewmar H2G use?
This specific H2G gypsy model is configured to fit 8mm or 5/16-inch G4 chain, and 9/16-inch to 5/8-inch anchor line.
What is the maximum pulling power of the Lewmar H2G 12V windlass?
Driven by a 700W motor, the Lewmar H2G delivers a maximum pulling power of 1,433 lbs.
Is the Lewmar H2G a vertical or horizontal windlass?
The Lewmar H2G is part of the stylish H-Series, which are horizontal windlasses.
