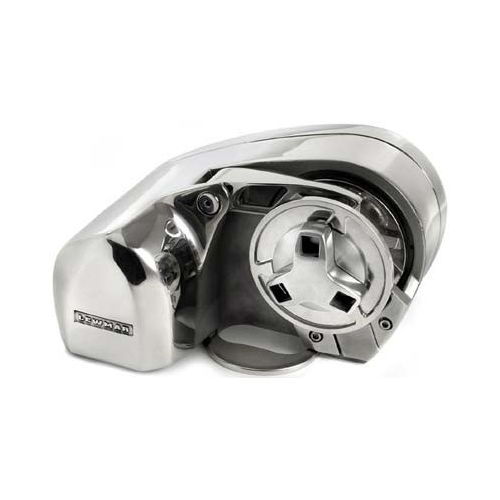

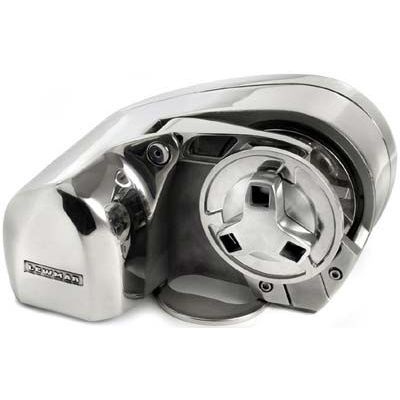

Lewmar Pro 1000H Stainless Steel Windlass | 1000lb Max Pull
A 100% 316 stainless steel windlass for boats 20-45ft, featuring a 700W motor, 1000lb max pull, manual recovery, and easy installation for 5/16" G4 chain.
*5 Year Warranty!
If Not In Stock - 10 Days Processing Time
Reference: 6657011108-102
In Stock: 7
Regular Price:
$1,311.45
Boat Show Special:
$1,245.88
Boat Show Special 5% OFF Sitewide
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Powerful 700W Windlass for Boats 20 to 45 Feet
The Lewmar Pro 1000H Windlass (Gypsy) is a powerful and reliable marine anchoring solution engineered specifically for boats ranging from 20 to 45 feet in length. Constructed entirely from 100% 316 stainless steel, this windlass provides exceptional durability and corrosion resistance, ensuring a long lifespan in harsh marine environments.
Powerful Performance and Easy Operation
Designed with easy installation in mind, the Pro 1000H seamlessly upgrades your boat's anchoring system. It is driven by a robust 700W motor capable of delivering a maximum pulling power of 1000 lbs. This gypsy-only unit is perfectly configured to handle rope and chain setups using 5/16" G4 chain and 9/16" line. For added safety and ease of use, the Pro-Series includes a built-in manual recovery system, giving you peace of mind if you ever need to retrieve your anchor manually.
Pro 1000H Windlass Features:
- Pro-Series Windlass
- Powerful Fast Line Speed Motor
- Maximum Pulling Power: 1000lbs
- 1/2"(12mm) Socket Wrench
- Made of 316 Stainless Steel Material
- 516 Gypsy For 5/16" G G4 Chain & 9/16" Line
- Convenient Above Deck Installation
- For Boats up to 20-45 ft
Includes:
- Windlass
- Base Gasket Seal
- Fast Mounting Studs
- Installation Wrench
- Rocker Switch
- Contactor & Circuit Breaker
Specifications:
|
Model |
6657011108-102 |
|
Voltage |
12V |
|
Typical Power |
700 Watts |
|
Typical Max Pull |
1000 Lbs |
|
Max Line Speed |
105 ft |
|
Working Load |
250 Lbs |
|
Normal Current Draw |
50A |
|
Typical Line Speed |
88 ft |
|
Weight |
21 Lbs |
|
Circuit Breaker |
70A |
|
Dimensions |
5-3/4" H x 9-5/8" L x 7" W |
FAQs
What size boat is the Lewmar Pro 1000H windlass designed for?
The Lewmar Pro 1000H windlass is designed to handle anchoring for boats ranging from 20 to 45 feet in length.
What is the maximum pulling power of the Lewmar Pro 1000H?
Powered by a 700W motor, the Lewmar Pro 1000H delivers a robust maximum pulling power of 1000 lbs.
What size chain and line does the Lewmar Pro 1000H use?
This windlass is configured to perfectly fit 5/16-inch G4 chain and 9/16-inch anchor line.
What material is the Lewmar Pro 1000H windlass made from?
The Lewmar Pro 1000H is constructed from 100% 316 stainless steel for maximum durability and corrosion resistance.
Does the Lewmar Pro 1000H have a manual override?
Yes, for additional ease of use and safety, the Pro 1000H features a built-in manual recovery system.
