Lewmar V1 12V Stainless Steel Vertical Windlass w/ FastFit
A compact, 12V stainless steel vertical windlass for 28-40ft boats, featuring FastFit installation, a 1000lb max pull, and manual free-fall capability.
*3 Year Warranty!
Reference: 6671011108-138
Out of Stock
Regular Price:
$1,903.64
Boat Show Special:
$1,808.46
Boat Show Special 5% OFF Sitewide
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Lewmar V1 12V Stainless Steel Vertical Windlass w/ FastFit

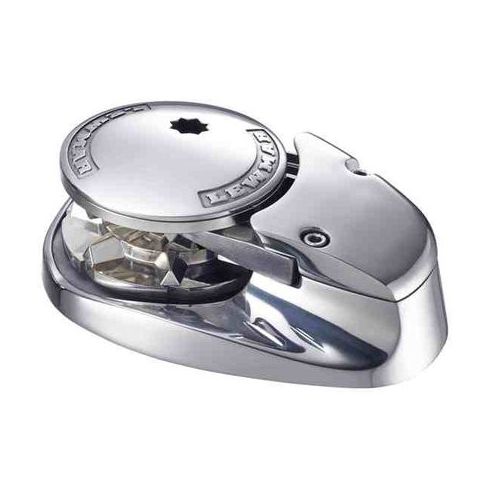

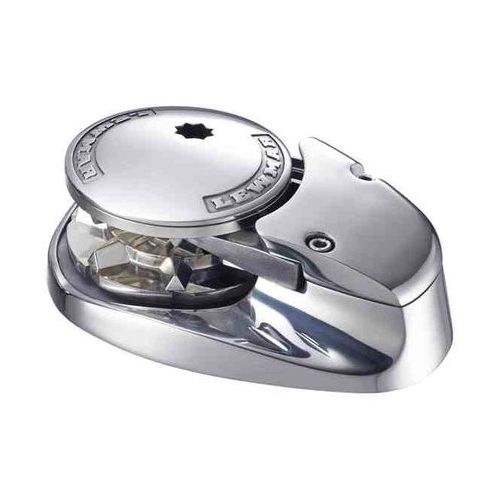

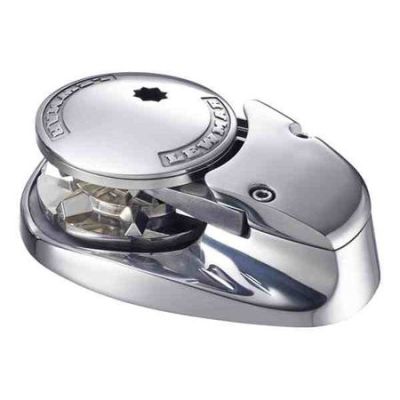

The Lewmar V1 Vertical Windlass (Gypsy) is the world's first compact, all-stainless-steel vertical windlass designed for both powerboats and sailboats ranging from 28 to 40 feet. This beautifully styled deck unit conceals a highly robust and reliable worm gearbox, delivering maximum strength and smooth control for your anchoring system. With the touch of a button, the V1 seamlessly deploys and retrieves rope-chain or all-chain anchor rodes.
FastFit™ Installation System
Upgrading your boat's windlass is quicker and less stressful thanks to Lewmar's FastFit™ system. FastFit ensures hassle-free installation by providing proper drive shaft alignment between the motor gearbox and the deck unit on the first try.
Durable and Controlled Anchoring
The V1 features a fully machined, low-profile rope-chain gypsy that keeps your lines in excellent condition. It utilizes a cone clutch for smooth operation, a W.A.R.P. drum design for rope management, and a manual override with a chain release function (Free Fall) for emergencies or rapid deployment. For added safety, the system includes a Fall Safe anchor lock.
Lewmar's NEW super-compact V1 is FastFit equipped. Fastfit ensures quick, hassle-free installation and proper drive shaft alignment. and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come. Lewmar 6671011107-138 brings 1/4" Chain and 1/2" Rope / Line, Lewmar 6671011108-138 brings 5/16" Chain and 9/16" Rope / Line.
Technical Specifications
| Brand | Lewmar |
| Model | 28 - 40 ft |
| Boat Size Compatibility | 28 - 40 ft |
| Voltage | 12V Motor |
| Power | 700 Watts |
| Max Pulling Power | 1000 Lbs |
| Working Load | 250 Lbs |
| Max Line Speed | 65 ft/min |
| Typical Line Speed | 43 ft/min |
| Normal Current Draw | 80A Recommended Circuit |
| Breaker | 90A |
| Weight | 36 Lbs |
| Material | Stainless Steel Deck Unit |
| Warranty | 3-Year Manufacturer Warranty |
Available Configurations:
MPN 6671011107-138: Fits 1/4" Chain and 1/2" Rope / Line
MPN 6671011108-138: Fits 5/16" G4 Chain and 9/16" Rope / Line
What's in the Box:
- Lewmar V1 Windlass Deck Unit & Motor Gearbox
- Dual-Direction Contactor
- 90A Circuit Breaker
- Guarded Rocker Switch
- Manual Override Handle
FAQs
What size boat is the Lewmar V1 windlass designed for?
The Lewmar V1 vertical windlass is designed for both powerboats and sailboats ranging from 28 to 40 feet in length.
What is the maximum pulling power of the Lewmar V1?
The Lewmar V1 12V windlass has a robust 700-watt motor that delivers a maximum pulling power of 1,000 lbs and a working load of 250 lbs.
What is included with the Lewmar V1 windlass kit?
The V1 kit includes the windlass (deck unit and gearbox), a dual-direction contactor, a 90-amp circuit breaker, a rocker switch, and a manual override handle.
What size chain and rope does the Lewmar V1 windlass use?
The Lewmar V1 is available in two configurations: MPN 6671011107-138 handles 1/4" chain and 1/2" line, while MPN 6671011108-138 handles 5/16" G4 chain and 9/16" line.
Does the Lewmar V1 have a free fall feature?
Yes, the Lewmar V1 features a manual override and chain release mechanism that allows for free-fall anchor deployment.
