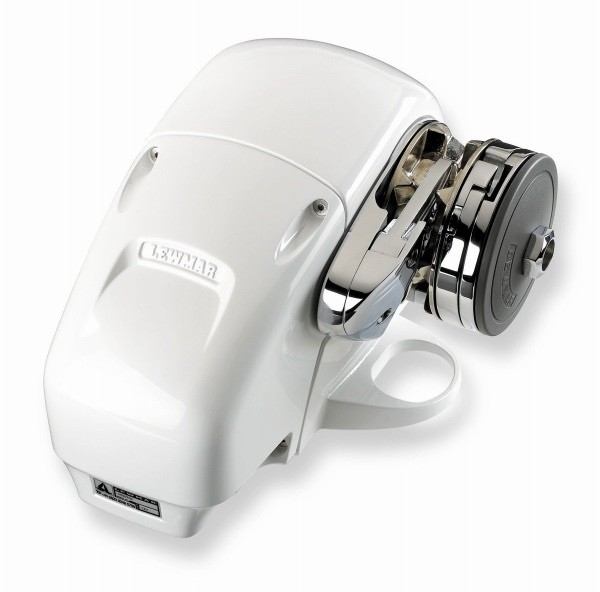

Lewmar H3G Windlass (Gypsy) 12v RC8MM - For Boats Up to 55 Ft., Max Pull: 1962 lbs.
The Lewmar H3G Windlass is part of the stylish, horizontal H-Series Windlasses that use reliable worm gearbox technology. Simplified wiring, waterproof seal, minimal maintenance, and easy to install and get started quickly. 1000 W Motor. Stainless steal. Maximum Pulling Power: 1962 lbs. Windlass Gypsy 5/16" Chain. For boats up to 15m (55ft). *3 Year Warranty!
If Not In Stock - 10 Days Processing Time
Mfg. #: LEW69600541
Reference: 69600541
In Stock: 1
Regular Price:
$2,631.29
Boat Show Special:
$2,499.73
Boat Show Special 5% OFF Sitewide
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Lewmar H3G Windlass 12v RC8MM (5/16) Gypsy 69600541
The Lenwar H3G Windlass is a latest generation 'H Series' of horizontal windlasses. The contactor is integral to the deck unit. This saves valuable installation time as it reduces the number of components in the system. In addition the contactor is protected. This has now been combined with a stylish, low profile design that takes up the minimum of valuable foredeck area. The electro-polished stainless steel rode management system will handle both rope and chain. Dual direction operation gives total control when both raising and lowering.
H3G Windlass Features:
- H Series Horizontal Windlass
- 1000 W Motor
- Maximum Pulling Power: 1962 lbs
- Integral Contactor: Protected By Maincase
- Made of Composite & Aluminum
- Windlass Gypsy 5/16" Chain
- Sealed Waterproof Unit
- Robust Horizontal Worm Motor-Gearbox
- Stainless Steel Warping Drum
- For Boats Up To 30-55 ft
Includes:
- Built in Dual Direction Contactor
- Circuit Breaker
- Rocker Switch
- Gypsy 5/16" Chain
Specifications:
| Model | 69600541 |
| Voltage | 12V |
| Typical Power | 1000 Watts |
| Max Pull | 1962 Lbs |
| Max Line Speed | 92 ft |
| Working Load | 475 Lbs |
| Normal Current Draw | 85A |
| Typical Line Speed | 59 ft |
| Weight | 52 Lbs |
| Circuit Breaker | 110A |
| Dimensions | 8-5/16" H x 14-3/8" L x 10-3/4" W |
FAQs
What size boat is the Lewmar H3G windlass designed for?
The Lewmar H3G horizontal windlass is designed to handle anchoring for boats up to 55 feet (15 meters) in length.
What is the maximum pulling power of the Lewmar H3G?
Powered by a robust 1000W motor, the 12V Lewmar H3G delivers a maximum pulling power of 1,962 lbs and a standard working load of 475 lbs.
What size chain does the Lewmar H3G (69600541) gypsy handle?
This specific Lewmar H3G model is equipped with a gypsy configured to handle 5/16-inch (8mm) chain.
What is the advantage of the Lewmar H3G's integral contactor?
The dual-direction contactor is built directly into the main deck unit rather than requiring a separate mounting location. This protects the contactor from the elements inside the maincase, saves valuable installation time, and reduces the number of separate components in the system.
What comes included with the Lewmar H3G windlass kit?
This windlass kit (MPN: 69600541) includes the windlass unit with the built-in dual-direction contactor, a 5/16" chain gypsy, a circuit breaker, and a rocker switch.
