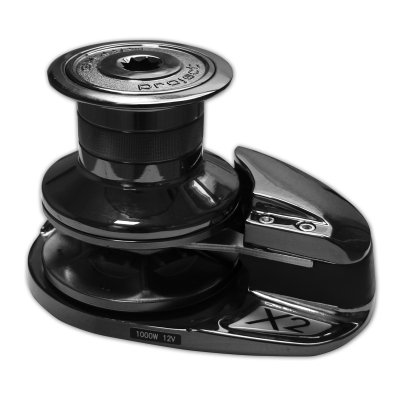

Lofrans Project 1000 Capstan Windlass – 1000W 12VDC Dark Chrome

Name: Lofrans Project 1000 Capstan Windlass – 1000W 12VDC Dark Chrome
Brand: Citimarine Store
SKU: LW7921CDV-5/16
Price: 2790 USD
Availability: InStock

The Lofrans Project 1000 Capstan Windlass combines premium styling, powerful anchoring performance, and advanced rope/chain handling technology in a compact vertical windlass design. Featuring a 1000W high-torque series-wound motor, the Project 1000 delivers fast anchor deployment and reliable retrieval for vessels from approximately 30 to 45 feet. Ships in 11- 12 Weeks

Reference: LW7921CDV-5/16

Regular Price: $2,790.00

CPlus Price: $2,650.50

What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!*

International Shipping Calculator

Return Policy

This Dark Chrome Capstan Version features a durable chromed bronze finish, stainless steel rope/chain gypsy, and integrated Rope/Chain Management System to ensure smooth handling of combination rodes. The vertical capstan design allows independent operation of the gypsy and capstan, providing versatility for anchoring and line-handling applications.

Designed for reliability in demanding marine environments, the Project 1000 incorporates a marine anodized aluminum gearbox, stainless worm drive transmission, IP67 motor protection, and a built-in manual override system for emergency operation.

Key Features

Powerful 1000W high-torque series-wound motor
12VDC operation
Vertical capstan windlass configuration
Premium dark chrome (chromed bronze) finish
Stainless steel rope/chain combination gypsy
Independent gypsy and capstan operation
Integrated Rope/Chain Management System
Spring-loaded rope/chain management arm
Built-in manual chain release
Emergency manual override capability
Chain counter magnet pre-installed
Special watertight stainless steel ball bearing base
IP67 motor protection cover
Marine anodized aluminum gearbox
Stainless worm drive gearbox

Standard Equipment Included

Watertight Solenoid Control Box
(2) Covered Foot Switches
Manual Override / Clutch Handle
Rope/Chain Management System
Pre-installed Chain Counter Magnet

Benefits

Powerful Anchoring Performance

The high-torque 1000W motor delivers immediate lifting power and fast anchor deployment for dependable anchoring operations.

Versatile Capstan Design

Independent operation of the capstan and gypsy allows the windlass to be used for both anchoring and line-handling tasks.

Emergency Manual Operation

Built-in manual override and chain release systems provide peace of mind should electrical power become unavailable.

Premium Marine Construction

Manufactured with marine-grade materials including chromed bronze, stainless steel, and anodized aluminum for long-term corrosion resistance.

Specification	Details
Model	Project 1000
Part Number	LW7921CDV-5/16
Manufacturer Part No.	636755
Voltage	12VDC
Motor Power	1000W
Version	Vertical Capstan
Finish	Chromed Bronze (Dark Chrome)
Working Load	330 lbs (150 kg)
Gearbox Type	Stainless Worm Drive
Main Shaft	Stainless Steel
Max Retrieval Speed	130 ft/min
Retrieval Speed @ Working Load	65 ft/min (20 m/min)
Current Draw @ Working Load	120A
Deck Thickness	25–40 mm (1”–1-9/16”)
Approximate Boat Size	30–45 ft
Manual Override	Yes
Approximate Weight	55 lbs
Motor Protection	IP67
Rope/Chain Management	Spring Loaded Arm
