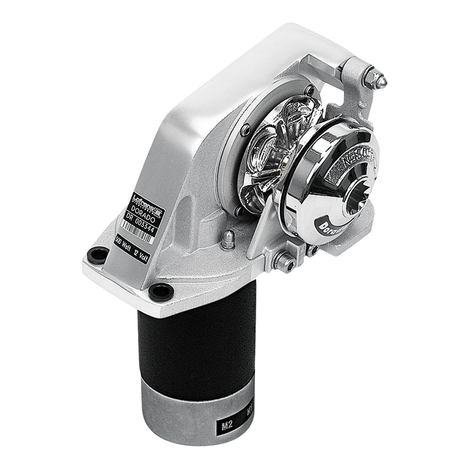

Dorado Horizontal Anodized Windlass - 1/4" HT - 500W - 12V
Lofrans' Dorado Horizontal Anodized Windlass. Dorado’s vertically-mounted motor and small profile are ideal for boats with restricted anchor lockers. Ideal windlass for boats up to 32'. Voltage: 12V. Motor Wattage: 500W. Gypsy/Chain Size: 1/4" (HT)
Part Number: LW275AN
Free US Shipping
Part Number: LW275AN
Free US Shipping
Reference: LW275AN
Reg Price: $1,476.00
CPlus Price:
$1,328.40
What is Citimarine Plus Membership?
Click here for details
Click here for details
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Lofrans' Dorado Horizontal Anodized Windlass - 500W - 12V
Lofrans' Dorado Horizontal Anodized Windlass. Dorado’s vertically-mounted motor and small profile are ideal for boats with restricted anchor lockers. Ideal windlass for boats up to 32'. Voltage: 12V. Motor Wattage: 500W. Gypsy/Chain Size: 1/4" (HT)
Lofrans' horizontal anchor windlasses are produced by using marine grade aluminum alloy. The body is polished and anodized. Most of the components are made by hot forging. The horizontal models are available as the standard version, in anodized aluminum. Some models are available with a painted white polyester coating.
Lofrans' electric motors are specified to provide the necessary power for a long run. They are also designed to operate at high speed, so as to reduce the operations time. Titan, Ercole, and Super Ercole are also available in hydraulic motor versions. Also, windlasses are supplied with manual override which makes the windlass capable of chain recovery in the case of electrical failure. The manual override has the secondary function to provide a safety mechanism so that chain jams do not damage the deck.
Key Features
- Marine aluminum anodized body
- Manual chain release
- Rope chain management by the spring load arm
- Heavy duty rated IP66 electric motor
- Automatic free fall available as an option
- Control Box included in package
Specifications For LW275AN
| Finish | Anodized |
| Power Rating | 970 lbs |
| Motor Wattage | 500W |
| Power Supply | 12V |
| Approx. Amp Draw | 30-60 |
| Max Retrieval Speed (ft/min.) | 69 |
| Chain Size/Type | 1/4" (HT) |
| Rope Sizes | 1/2" (Rope Drum) |
| Approximate Ship Weight (lbs) | 22 |
Standard Equipment
- Watertight control box
- Clutch release handle
- Neoprene mounting gasket

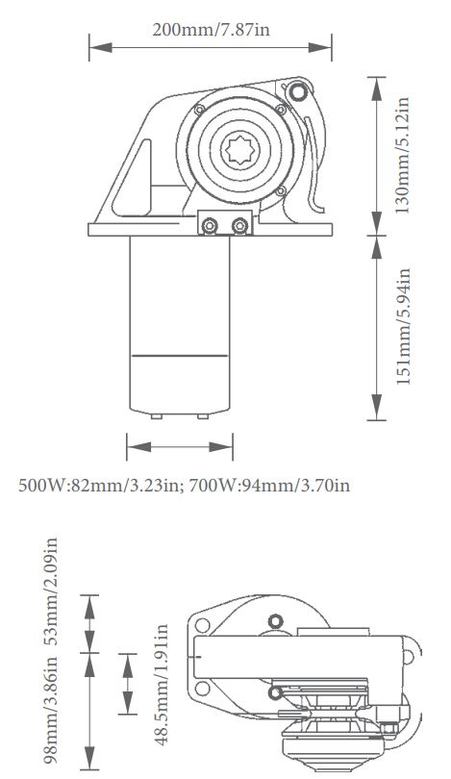

Dimensions
