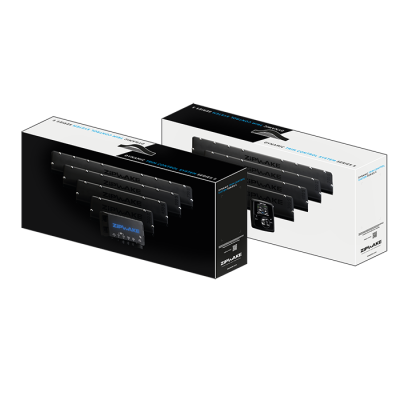

Zipwake Series E Chine Kit Box 400 - 15.74" (400mm)
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 6m power cable, 1...
Reference: ZW2012274
In Stock: 1
$6,520.80
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
 |
Series E · Dynamic Trim Control System Series E Chine Kit Box 400 - 15.74" (400mm) Series E · for boats up to 100 ft · Part no. ZW2012274 |
Everything in one box — interceptors, distribution unit, control panel and all cabling
Zipwake trims your boat for you. Two fast-acting interceptors drop into the water flow at the transom and correct pitch and roll continuously — 5 to 10 times faster than conventional trim tabs, and in a fraction of the transom space. This Series E Kit Box is a complete system in one part number.
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 6m power cable, 1 integrator module with 15m standard cable). Any base installation can be expanded with one center-mounted Series E interceptor or up to two Series S interceptors, without any need for additional connectors or power supply.
|
Watch it work How Zipwake keeps your boat level |
What’s in the box
Four components, one part number — nothing else to source.
 2 × Interceptors Series E blades with cables and cable covers |
 Distribution Unit Built-in GPS, 3D gyro and accelerometer, power cable |
 Control Panel E Colour display, auto and manual modes |
 Cabling & Covers M12 5-pin connectors throughout — plug together |
Specifications
| Max Boat Speed | 60 knots |
| Blade Stroke | 60 mm (2.4 in) |
| Blade Rate | 40 mm/s (1.6 in/s) |
| Part Number | ZW2012274 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously with no input from you. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, so they react far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
 |
 |
| Automatic roll and pitch correction underway | Control panel at the helm — auto mode, manual override, trim offset |
|
Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel, with automatic and manual modes available from the control panel. |
