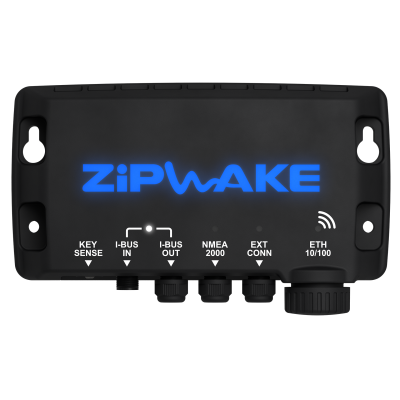

Zipwake MFD Integrator Module for Series S & Series E
Interface module that lets a Zipwake Series S or Series E Dynamic Trim Control System be controlled and monitored from a compatible multifunction display (MFD) at the helm.
Reference: ZW2012241
In Stock: 12
$1,698.40
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
 |
Zipwake · Controls & Interface MFD Integrator Module for Series S & Series E Series E · for boats up to 100 ft · Part no. ZW2012241 |
Helm-side control for your Zipwake system. It connects to the distribution unit over the system cable and gives you automatic trim, manual override and setup in one place.
SEAMLESS INTEGRATION
Create your perfect set-up. The Integrator Module seamlessly connects the Zipwake system to multiple MFDs from different manufacturers – and even connects wirelessly to smart devices – keeping dashboards free of clutter. But it also offers the flexibility of connecting up to 3 control panels for operation via control wheels in addition to touch screens. A CAN interface enables further external system integration.
|
Watch it work How Zipwake keeps your boat level |
Specifications
| Voltage | 12-32VDC |
| Power Consumption | 4.0W |
| Operating Temperature | -4° to +185°F (-20° to +85°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC, SAE J1171 IGNITION PROTECTED |
| Ingress Protection Rating (IP) | IP65+ |
| Part Number | ZW2012241 |
Key features
|
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously with no input from you. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, so they react far quicker than hinged tabs. |
|
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
|
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
At the helm
|
Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel, with automatic and manual modes available from the control panel. |
