Zipwake Kit Box 300 S - 11.81" (300mm) Dynamic Trim Control System
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power cable and 1...
Reference: ZW2011145
In Stock: 105
$2,851.20
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
 |
Series S · Dynamic Trim Control System Kit Box 300 S — 11.81" (300 mm) Complete automatic trim system for boats up to 50 ft · Part no. ZW2011145 |

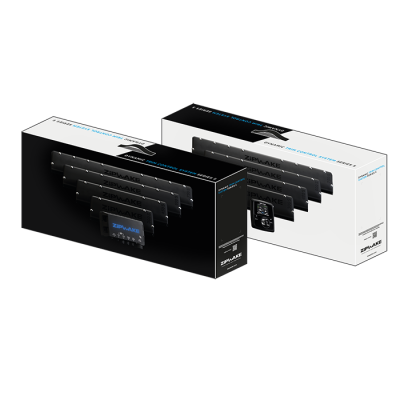

Everything in one box — two 300 mm interceptors, distribution unit, control panel and all cabling
Zipwake trims your boat for you. Two fast-acting interceptors drop into the water flow at the transom and correct pitch and roll continuously — 5 to 10 times faster than conventional trim tabs, and in a fraction of the transom space.
A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3 m cable and cable covers, 1 distribution unit with 4 m power cable and 1 control panel with 7 m standard cable). Any base installation can be expanded with up to two extra pairs of Series S interceptors, allowing a total of six interceptors without additional connectors or power supply.
|
Watch it work How Zipwake keeps your boat level |
What’s in the box
Four components, one part number — nothing else to source.
 2 × Interceptor 300 S 300 mm blades with 3 m cables and cable covers |

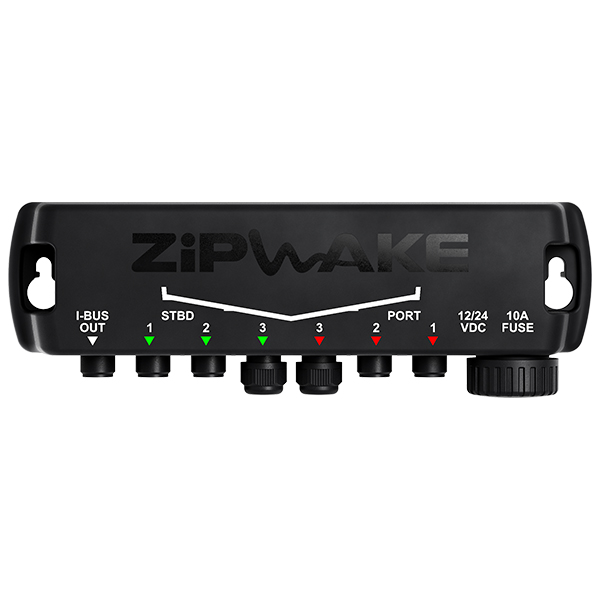

 Distribution Unit Built-in GPS, 3D gyro and accelerometer, 4 m power cable |

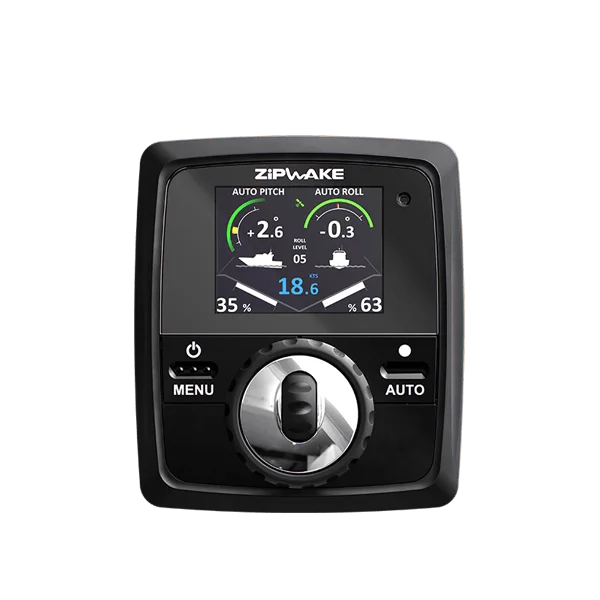

 Control Panel S Colour display, auto and manual modes, 7 m cable |
 Cabling & Covers M12 5-pin connectors throughout — plug together, no splicing |
Specifications
| Interceptor Size | 300 mm (11.81") |
| Series | Series S |
| Suits Boats | Up to 50 ft |
| Max Boat Speed | 60 knots |
| Blade Stroke | 1.2" (30 mm) |
| Blade Rate | 0.8 in/s (20 mm/s) |
| Servo Actuator | SU-S |
| Voltage | 12-32 VDC |
| Power Consumption | 25 W max |
| Ingress Protection | IP68, 16' (5 m) |
| Connector | M12 5-pin circular |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Cable Material | PUR |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Certifications | CE, FCC |
| Part Number | ZW2011145 |
Key features
Fully automatic Reads the boat’s motion with built-in GPS, 3D gyro and accelerometer, and trims continuously without input. |
5–10× faster Interceptor blades move vertically in 1.2" of travel — far quicker to respond than hinged trim tabs. |
Less transom space A 300 mm interceptor takes up a fraction of the area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Expandable to six Add up to two more pairs of Series S interceptors without extra connectors or power supply. |
IP68 sealed Rated to 16 ft (5 m) submersion, with PUR cabling and M12 connectors throughout. |
On the water, at the helm
 |
 |
| Automatic roll and pitch correction underway | Control Panel S — auto mode, manual override, list and trim offset |
|
Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel, with automatic and manual modes available from the control panel. |
