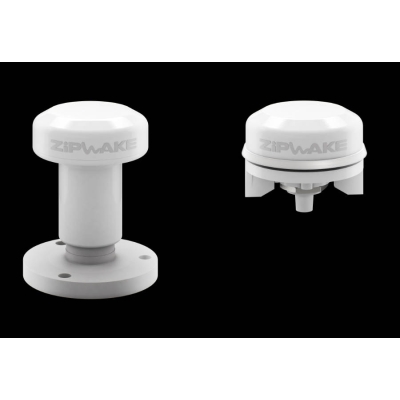

Zipwake GPS Antenna with 5m Cable & Mount Kit
The Zipwake external GPS antenna is a 5Hz, 20-channel receiver with excellent reception that provides accurate and rapid vessel position and speed updates. Vessel speed is a necessary input for the Zipwake’s automatic motion...
Reference: ZW2011240
$470.80
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
 |
Zipwake · Controls & Interface GPS Antenna with 5m Cable & Mount Kit Series S · for boats up to 50 ft · Part no. ZW2011240 |
Helm-side control for your Zipwake system. It connects to the distribution unit over the system cable and gives you automatic trim, manual override and setup in one place.
The Zipwake external GPS antenna is a 5Hz, 20-channel receiver with excellent reception that provides accurate and rapid vessel position and speed updates. Vessel speed is a necessary input for the Zipwake’s automatic motion controller. The antenna has a rugged construction, is fully waterproof and can be mast or surface mounted on any vessel.
The external GPS is optional and intended for use when no other strong GPS signal is available for the Zipwake system, e.g. when the vessel has just one helm station with a shielding top (canopy) and lacks other accessible GPS sources. In this case, the external GPS antenna is a good solution. Its 5 m cable can be extended up to 15 m using Zipwake extension cables. It connects easily to the connector marked EXT GPS on the back of the control panel. The external GPS can be connected to any control panel installed in the system.
|
Watch it work How Zipwake keeps your boat level |
Specifications
| Cable Material | White PVC |
| Connector | M12 5-pin circular |
| Cable Length | 5 m (16 ft) extendable to max 15 m (49 ft) |
| Power Consumption | 0.28 W, 55 mA (average) |
| Operating Temperature | -30° to +85°C (-22° to +185°F) |
| Storage Temperature | -40° to +95°C (-40° to +203°F) |
| Compliance | CE, FCC |
| Ingress Protection Rating (IP) | IP65+ |
| Part Number | ZW2011240 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously with no input from you. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, so they react far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
At the helm
|
Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel, with automatic and manual modes available from the control panel. |
