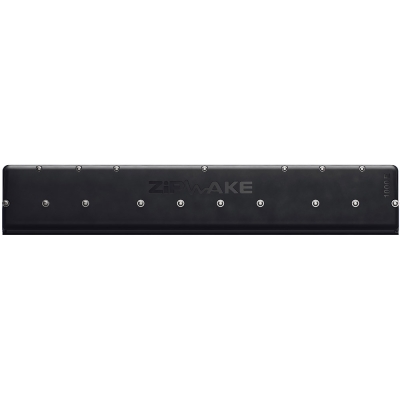

Zipwake Interceptor 1000 E with Cable Series E
Series E is a family of large, fast-acting interceptors that includes three straight, three tunnel and two chine models. Their blade rate and stroke are 40 mm/s and 60 mm respectively. The large, modular design made...
Reference: ZW2012020
In Stock: 4
$5,491.20
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
|
Series E · Interceptor Interceptor 1000 E with Cable Series E Part no. ZW2012020 |
The interceptor is where the work happens. A vertical blade on the transom drops into the water flow to generate instant lift, reacting 5 to 10 times faster than a hinged trim tab in far less transom space. This is a Series E unit.
Series E is a family of large, fast-acting interceptors that includes three straight, three tunnel and two chine models. Their blade rate and stroke are 40 mm/s and 60 mm respectively. The large, modular design made for mass production means the interceptors are durable, affordable and particularly well adapted to any planing or semi-planing boat between 50-100 ft.All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of two calibration-free submersible electric servos in the interceptor unit. Natural water cooling provides excellent working conditions for the brushless DC servo motors, which run on 12-32 volts. Installation is made easy with an integral mounting plate and the option of a concealed or above- waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable as shown below. Each interceptor comes with the thru-hull cable fitting, cable cover and a practical drill template.
Part Number: ZW2012020
How Zipwake keeps your boat level |
Specifications
| Max Boat Speed | 50 knots |
| Blade Stroke | 60 mm (2.4 in) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-E |
| Cable Material | PUR |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Ingress Protection | IP68 |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Series | Series E |
| Part Number | ZW2012020 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, reacting far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
| Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel. |
