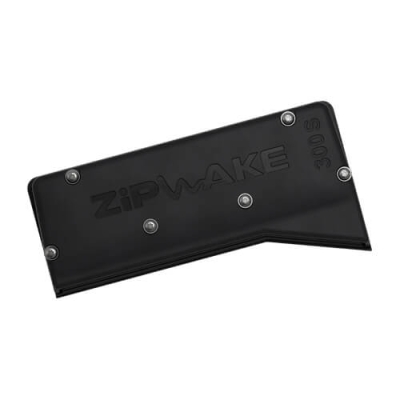

Zipwake Interceptor 300 S Chine Starboard - 11.81" (300mm)
Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor...
Reference: ZW2011703
In Stock: 3
$968.00
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
 |
Series S · Interceptor Interceptor 300 S Chine Starboard - 11.81" (300mm) Series S · for boats up to 50 ft · Part no. ZW2011703 |
Series S interceptor
The interceptor is where the work happens. A vertical blade mounted on the transom drops into the water flow to generate instant lift, reacting 5 to 10 times faster than a hinged trim tab while taking up far less transom space. This is a Series S unit.
Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors
| This is the starboard-side chine variant — shaped to follow the chine on the starboard side of the hull. Chine interceptors are handed, so order the matching port unit for a pair. |
|
Watch it work How Zipwake keeps your boat level |
Part of the Zipwake system
An interceptor works with a Zipwake distribution unit and control panel.
 This interceptor Blade unit with cable and cable cover |
 Distribution Unit Required — provides GPS, sensing and power |
 Control Panel Required — auto and manual trim control |
Specifications
| Certifications & Compliance | CE, FCC |
| Max Boat Speed | 60 knots |
| Blade Stroke | 1.2" (30mm) |
| Blade Rate | 0.8 in/s (20 mm/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-S |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Ingress Protection | IP68, 16' (5 m) |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Part Number | ZW2011703 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously with no input from you. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, so they react far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
 |
 |
| Automatic roll and pitch correction underway | Control panel at the helm — auto mode, manual override, trim offset |
|
Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel, with automatic and manual modes available from the control panel. |
