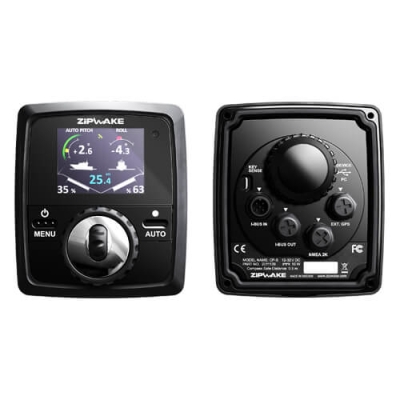

Zipwake Control Panel S with 7m Standard Cable
Zipwake’s stylish control panel is carefully designed to be user-friendly and intuitive to allow the driver to focus on the right thing – enjoying the boat ride!
Reference: ZW2011238
$1,201.20
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
 |
Zipwake · Controls & Interface Control Panel S with 7m Standard Cable Series S · for boats up to 50 ft · Part no. ZW2011238 |
Helm-side control for your Zipwake system. It connects to the distribution unit over the system cable and gives you automatic trim, manual override and setup in one place.
Zipwake’s stylish control panel is carefully designed to be user-friendly and intuitive to allow the driver to focus on the right thing – enjoying the boat ride!
The panel’s two unique control wheels provide easy, quick and intuitive manual control of running trim, heel or heading. However, the system normally operates in automatic control mode, which is enabled by a single press on the AUTO button. In this mode, the built-in high-frequency GPS, 3D gyro sensors and robust motion controller automatically ensure dynamic elimination of uncomfortable and dangerous boat pitch and roll.
|
Watch it work How Zipwake keeps your boat level |
Specifications
| Display | 2.4’’ Transflective color TFT, 320 x 240 pixels |
| Internal Sensors | 5 Hz GPS, 3D Gyro, 3D Accelerometer, Ambient light |
| Compass Safe Distance | 1.7" (0.5 mm) |
| Voltage | 12-32VDC |
| Power Consumption | 10W max |
| Ingress Protection | IP67/IP64 (front/back) |
| Operating Temperature | -4° to +185°F (-20° to +85°C) |
| Mounting Method | Flush or surface |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Part Number | ZW2011238 |
Key features
Fully automatic Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously with no input from you. |
5–10× faster than trim tabs Interceptor blades move vertically in a short stroke, so they react far quicker than hinged tabs. |
Less transom space An interceptor occupies a fraction of the transom area a comparable trim tab needs. |
Smoother, drier ride Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed. |
Plug-together install M12 5-pin connectors throughout — no splicing or custom looms. |
IP68 sealed Interceptors are rated to 16 ft (5 m) submersion with PUR cabling. |
At the helm
|
Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel, with automatic and manual modes available from the control panel. |
