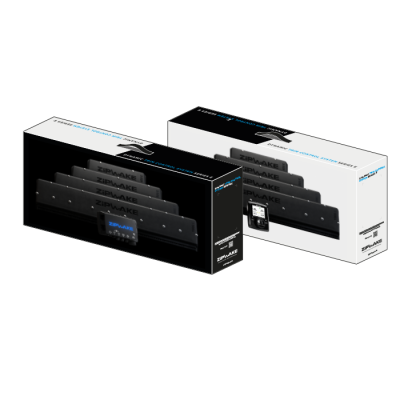

Zipwake Series E Kit Box 800 for Integration - 31.49" (800mm)

Name: Zipwake Series E Kit Box 800 for Integration - 31.49" (800mm)
Brand: Citimarine Store
SKU: ZW2012272
Price: 10832.8 USD
Availability: InStock

Reference: ZW2012272

In Stock: 1

$10,832.80

Quantity

Free US Shipping on This Item!*

International Shipping Calculator

Return Policy

Series E · Dynamic Trim Control System

Series E Kit Box 800 for Integration - 31.49" (800mm)

Series E · for boats up to 100 ft · Part no. ZW2012272

Zipwake Series E Kit Box 800 for Integration - 31.49" (800mm)

Everything in one box — interceptors, distribution unit, control panel and all cabling

Zipwake trims your boat for you. Two fast-acting interceptors drop into the water flow at the transom and correct pitch and roll continuously — 5 to 10 times faster than conventional trim tabs, and in a fraction of the transom space. This Series E Kit Box is a complete system in one part number.

A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 6m power cable, 1 integrator module with 15m standard cable). Any base installation can be expanded with one center-mounted Series E interceptor or up to two Series S interceptors, without any need for additional connectors or power supply.

This kit is supplied for integration — without a Zipwake control panel, so the system is driven from a compatible multifunction display or third-party interface.

Watch it work

How Zipwake keeps your boat level

What’s in the box

Four components, one part number — nothing else to source.

2 × Interceptors

Series E blades with cables and cable covers

Distribution Unit

Built-in GPS, 3D gyro and accelerometer, power cable

Control Panel E

Colour display, auto and manual modes

Cabling & Covers

M12 5-pin connectors throughout — plug together

Specifications

Max Boat Speed	50 knots
Blade Stroke	60 mm (2.4 in)
Blade Rate	40 mm/s (1.6 in/s)
Thru-Hull Cable Fitting	Concealed or above waterline
Servo Actuator	SU-E
Cable Material	PUR
Connector	M12 5-pin circular
Connector Diameter	0.57" (14.5 mm)
Voltage	12-32VDC
Power Consumption	25W max
Operating Temperature	+32° to +104°F (0° to +40°C)
Storage Temperature	-40° to +194°F (-40° to +90°C)
Compliance	CE, FCC
Ingress Protection Rating (IP)	IP65+
Part Number	ZW2012272

Key features

Fully automatic

Built-in GPS, 3D gyro and 3D accelerometer read the boat’s motion and trim continuously with no input from you.

5–10× faster than trim tabs

Interceptor blades move vertically in a short stroke, so they react far quicker than hinged tabs.

Less transom space

An interceptor occupies a fraction of the transom area a comparable trim tab needs.

Smoother, drier ride

Cuts pitch and roll, reduces wave resistance and saves fuel at cruising speed.

Plug-together install

M12 5-pin connectors throughout — no splicing or custom looms.

IP68 sealed

Interceptors are rated to 16 ft (5 m) submersion with PUR cabling.


Automatic roll and pitch correction underway	Control panel at the helm — auto mode, manual override, trim offset

Zipwake is a fully automatic Dynamic Trim Control System. Built-in GPS, a 3D gyro and a 3D accelerometer read the boat’s motion and correct pitch and roll continuously — reducing wave resistance, improving ride comfort and saving fuel, with automatic and manual modes available from the control panel.
