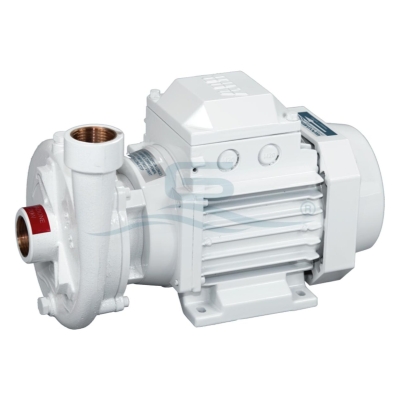

Gianneschi CB 22-95 Bronze Centrifugal Pump 230/400V 50Hz 3Ph 01CB22G303

A 0.37 kW three-phase bronze marine centrifugal pump with a 316 stainless steel shaft and 1-inch BSP ports for reliable freshwater and seawater circulation.

Part Number: 01CB22G303

Reference: 01CB22G303
Available Online: 1
Ft. Lauderdale: 0
Miami: 1
Regular Price: $1,738.74
CPlus Price: $1,651.80
What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!*
Available for Store Pickup!
International Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only

Marine Bronze Circulation with the Gianneschi CB 22-95 Pump 01CB22G303

The Gianneschi CB 22-95 (Reference / Catalog Number: 01CB22G303) is a marine-grade bronze centrifugal pump and motor unit engineered for high delivery rates at medium pressure with limited power consumption. Designed for continuous onboard fluid management, this model is suited for freshwater and seawater circulation, seawater feeding, and water pressure (WPS - Hydrofore) systems. The pump utilizes a bronze open impeller configuration capable of moving clean or slightly dirty liquids efficiently.

Bronze Wet End and 3-Phase Motor Performance

Constructed for corrosion resistance in marine environments, the wet end pairs a heavy-duty bronze pump casing and bronze impeller with a 316 stainless steel shaft. The unit is coupled to a 0.37 kW (0.5 HP), 2900 RPM, three-phase AC motor configured for 230/400V 50Hz electrical systems, featuring Class F insulation and IP 44/55 protection.

Plumbing Connections and Installation Requirements

While the broader CB series encompasses port sizes from 1/2-inch to 1-1/2-inch BSP (DN32 to DN65), this specific 01CB22G303 unit is equipped with 1-inch BSP threaded inlet and 1-inch BSP threaded outlet ports. Installing three-piece pipe unions at both the suction and discharge ports is recommended to simplify future maintenance. Because this centrifugal pump is not self-priming, it must be mounted below the waterline with flooded suction to prevent the casing from emptying. It is not suitable for pumping flammable fluids or for operation in explosion-hazard areas.

Technical Specifications

  • Brand: Gianneschi
  • Model: CB 22-95 (CB-22-95-230/400V)Reference / Catalog
  • Number: 01CB22G303
  • Product Type: Marine Centrifugal Pump
  • Applications: Freshwater (F.W.) and Seawater (S.W.) circulation, Seawater feeding, WPS - Hydrofore systems
  • Pump Casing Material: Bronze
  • Impeller Material & Type: Bronze (Open impeller on 01CB22G303; open or closed available across series)
  • Shaft Material: 316 Stainless Steel
  • Flow Range (US GPH): 238 – 1,585 GPH
  • Voltage: 230/400V AC
  • Frequency: 50HzPhase: 3-Phase (3Ph)
  • Motor Power: 0.37 kW (0.5 HP)
  • Motor Speed: 2900 RPM
  • Motor Protection & Insulation: IP 44/55 Protection, Class F Insulation
  • Port Size (01CB22G303): 1" BSP Threaded Inlet x 1" BSP Threaded Outlet (Series range: 1/2" to 1-1/2" BSP / DN32 to DN65, threaded or flanged)
  • Priming Type: Not self-priming (requires below-waterline installation)
  • Weight: 25 lbs

FAQs

Is the Gianneschi CB 22-95 centrifugal pump self-priming?

No, this unit is not self-priming and must be installed below the water level with flooded suction so the pump casing remains primed during operation.

What electrical supply is required for catalog number 01CB22G303?

This model requires a 230/400V AC, 50Hz, three-phase (3Ph) power supply to run its 0.37 kW (0.5 HP), 2900 RPM motor.

What fluids and applications is this bronze pump designed to handle?

Featuring a bronze casing, bronze open impeller, and 316 stainless steel shaft, it is designed for clean or slightly dirty liquids in freshwater and seawater circulation, seawater feeding, and hydrofore water pressure systems. It must not be used for flammable fluids or in explosion-hazard zones.

What size are the suction and discharge ports on the 01CB22G303 model?

This specific unit features a 1-inch BSP threaded inlet port and a 1-inch BSP threaded outlet port, and three-piece pipe unions are recommended on both ports for easier servicing.

What is the weight of the pump and motor assembly?

The complete CB-22-95-230/400V pump and motor unit weighs 25 lbs.
