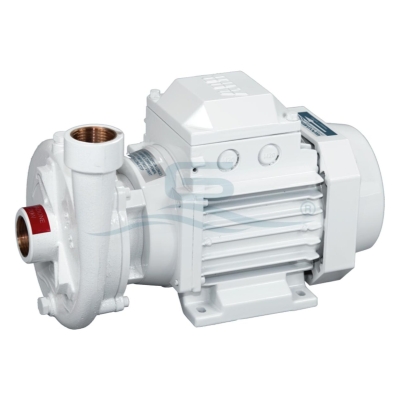

Gianneschi CB 20-87 Bronze Centrifugal Pump 230V 50/60Hz 1Ph 01CB20G122

An Italian-built 0.25 kW single-phase bronze marine centrifugal pump operating on 230V 50/60Hz power for air conditioning seawater circulation, deck washdown, and onboard water transfer.

Part number 01CB20G122.

Gianneschi

Reference: 01CB20G122
Available Online: 4
Ft. Lauderdale: 1
Miami: 3
Regular Price: $1,360.59
CPlus Price: $1,292.56
What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!*
Available for Store Pickup!
International Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only

Marine Bronze Circulation with the Gianneschi CB 20-87 Pump 01CB20G122

The Gianneschi CB 20-87 (Part Number / Reference: 01CB20G122) is a marine-grade bronze centrifugal pump built in Camaiore, Italy, by Gianneschi Pumps and Blowers. Engineered for dependable onboard fluid movement, this compact unit is suited for seawater circulation in marine air conditioning and refrigeration systems, deck washdown, and general water transfer on board.

Seawater-Resistant Bronze Construction and 0.25 kW Single-Phase Motor

Constructed to withstand seawater exposure, both the pump body and the impeller are manufactured in bronze for corrosion resistance. This specific configuration is driven by a 0.25 kW, 2-pole, single-phase (1Ph) electric motor rated for 230V AC operation across both 50Hz and 60Hz electrical systems.

Below-Waterline Installation Requirement

Because this centrifugal pump is not self-priming, it must be installed below the waterline in a flooded suction configuration. Mounting the unit below the water level keeps the pump casing primed and prevents dry running during operation.

Technical Specifications

  • Brand / Manufacturer: Gianneschi Pumps and Blowers (Camaiore, Italy)
  • Model: CB 20-87
  • Part Number / Reference Number: 01CB20G122
  • Product Type: Marine Bronze Centrifugal Pump
  • Voltage: 230V AC
  • Frequency: 50/60Hz
  • Phase: 1-Phase (1Ph / Single-Phase)
  • Power: 0.25 kW
  • Flow Range: up to 1,268 GPH
  • Poles: 2P (2-Pole)
  • Pump Body Material: Bronze
  • Impeller Material: Bronze
  • Priming Type: Not self-priming (install below the waterline with flooded suction)
  • Applications: Seawater circulation for air conditioning and refrigeration systems, deck washdown, and general onboard water transfer

FAQs:

Is the Gianneschi CB 20-87 centrifugal pump self-priming?

No, this unit is not self-priming and must be installed below the waterline with flooded suction so the pump casing stays primed during operation.

What electrical supply is required for part number 01CB20G122?

This model operates on a 230V AC, 50/60Hz, single-phase (1Ph) electrical supply and is equipped with a 0.25 kW, 2-pole motor.

What materials are used in the wet end for seawater resistance?

Both the pump body and the impeller are constructed in bronze to resist corrosion during marine seawater circulation.

What onboard systems is the CB 20-87 designed to serve?

It is designed for seawater circulation in marine air conditioning and refrigeration systems, deck washdown, and general water transfer on board.

Where is this marine pump manufactured?

The pump is manufactured in Camaiore, Italy, by Gianneschi Pumps and Blowers.
