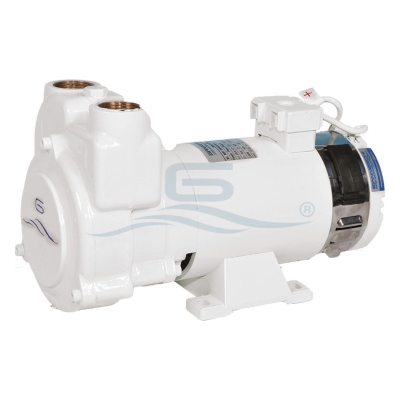

Gianneschi CP 26 Bronze Self-Priming Pump 230V 50/60Hz 1Ph 01ACP2602A1
An Italian-built 0.37 kW single-phase bronze self-priming liquid-ring pump with a low-speed 1450 RPM motor for reliable 230V 50/60Hz bilge, washdown, ballast, and fluid transfer service.
Part number 01ACP2602A1.

Click here for details
By buying this product you can collect up to 214 Citimarine points. Your cart will total 214 points that will be converted into a voucher of $21.40 towards your next purchase! Must be logged in to collect points.
Fast Self-Priming Marine Pumping with the Gianneschi CP 26 01ACP2602A1
The Gianneschi CP 26 (Part Number / Reference: 01ACP2602A1) is a compact, marine-grade bronze self-priming pump manufactured in Camaiore, Italy, by Gianneschi Pumps and Blowers. Utilizing a specialized side-channel and liquid-ring construction, this unit delivers fast self-priming capabilities and high performance within a compact footprint. It is engineered for versatile onboard duties including bilge pumping, deck washdown, general water transfer, ballast, grey water, freshwater and seawater circulation, seawater feeding, fire-fighting, and diesel oil transfer.

Bronze Wet End and Low-Speed 1450 RPM Single-Phase Motor
Built to withstand demanding marine environments, the pump pairs a heavy-duty bronze body and bronze impeller with a corrosion-resistant stainless steel shaft and a high-quality mechanical seal. This specific configuration is driven by a low-speed 1450 RPM, 0.37 kW, single-phase (1Ph) electric motor rated for 230V AC operation across both 50Hz and 60Hz electrical systems. Within the broader CP series, port sizes span from 3/4-inch to 1-1/2-inch BSP.

Technical Specifications
- Brand / Manufacturer: Gianneschi Pumps and Blowers (Camaiore, Italy)
- Model: CP 26
- Part Number / Reference Number: 01ACP2602A1
- Product Type: Marine Bronze Self-Priming Pump
- Pump Construction: Side-channel and liquid-ring construction
- Priming Type: Fast self-priming
- Voltage: 230V AC
- Frequency: 50/60Hz
- Phase: 1-Phase (1Ph / Single-Phase)
- Flow Range: 50Hz up to 951 GPG / 60Hz up to 1,189 GPH
- Power: 0.37 kW Motor Speed: 1450 RPM (Low-speed)
- Pump Casing Material: Bronze
- Impeller / Gear Material: Bronze
- Shaft Material: Stainless Steel
- Seal Type: High-quality mechanical seal
- Series Port Size Range: From 3/4" to 1-1/2" BSP
- Applications: Bilge, deck washdown, general onboard water transfer, ballast, diesel oil, Freshwater (F.W.) and Seawater (S.W.) circulation, fire-fighting, grey water, and seawater feeding

FAQs
Is the Gianneschi CP 26 pump self-priming?
Yes, the CP 26 features a side-channel and liquid-ring construction engineered specifically for fast self-priming operation.
What electrical supply and motor speed does part number 01ACP2602A1 use?
This model operates on a 230V AC, 50/60Hz, single-phase (1Ph) electrical supply and is driven by a low-speed 1450 RPM, 0.37 kW electric motor.
What materials are used in the construction of this pump?
The pump casing and impeller are made of bronze, paired with a stainless steel shaft and a high-quality mechanical seal for marine durability.
What onboard applications can the Gianneschi CP 26 handle?
It is suitable for bilge pumping, deck washdown, general water transfer, ballast, grey water, freshwater and seawater circulation, seawater feeding, fire-fighting, and diesel oil transfer.
Where is this marine pump manufactured?
It is built in Camaiore, Italy, by Gianneschi Pumps and Blowers.
