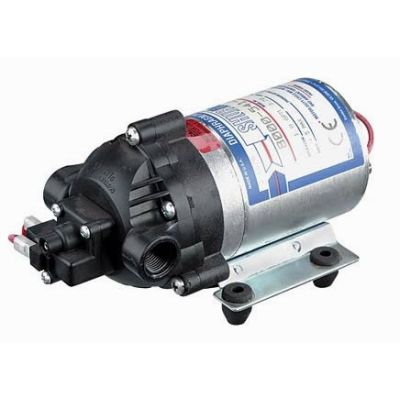

SHURFLO 8090-802-278 Diaphragm Pump 3 Chamber 1.42 GPM 230VAC
SHURFLO 8090-802-278 Diaphragm Pump 3 Chamber 1.42 GPM 230VAC - Intermittent Duty, 100 PSI Demand Switch (adjustable 80-100 PSI), Viton Valves, Santoprene Diaphragm, Nylon Housing, 3/8" NPT Female Ports, VDE Approved, Typical Application: Soil Extraction, Carpet Cleaning.
Reference: SF 8090-802-278
$237.45
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
SHURFLO 8090-802-278 Diaphragm Pump 3 Chamber 1.42 GPM 230VAC
SPECIFICATIONS:
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 2.5 Degree
MOTOR: Permanent Magnet, P/N 11-160-10, Thermally Protected
VOLTAGE: 230 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 80-100 PSI)
Factory Set @ 100 PSI, Turn On 85 PSI 5 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 7.0 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 4.8 Lbs (2.18 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Soil Extraction
APPROVALS: VDE Approved
SPECIFICATIONS:
PUMP DESIGN: Positive Displacement 3 Chamber Diaphragm Pump
CHECK VALVE: (2-Way Op.) Prevents Reverse Flow & 6 Ft. Head Forward Flow
CAM: 2.5 Degree
MOTOR: Permanent Magnet, P/N 11-160-10, Thermally Protected
VOLTAGE: 230 VAC Nominal
PRESSURE SWITCH: Adjustable Shut-Off (Range 80-100 PSI)
Factory Set @ 100 PSI, Turn On 85 PSI 5 PSI
LIQUID TEMPERATURE: 180 Degrees Fahrenheit (82 Degrees Centigrade) Max.
PRIME: Self-Priming Up To 7.0 Ft. Vertical,
Max. Inlet Pressure 30 PSI (2.1 Bar)
PORTS: 3/8"-18 NPT Female
MATERIAL OF CONSTRUCTION:
PLASTICS- Nylon
VALVES Viton
DIAPHRAGM- Santoprene
FASTENERS- Zinc Plated Steel
NET WEIGHT: 4.8 Lbs (2.18 Kg)
DUTY CYCLE: Intermittent (See Temperature Rise Chart)
TYPICAL APPLICATIONS: Soil Extraction
APPROVALS: VDE Approved
