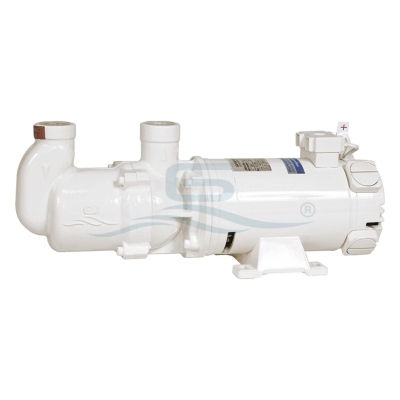

Gianneschi MV 44 Self-Priming Screw Pump 230V 50Hz 1Ph 01GMV342G

An Italian-built 0.55 kW single-phase self-priming bronze screw pump featuring a 316 stainless steel rotor and NBR floating stator for quiet, reliable 230V 50Hz black and grey water transfer.

Part number 01GMV342G.

Gianneschi

Reference: 01GMV342G
Available Online: 4
Ft. Lauderdale: 1
Miami: 3
Regular Price: $2,837.93
CPlus Price: $2,696.03
What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!*
Available for Store Pickup!
International Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only

Reliable Waste and Grey Water Handling with the Gianneschi MV 44 01GMV342G

The Gianneschi MV 44 (Reference: 01GMV342G) is a marine-grade, single-screw self-priming pump manufactured in Camaiore, Italy, by Gianneschi Pumps and Blowers. Specifically engineered for onboard sanitation and fluid management, this pump is built to handle both black/waste water and grey water applications while maintaining limited noise and vibration levels.

Bronze Casing and 316 Stainless Steel Screw Rotor Construction

Constructed for durability in demanding marine waste environments, the unit pairs a heavy-duty bronze pump casing with a stainless steel shaft, a 316 stainless steel (inox) screw rotor, and a high-quality NBR floating stator. It also incorporates an accurate mechanical joint made from 316 stainless steel and NBR, all arranged in an easily serviceable design that simplifies onboard maintenance.

Single-Phase 0.55 kW Motor and 1-Inch BSP Plumbing

This configuration is driven by a 0.55 kW, single-phase (1Ph) electric motor rated for 230V 50Hz electrical systems. For straightforward integration into the vessel's waste and grey water plumbing lines, the pump is equipped with 1-inch BSP port connections.

Technical Specifications

  • Brand / Manufacturer: Gianneschi Pumps and Blowers (Camaiore, Italy)
  • Model: MV 44   Reference Number: 01GMV342G
  • Product Type: Self-Priming Single-Screw Pump   Voltage: 230V AC
  • Frequency: 50Hz   Phase: 1-Phase (1Ph / Single-Phase)
  • Power: 0.55 kW
  • Port Size: 1" BSP
  • Flow Range: 396 to 793 GPH
  • Pump Casing Material: Bronze
  • Rotor / Impeller Material: 316 Stainless Steel (Inox) Screw Rotor
  • Stator Material: High-quality NBR floating stator
  • Mechanical Joint Material: 316 Stainless Steel (Inox) and NBR
  • Shaft Material: Stainless Steel
  • Operational Characteristics: Self-priming, easily serviceable, limited noise and vibration level
  • Applications: Black/waste water and grey water

FAQs

Is the Gianneschi MV 44 screw pump self-priming?

Yes, the MV 44 is a self-priming single-screw pump engineered for reliable onboard waste transfer.

What onboard applications is reference 01GMV342G designed to handle?

This model is specifically designed to pump black/waste water and grey water with limited noise and vibration.

What electrical supply is required to run this pump?

It requires a 230V AC, 50Hz, single-phase (1Ph) power supply to operate its 0.55 kW electric motor.

What materials are used in the wet end and internal mechanism?

The pump features a bronze casing, a stainless steel shaft, a 316 stainless steel screw rotor, a high-quality NBR floating stator, and an accurate mechanical joint in 316 stainless steel and NBR.

What size are the plumbing port connections?

The unit is equipped with 1-inch BSP port connections.

Where is this pump manufactured?

It is manufactured in Camaiore, Italy, by Gianneschi Pumps and Blowers.
