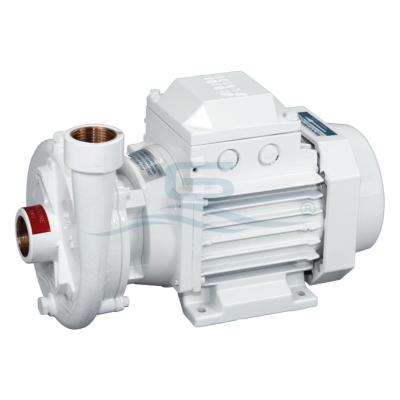

Gianneschi CB 22-95 Bronze Centrifugal Pump 230V 50Hz 1Ph 01CB22G302

An Italian-built 0.37 kW single-phase bronze marine centrifugal pump with a stainless steel shaft engineered for 230V 50Hz air conditioning circulation, seawater feeding, and hydrofore systems

Part number 01CB22G302.

Gianneschi

Reference: 01CB22G302
Available Online: 6
Ft. Lauderdale: 1
Miami: 5
Regular Price: $1,762.55
CPlus Price: $1,674.42
What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!*
Available for Store Pickup!
International Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only

Marine Bronze Circulation with the Gianneschi CB 22-95 Pump 01CB22G302

The Gianneschi CB 22-95 (Part Number / Reference: 01CB22G302) is a marine-grade bronze centrifugal pump built in Camaiore, Italy, by Gianneschi Pumps and Blowers. Engineered to deliver high performance with limited power consumption, this single-phase unit is designed for reliable onboard fluid distribution across multiple vessel systems. Common applications include seawater circulation for air conditioning and refrigeration cooling circuits, freshwater and seawater circulation, seawater feeding, water pressure (WPS - Hydrofore) systems, deck washdown, and general onboard water transfer.

Corrosion-Resistant Bronze Construction and 0.37 kW Single-Phase Motor

Built to withstand harsh marine environments, the wet end pairs a bronze pump casing and open bronze impeller with a stainless steel shaft and a high-quality mechanical seal. This specific configuration is powered by a 0.37 kW, 2-pole, single-phase (1Ph) electric motor rated for 230V 50Hz electrical systems. Within the broader CB series, open or closed impeller options and threaded or flanged connections are supported (spanning port sizes from 1/2-inch to 1-1/2-inch BSP / DN32 to DN65), with the CB 22-95 utilizing 1-inch BSP suction and discharge ports.

Below-Waterline Mounting and Maintenance Recommendations

Because this centrifugal pump is not self-priming, it must be installed below the waterline in a flooded suction configuration to prevent the pump from losing prime or running dry. For simplified routine service and mechanical seal inspections, marine technicians recommend installing three-piece pipe unions on both the 1-inch BSP suction and discharge ports.

Technical Specifications

  • Brand / Manufacturer: Gianneschi Pumps and Blowers (Camaiore, Italy)
  • Model: CB 22-95
  • Part Number / Reference Number: 01CB22G302
  • Product Type: Marine Bronze Centrifugal Pump
  • Voltage: 230V AC
  • Frequency: 50Hz
  • Phase: 1-Phase (1Ph / Single-Phase)
  • Power: 0.37 kW
  • Poles: 2P (2-Pole)
  • Flow Range: 238 – 1,585 GPH
  • Pump Casing Material: Bronze
  • Impeller Material: Bronze (Open bronze impeller; open or closed available in series)
  • Shaft Material: Stainless Steel
  • Seal Type: High-quality mechanical seal
  • Port Connections: 1" BSP suction and discharge ports (Series range: 1/2" to 1-1/2" BSP / DN32 to DN65, threaded or flanged)
  • Priming Type: Not self-priming (must be installed below the waterline with flooded suction)
  • Applications: Seawater circulation for air conditioning and refrigeration systems, Freshwater (F.W.) and Seawater (S.W.) circulation, Seawater feeding, WPS - Hydrofore, deck washdown, and general onboard water transfer

FAQs

Is the Gianneschi CB 22-95 centrifugal pump self-priming?

No, this unit is not self-priming and must be installed below the waterline with flooded suction to prevent the pump from losing prime or running dry.

What electrical supply is required for part number 01CB22G302?

This model operates on a 230V AC, 50Hz, single-phase (1Ph) power supply and is driven by a 0.37 kW, 2-pole electric motor.

What materials are used in the wet end for seawater resistance?

The pump casing and open impeller are constructed from bronze, paired with a stainless steel shaft and a high-quality mechanical seal to withstand harsh marine environments.

What are the plumbing port sizes and maintenance best practices?

The unit features 1-inch BSP suction and discharge ports, and technicians recommend installing three-piece pipe unions on both ports to simplify routine service and mechanical seal inspections.

What onboard systems is the CB 22-95 designed to serve?

It is suited for marine air conditioning and refrigeration cooling circuits, freshwater and seawater circulation, seawater feeding, hydrofore water pressure (WPS) systems, deck washdown, and general water transfer on board.

Where is this marine pump manufactured?

The pump is manufactured in Camaiore, Italy, by Gianneschi Pumps and Blowers.
