BRP CAN (Bombardier Rotax) Engine Gateway Adaptor

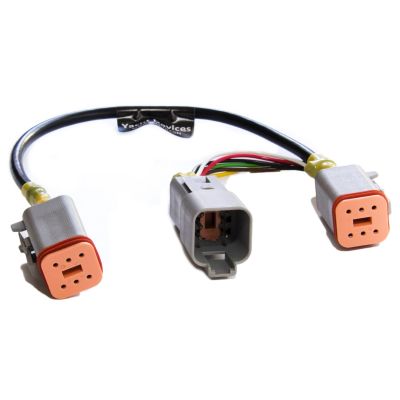

Yacht Devices BRP CAN (Bombardier Rotax) Engine Gateway Adaptor - This cable allow easy connection of YDEG-04 Engine gateways to your engine. This one works with BRP CAN (Bombardier rotax) engine.
Part Number: BRP-CAN
Reference: BRP-CAN
In Stock: 3
$39.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
Yacht Devices BRP CAN Engine Gateway Adaptor%20cable%20adaptor.jpg)
The new Engine Gateway firmware supports up to two BRP engines on a network (for J1939 and Volvo Penta EVC, eight engines are supported). You'll get the following engine data on NMEA 2000 instruments:
- Engine speed;
- Engine hours;
- Engine temperature;
- Boost pressure;
- Keyswitch battery voltage;
- Fuel rate;
- Fuel tank level;
- Engine warnings (transmitted in J1939 messages with PGN 65226).
BRP protocol uses a different bus speed (500 kbps as opposed to 250 kbps for J1939), and to activate BRP CAN protocol support, you should add the following lines to the configuration file:
BRP_ROTAX=ON
ENGINE_CAN_SPEED=500
Engine data are available via the diagnostics connector of BRP CAN, which can be found near the fuse box.
