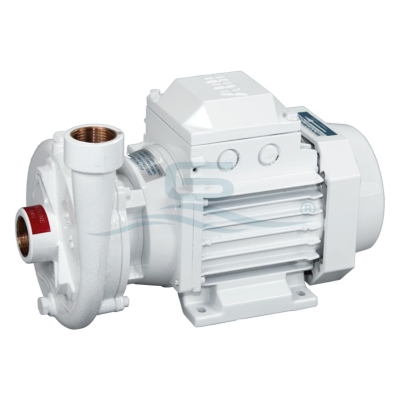

Gianneschi CB 22-110 Bronze Centrifugal Pump 230/400V 3Ph 01CB22G223

An Italian-built 0.55 kW three-phase bronze marine centrifugal pump with a stainless steel shaft engineered for continuous-duty air conditioning circulation, seawater feeding, and hydrofore systems.

Part number 01CB22G223.

Gianneschi

Reference: 01CB22G223
Regular Price: $1,820.72
CPlus Price: $1,729.68
What is Citimarine Plus Membership?
Click here for details

Free US Shipping on This Item!*
International Shipping Calculator
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only

Marine Bronze Circulation with the Gianneschi CB 22-110 Pump 01CB22G223

The Gianneschi CB 22-110 (Part Number / Reference: 01CB22G223) is a marine-grade bronze centrifugal pump built in Camaiore, Italy, by Gianneschi Pumps and Blowers. Engineered to deliver high performance with limited power consumption, this unit is built for continuous-duty marine fluid transfer. Common onboard applications include freshwater and seawater circulation, air conditioning and refrigeration cooling systems, seawater feeding, water pressure (WPS - Hydrofore) systems, deck washdown, and general water transfer.

Corrosion-Resistant Bronze Construction and 0.55 kW 3-Phase Motor

Constructed to withstand saltwater corrosion during continuous duty cycles, the wet end pairs a bronze pump body and bronze impeller with a stainless steel shaft and a high-quality mechanical seal. The pump is powered by a 0.55 kW, 2-pole, three-phase (3Ph) electric motor rated for 230/400V at 50/60Hz. Installers should verify the vessel's three-phase 230/400V 50/60Hz supply against the motor data plate prior to wiring.

Plumbing Connections and Flooded Suction Requirement

While the broader CB series encompasses threaded or flanged connections from 1/2-inch to 1-1/2-inch BSP (DN32 to DN65) and open or closed impeller options, the CB 22-110 utilizes 1-inch BSP suction and discharge ports. Installing three-piece pipe unions on both the suction and discharge ports is recommended to simplify routine maintenance, mechanical seal inspections, and winterizing without cutting plumbing lines. Because this centrifugal pump is not self-priming, it must be mounted below the waterline with a flooded suction setup to prevent loss of prime or dry running.

Technical Specifications

  • Brand / Manufacturer: Gianneschi Pumps and Blowers (Camaiore, Italy)
  • Model: CB 22-110
  • Part Number / Reference Number: 01CB22G223
  • Product Type: Marine Bronze Centrifugal Pump
  • Voltage: 230/400V AC
  • Frequency: 50/60Hz   Phase: 3-Phase (3Ph)
  • Power: 0.55 kW
  • Flow Range: 238 – 2,536 GPH
  • Poles: 2P (2-Pole)
  • Pump Casing Material: Bronze
  • Impeller Material: Bronze (Open or closed impeller available across series)
  • Shaft Material: Stainless Steel
  • Seal Type: High-quality mechanical seal
  • Port Connections: 1" BSP suction and discharge ports (Series range: 1/2" to 1-1/2" BSP / DN32 to DN65, threaded or flanged)
  • Priming Type: Not self-priming (must be installed below the waterline with flooded suction)   Applications: Freshwater (F.W.) and Seawater (S.W.) circulation, air conditioning and refrigeration cooling, seawater feeding, WPS - Hydrofore, deck washdown, and general onboard water transfer

FAQs

Is the Gianneschi CB 22-110 centrifugal pump self-priming?

No, this unit is not self-priming and must be mounted below the waterline with a flooded suction setup to prevent losing prime or running dry.

What electrical supply is required for part number 01CB22G223?

This model requires a three-phase (3Ph) 230/400V AC, 50/60Hz power supply to drive its 0.55 kW, 2-pole motor. Installers should confirm the data plate specifications match the vessel's phase and voltage prior to wiring.

What materials are used in the pump's wet end?

The pump features a bronze body, a bronze impeller, a stainless steel shaft, and a mechanical seal to resist saltwater corrosion in continuous marine duty.

What size are the plumbing ports, and how can maintenance be simplified?

The unit uses 1-inch BSP suction and discharge ports, and marine technicians recommend installing three-piece pipe unions on both ports to facilitate seal checks, routine maintenance, or winterizing without cutting lines.

What onboard systems use the CB 22-110?

It is designed for marine air conditioning and refrigeration seawater circulation, freshwater and seawater transfer, seawater feeding, hydrofore water pressure (WPS) systems, and deck washdown.
