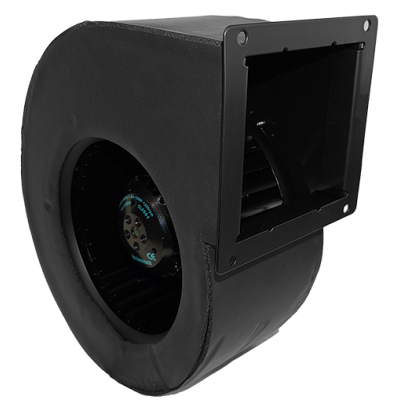

CTM Blower (Turbo) Assembly For Marine A/C Units (CT, DTU, STX, STQ, SXR, VTD, VCP & VRP) - 6K to 8K BTU's - 230V
CTM Blower assembly for Marine Self-Contained air conditioning units. Works with units from 6,000 to 8,000 BTUs - 230V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units 90-day warranty.
Part Number: 40022B
Reference: 40022B
Regular Price: $335.99
CPlus Price: $319.19
What is Citimarine Plus Membership?
Click here for details
Click here for details
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
CTM Turbo Blower Assembly For Self-Contained Units, 6k to 8k BTU's - 230V
Works with units from 6,000 to 8,000 BTU's - 230V. It is fully compatible with CTM, Dometic, Cruisair, and Marine Air (CT, DTU, STX, STQ, SXR, VTD, VCP, VRP) units. 90-day warranty.
Blower Connection Diagram
.png.avif)
Technical Specifications 40022B
| Voltage | 230 V |
| Phase | 1 Ph |
| Frequency | 50/60 Hz |
| Capacitor | 2uf |
| Airflow | 347 CFM |
| Speed | 2050/2000 RPM |
| Power | 121/153 W |
| Current Max | 0.54/0.68 A |
| Noise | 68 dB |
| Working Temperature | -40 + 65 °C |
| Motor Technology | AC |
