RENOGY 100 WATT SOLAR PANEL - 12 VOLT FLEXIBLE MONOCRYSTALLINE SOLAR PANEL

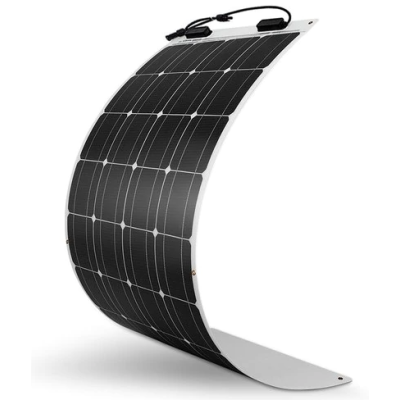

The Renogy 100 Watt Solar Panel is perfect for marine or RV use. Thin and capable of flexing up to 248 degrees, this lightweight panel can easily be installed on curved surfaces. At 4 pounds, this solar panel weighs only a quarter of its traditional 100W counterpart. 5 year material and workmanship warranty, 25 year power output warranty. RNG-100DB-H.
Reference: RNG-100DB-H
$219.44
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RENOGY 100 Watt Solar Panel - 12 Volt Flexible Monocrystalline Solar Panel for Marine and RV Use - RNG-100DB-H
Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 100 Watt Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of an RV, the Renogy 100W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 4 pounds, this solar panel weighs only a quarter of its traditional 100W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces.
Mounting Recommendation: Modules may be mounted using silicone structural adhesive on the backside of the panel.
KEY FEATURES OF THE RENOGY 100 WATT SOLAR PANEL
Extremely Flexible - This 100 watt solar panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
Ultra Lightweight - Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
Super Thin Lamination - Hardly noticeable, the Renogy 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup
Highly Durable - Rigorously tested, the 100W panel was designed to withstand extreme wind of up to 2400 Pa and snow loads of up to 5400 Pa
| MECHANICAL DATA | |
|---|---|
| Solar Cells: 36 Monocrystalline cells | Junction Box: IP 68 |
| Panel Dimensions: 48x21.5x0.08 In | Weight: 4 lbs |
| Cables: 12 AWG, 17.7In(Negative Cable), 5.9In(Positive Cable) | Connectors: MC4 Connectors |
| SPECIFICATIONS | |
|---|---|
| Maximum Power at STC*: 100 W | Cell Efficiency: 21% |
| Optimum Operating Voltage (Vmp): 18.9 V | Optimum OperatingCurrent (Imp): 5.29A |
| Open-Circuit voltage (Voc): 22.5V | Short-Circuit Current (Isc): 5.75A |
| Maximum System Voltage: 600 VDC | Maximum Series Fuse Rating: 15 A |
*More specs available in downloads section below.
DIMENSIONS
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
CERTIFICATION
 |
