RENOGY ROVER LI 30 AMP MPPT SOLAR CHARGE CONTROLLER

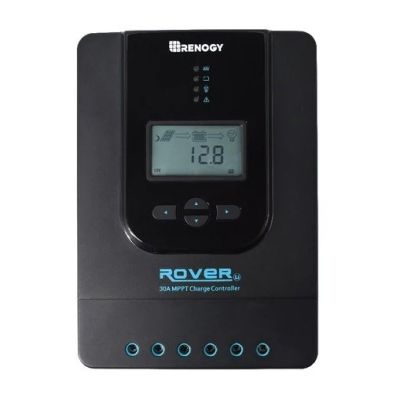

The Renogy Rover LI 30 AMP MPPT Solar Charge Controller is encapsulated with a sturdy case that protects against general wear and tear. It also includes an aluminum heat sink for heat dissipation. Compatible with the Renogy BT-1 Bluetooth Module, users can connect to and monitor their solar power systems in real time, straight from their phones. RNG-CTRL-RVR30.
Reference: RNG-CTRL-RVR30
$161.69
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RENOGY Renogy Rover LI 30 Amp MPPT Solar Charge Controller - RNG-CTRL-RVR30
Meet the newest addition to the Renogy Rover Series, the 30A Rover-Li MPPT Charge Controller. The Rover-Li is not only capable of self-diagnosing errors, but it can also automatically detect 12V/24V systems. Pair this MPPT charge controller with the battery of your choice, from sealed to lithium. This 30A charge controller is encapsulated with a sturdy case that protects against general wear and tear. It also includes an aluminum heat sink for heat dissipation.
Compatible with the Renogy BT-1 Bluetooth Module, users can connect to and monitor their solar power systems in real time, straight from their phones.
KEY FEATURES OF RENOGY ROVER LI 30AMP MPPT SOLAR CHARGE CONTROLLER
- Compatible with 12V and 24V systems.
- Compatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium.
- The Rover is a negative ground controller, which ensures compatibility with any negative ground system.
- Any negative connection on the solar module, battery, and load can be safely earth-grounded as required.
- Featuring innovative MPPT (maximum power point tracking) technology with high tracking efficiency up to 99%, maximizing the energy from solar panels to charge your system.
- 4-stage charging (Bulk, Boost, Float, and Equalization) and temperature compensation increase your battery life and improve your system's performance.
- Intelligent protection built-in against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- RS232 port to communicate with BT-1 Bluetooth module.
PACKAGE INCLUDES
- Rover Li 30 Amp MPPT Charge Controller
- Remote Temperature Sensor
- Optional: BT-Bluetooth Module
| ROVER LI 30 AMP MPPT SOLAR CHARGE CONTROLLER | |
|---|---|
| Rated Battery Current: 30A | Rated Battery Current: 20ARated Load Current:20A |
| Max. PV Input Short Current: 50A | Max. Battery Voltage: 32V |
| Max Solar Input Voltage: 100VDC | Charge circuit voltage drop: ≤ 0.26V |
| Discharge circuit voltage drop: ≤ 0.15V | Working Temperature: -35°C to +45°C |
| Max Terminal Size: 8AWG | Rated Load Current: 10% to 90% NC |
| Overall Dimension: 9.37 x 6.81 x 2.85 in | Net Weight: 4.41 lb. |
| OPTIONS: BT-1 BLUETOOTH MODULE | |
| Model: BT-1 | Input Voltage: 5V-12V |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤15m | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.6 X 2.01 X 0.61 In |
| Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in) | Operation Temperature: -20°C to 75°C (-4°F to 167 °F) |
| Protection Grade: IP67 | Weight: 120 g (4.2oz) |
*More specs available in downloads section below.
WARRANTY INFORMATION
| Accessories |
1-year material warranty |
CERTIFICATION
 |
