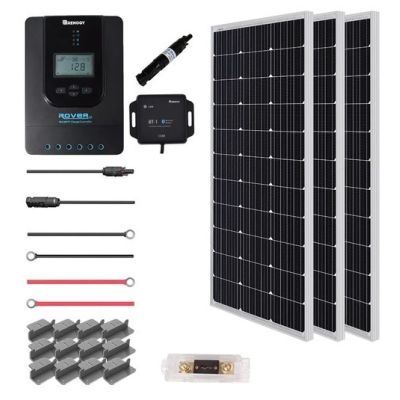

RENOGY 300 WATT SOLAR PANEL KIT - PREMIUM KIT - 12 VOLT
The Renogy 300 Watt Solar Kit - 12V includes three of Renogy's new 100W Mono Solar Panels which are not only sleek in size, weight, and color but made of the highest efficiency solar cells that Renogy has to offer. The included Rover Li 40A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. The new Bluetooth module is also included which can be paired to the Renogy App. RNG-KIT-PREMIUM300D-RVR40.
Reference: RNG-KIT-PREMIUM300D-RVR40
$831.59
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RENOGY 300W Solar Panel Kit - Premium - RNG-KIT-PREMIUM300D-RVR40
You'll never have to worry about access to energy while out at sea or on the road with the Renogy 300 Watt Solar Kit. This kit includes three of Renogy's new 100W Mono Solar Panels which are not only sleek in size, weight, and color but made of the highest efficiency solar cells that Renogy has to offer.
The included Rover Li 40A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. The new Bluetooth module is also included which can be paired to the Renogy App. The Renogy app allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet. For convenience, this kit also consists of three sets of mounting Z-Brackets, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 8AWG Tray Cable, fusing components for your controller and battery.
This Premium Solar Kit is perfect for installation on your boat, RV, or camper. The included Rover Li 40A MPPT Charge Controller allows for future expansion, leaving your system’s capabilities endless.
KEY FEATURES OF THE RENOGY 300 WATT SOLAR PANEL KIT (PREMIUM) - RNG-KIT-PREMIUM300D-RVR40
Efficient
- Monocrystalline panels come with high-efficiency cells Cell efficiency: Regular Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
Reliable
- Extra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
Safe
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Comes equipped with an MC4 Inline fuse and ANL fuse components for protecting your charge controller and battery
Package Includes
- 100 Watt Eclipse OR Mono Solar Panel (x3)
- Rover Li 40A Charge Controller
- 20ft 10 AWG AK / 2ft 8 AWG Fuse Cable / 8ft 8 AWG Tray Cable
- Mounting Z Brackets (3 sets)
- BT-1 Bluetooth Module
- 10A MC4 and 40A ANL Fuse
| RENOGY 100W MONOCRYSTALLINE SOLAR PANEL (x3) |
|---|
| Maximum Power: 100W |
| Maximum System Voltage:600V DC |
| Open-Circuit Voltage (Voc): 21.6V |
| Short-Circuit Current (Isc): 6.24A |
| Optimum Operating Voltage (Vmp): 17.9V |
| Optimum Operating Current (Imp): 5.72A |
| Weight: 16.5lbs |
| Dimensions: 42.2 X 19.6 X 1.38 inches |
| BT-1 BLUETOOTH MODULE | RENOGY 10A MC4 FUSE HOLDER W/FUSE |
|---|---|
| Input Voltage: 5V-12V | Rated Current: 10A |
| Communication Range: ≤15m | Rated Voltage: 1000 V DC |
| Compatibel Models: All Renogy Controllers with RJ12 port | Contact Material: Copper, Silver Plated |
| Operation Temperature: -20℃ to 75℃ (-4 F to 167 F) | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
| MOUNTING Z BRACKETS (SET) | RENOGY 8FT 8AWG TRAY CABLES (A PAIR) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 8 |
| Four Nuts | Temperature: -40°F to +185°F |
| 2FT 8AWG ANL FUSE CABLE | ANL 40A FUSE SET |
|---|---|
| Length: 2ft | Current Rating: 40A |
| Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV | Voltage Rating: 72V |
| Temperature: -40°F to +194°F | Interrupt Capacity: 240A (48V) |
| ROVER LI 40A MPPT CHARGE CONTROLLER | RENOGY 20FT 10AWG MC4 ADAPTOR KIT (A PAIR) |
|---|---|
| Nominal System Voltage: 12V/24V Auto Recognition | Length: 20ft |
| Rated Battery Current: 40A | AWG: 10 |
| Rated Load Current: 40A | Rating Voltage: 600/1000V |
| Max. Solar Input Voltage: 150V DC | Temperature: -40°F to +185°F |
| Max. Solar Input Power: 520W (12V), 1040W (24V) |
*More specs available in downloads section below.
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories |
1-year material warranty |
CERTIFICATION
 |
