RENOGY 800 WATT SOLAR PANEL KIT - 24 VOLT
The Renogy 800 Watt Solar Panel Kit (24 Volt) includes eight (8) Renogy 100W Mono Solar Panels, which are not only sleek in size, weight, and color but are made of the highest efficiency solar cells that Renogy has to offer. The Rover Li 40A MPPT Charge Controller is also included in this kit. RNG-KIT-PREMIUM800D-RVR40.
Reference: RNG-KIT-PREMIUM800D-RVR40
$1,960.02
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RENOGY 800 Watt Solar Panel Kit - RNG-KIT-PREMIUM800D-RVR40
Whether you're charging your batteries or creating an emergency power back-up system, you can rest assured you are purchasing a superior system with the Renogy Premium Kit. If efficiency and reliability are high on your wish list, the Renogy 800 Watt Solar Panel Kit is an ideal choice. This kit includes the new 100W Mono Solar Panel which is not only sleek in size, weight, and color but are made of the highest efficiency solar cells that Renogy has to offer.
The Rover Li 40A MPPT Charge Controller, also included in this kit, features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. The new Bluetooth module is also included which can be paired to the Renogy BT APP. The Renogy BT APP allows users to remotely monitor and change their photovoltaic system's parameters with a few simple swipes on their smartphone or tablet. For convenience, this kit also consists of eight sets mounting Z-Brackets, branch connectors, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 4AWG Tray Cable, and fusing components for protection of your controller and battery.
This Premium Kit is perfect for installation on an RV, boat, or camper. It can also be installed in a ground mount system next to an off-grid campsite, making it an ideal choice for many off-grid applications.
KEY FEATURES OF THE RENOGY 800 WATT SOLAR PANEL KIT - RNG-KIT-PREMIUM800D-RVR40
Efficient
- Monocrystalline panels come with high-efficiency cells Cell efficiency: Regular Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
Reliable
- Extra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
Intuitive
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
Safe
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Comes equipped with an MC4 Inline fuse and ANL fuse components for protecting your charge controller and battery

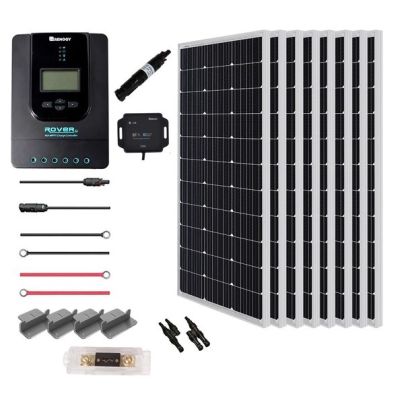

Renogy 800 Watt Solar Panel Kit Includes
- 100 Watt Mono Solar Panels (x8)
- Rover Li 40A Charge Controller
- 20ft 10 AWG AK / 2ft 8 AWG Fuse Cable / 8ft 8 AWG Tray Cable
- Mounting Z Brackets (Set)
- 20A MC4 and 40A ANL Fuse
- Renogy Solar MC4 Branch Connectors MMF + FFM Pair
- BT-1 Bluetooth Module
| RENOGY 100W MONOCRYSTALLINE SOLAR PANEL (8 included in kit) |
|---|
| Maximum Power: 100W |
| Maximum System Voltage:600V DC |
| Open-Circuit Voltage (Voc): 21.6V |
| Short-Circuit Current (Isc): 6.24A |
| Optimum Operating Voltage (Vmp): 17.9V |
| Optimum Operating Current (Imp): 5.72A |
| Weight: 16.5lbs |
| Dimensions: 42.2 X 19.6 X 1.38 inches |
| RENOGY SOLAR MC4 BRANCH CONNECTORS MMF+FFM PAIR | RENOGY 20A MC4 FUSE HOLDER W/FUSE |
|---|---|
| Withstanding voltage: 1000V DC(TUV), 600V(UL) | Rated Current: 20A |
| Protection Class: Class II | Rated Voltage: 1000 V DC |
| Protection Degree: IP67, mated | Contact Material: Copper, Silver Plated |
| Insulation Material: PC/PA | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
| Temperature Range: -40°F to 194°F |
| MOUNTING Z BRACKETS (SET) | RENOGY 8FT 8AWG TRAY CABLES (A PAIR) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 8 |
| Four Nuts | Temperature: -40°F to +185°F |
| 2FT 8AWG ANL FUSE CABLE | ANL 40A FUSE SET |
|---|---|
| Length: 2ft | Current Rating: 40A |
| Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV | Voltage Rating: 72V |
| Temperature: -40°F to +194°F | Interrupt Capacity: 240A (48V) |
| BT-1 BLUETOOTH MODULE |
|---|
| Input Voltage: 5V-12V |
| Communication Range: ≤15m |
| Compatibel Models: All Renogy Controllers with RJ12 port |
| Operation Temperature: -20 °C to 75°C (-4 F to 167 F) |
| ROVER LI 40A MPPT CHARGE CONTROLLER | RENOGY 20FT 10AWG MC4 ADAPTOR KIT (A PAIR) |
|---|---|
| Nominal System Voltage: 12V/24V Auto Recognition | Length: 20ft |
| Rated Battery Current: 40A | AWG: 10 |
| Rated Load Current: 40A | Rating Voltage: 600/1000V |
| Max. Solar Input Voltage: 150V DC | Temperature: -40°F to +185°F |
| Max. Solar Input Power: 520W (12V), 1040W (24V) |
*More specs available in downloads section below.
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories |
1-year material warranty |
CERTIFICATION
 |
