RENOGY 100 WATT FLEXIBLE SOLAR PANEL KIT
RENOGY 100 Watt Solar Flexible Kit - Adding solar to your boat or RV is a breeze with the Renogy 100 Watt Flexible Solar Panel Kit, including all the necessary components to get you started with solar power. Eliminate the burden of dead batteries and maximize your efficiency with the endless supply of energy from the sun. RKIT100DB-VOY10.
Reference: RKIT100DB-VOY10
$277.19
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RENOGY 100 Watt Solar Flexible Kit - RKIT100DB-VOY10
Adding solar to your boat or RV is a breeze with the Renogy 100 Watt Solar Flexible Kit, including all the necessary components to get you started with solar power. Eliminate the burden of dead batteries and maximize your efficiency with the endless energy from the sun.
Unlike traditional gas generators, Renogy’s Flexible Solar Panel Kits will silently charge your batteries and ensure they’re topped off just right. Renogy's new flexible solar panels are thin, lightweight and take up minimal space.
KEY FEATURES OF THE RENOGY 100 WATT FLEXIBLE SOLAR PANEL KIT - RKIT100DB-VOY10
Solar Panel
- Designed for off-grid solar panel system, caravan, RV, boat, Green house solar panel system
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Waterproof charge controller giving you more freedom to install anywhere
- With a flex range of up to 248 degrees, this panel can meet a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an Airstream
Charge Controller
- 12V / 24V Battery Compatibility with Auto Recognition
- Smart 4 Stage PWM charge controller: Bulk, Absorption. Float, and Equalization
- 4 Battery Type Compatiblity – Sealed/AGM, Gel, Flooded, and Lithium batteries (with Lithium Awakening feature)
- Watertight design with Backlit LCD display for system information and error codes
- Multiple protection features for battery, controller, and solar panels (including reverse polarity and more)

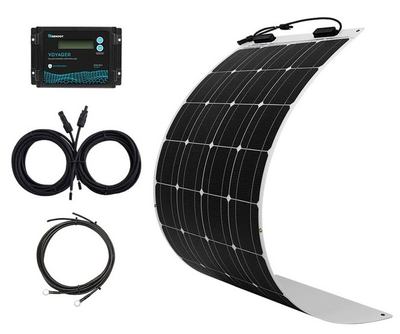

Package Includes
- 100 Watt 12 Volt Flexible Monocrystalline Solar Panel
- New Edition Voyager 10A PWM Waterproof Charge Controller
- 8ft 10 AWG Battery to Charge Controller Tray Cables
- 20ft 10 AWG Solar Panel to Charge Controller Adaptor Kit
| RENOGY FLEXIBLE 100 WATT SOLAR PANEL | |
|---|---|
| Max Power at STC: 100 W | Open Circuit Voltage: 22.5V |
| Short Circuit Current: 5.75A | Opitmum Operating Voltage: 18.9V |
| Optimum Operating Current: 5.29A | Operating Temperature: -40ºC to +85ºC |
| Dimensions: 48 x 21.5 x 0.08 in | Weight: 4 lbs |
| NEW EDITION VOYAGER 10A PWM WATERPROOF CHARGE CONTROLLER | |
|---|---|
| Nominal Voltage: 12V/24V | Rated Charge Current: 10A |
| Max. PV Input Voltage: 55 VDC | Max. PV Power: 130W (12V) / 260W (24V) |
| Self-Consumption: .22W (12V) / .72W (24V) | Temperature Compensation: -3mV/°C/2V, excludes LI |
| Operating Temperature: -31°F - 113°F | Storage Temperature: -31°F - 167°F |
| Enclosure: IP67 | Terminals: 20-6 AWG, 2 pin connectors |
| Dimensions: 6.08 x 3.83 x 1.40 in | Weight: 0.55 lbs |
| Common Ground: Positive | Certifications: FCC, CE, RoHS |
*More specs available in downloads section below.
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 3-year material and workmanship warranty |
| Accessories |
1-year material warranty |
