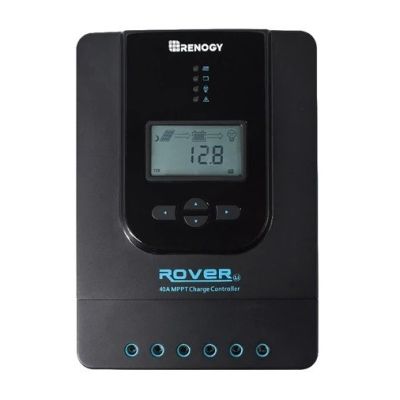

RENOGY ROVER LI 40 AMP MPPT SOLAR CHARGE CONTROLLER
The Renogy Rover LI 40 AMP MPPT Solar Charge Controller is capable of conveniently self-diagnosing itself in the event of an error and can be used with the Bluetooth Module, Renogy BT-1. By pairing the Rover with the BT-1 and the Renogy BT app through Bluetooth, users can monitor and adjust their solar system straight from their phones. RNG-CTRL-RVR40.
Reference: RNG-CTRL-RVR40
$196.34
Free US Shipping on This Item!*
International Shipping Calculator
Earn 21 Citimarine Points with this Purchase!
By buying this product you can collect up to 21 Citimarine points. Your cart will total 21 points that will be converted into a voucher of $2.10 towards your next purchase! Must be logged in to collect points.
Available for local pickup at our Miami or Fort Lauderdale location
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
RENOGY Renogy Rover LI 40 AMP MPPT Solar Charge Controller - RNG-CTRL-RVR40
Meet the newly redesigned 40A Rover MPPT Charge Controller. This smart charge controller is capable of conveniently self-diagnosing itself in the event of an error and can be used with the Bluetooth Module, Renogy BT-1. By pairing the Rover with the BT-1 and the Renogy BT app through Bluetooth, users can monitor and adjust their solar system straight from their phones.
The Rover was also built tough with a die-cast aluminum exterior which allows for safe heat dissipation and general protection from wear and tear.
KEY FEATURES OF RENOGY ROVER LI 40AMP MPPT SOLAR CHARGE CONTROLLER
- Automatically detects 12V or 24V DC system voltages. Compatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port to communicate with BT-1 Bluetooth module.
PACKAGE INCLUDES
- Rover Li 40 Amp MPPT Charge Controller
- Remote Temperature Sensor
- Optional: BT-Bluetooth Module
| ROVER LI 40 AMP MPPT SOLAR CHARGE CONTROLLER | |
|---|---|
| Rated Battery Current: 40A | Rated Load Current:20A |
| Max. PV Input Short Current: 50A | Max. Battery Voltage: 32V |
| Max Solar Input Voltage: 100VDC | Charge circuit voltage drop: ≤ 0.26V |
| Discharge circuit voltage drop: ≤ 0.15V | Working Temperature: -35°C to +45°C |
| Max Terminal Size: 8AWG | Rated Load Current: 10% to 90% NC |
| Overall Dimension: 9.37 x 6.81 x 2.85 in | Net Weight: 4.41 lb. |
| OPTIONS: BT-1 BLUETOOTH MODULE | |
| Model: BT-1 | Input Voltage: 5V-12V |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤15m | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.6 X 2.01 X 0.61 In |
| Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in) | Operation Temperature: -20°C to 75°C (-4°F to 167 °F) |
| Protection Grade: IP67 | Weight: 120 g (4.2oz) |
*More specs available in downloads section below.
WARRANTY INFORMATION
| Accessories |
1-year material warranty |
CERTIFICATION
 |
