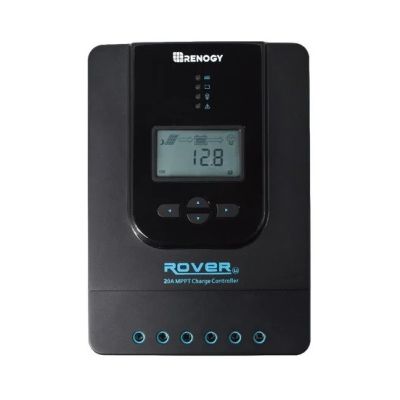

RENOGY ROVER LI 20 AMP MPPT - RENOGY SOLAR CHARGE CONTROLLER
RENOGY SOLAR CHARGE CONTROLLER - The Renogy Rover LI 20 AMP MPPT Solar Charge Controller is not only capable of up to 99% tracking efficiency, but can also self-diagnose system faults. This charge controller displays error codes that can be easily looked up. Capable of automatically detecting 12V/24V systems, this crucial system component can also handle various battery options such as GEL and Lithium. RNG-CTRL-RVR20.
Reference: RNG-CTRL-RVR20
$127.04
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator
RENOGY Rover LI 20 AMP MPPT Solar Charge Controller - RNG-CTRL-RVR20 - Renogy Solar Controller
The 20A Rover MPPT Charge Controller features a die-cast aluminum shell that is perfect for heat dissipation while also protecting against general wear and tear. This intelligent controller is not only capable of up to 99% tracking efficiency, but can also self-diagnose system faults. This charge controller displays error codes that can be easily looked up. Capable of automatically detecting 12V/24V systems, this crucial system component can also handle various battery options such as GEL and Lithium.
Pair this charge controller with the Renogy BT-1 and Renogy BT app to view system performance in real time and make parameter changes without having to get up!
KEY FEATURES OF RENOGY ROVER LI 20AMP MPPT SOLAR CHARGE CONTROLLER - RENOGY SOLAR CONTROLLER
- Automatically detects 12V or 24V DC system voltages
- Compatible with various Deep Cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries
- Die-cast aluminum design allows for efficient heat dissipation
- RS232 port to communicate with BT-1 Bluetooth module.
PACKAGE INCLUDES
- Rover Li 20 Amp MPPT Charge Controller
- Remote Temperature Sensor
- Optional: BT-Bluetooth Module
| ROVER LI 20 AMP MPPT SOLAR CHARGE CONTROLLER | |
|---|---|
| Nominal system voltage: 12V/24V Auto Recognition | Rated Battery Current: 20A |
| Rated Load Current: 20A | Max. PV Input Short Current: 25A |
| Max. Battery Voltage: 32V | Max Solar Input Voltage: 100 VDC |
| Mounting Oval: 0.30 x 0.18in | Net Weight: 3.08 lb. |
| Discharge circuit voltage drop: ≤ 0.15V |
Overall Dimension: 8.27 x 5.94 x 2.34 in |
| OPTIONS: BT-1 BLUETOOTH MODULE | |
| Model: BT-1 | Input Voltage: 5V-12V |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤15m | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.6 X 2.01 X 0.61 In |
| Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in) | Operation Temperature: -20°C to 75°C (-4°F to 167 °F) |
| Protection Grade: IP67 | Weight: 120 g (4.2oz) |
*More specs available in downloads section below.
WARRANTY INFORMATION
| Accessories |
1-year material warranty |
CERTIFICATION
 |
Other Models
