MARCO|PCS PANEL CONTROL SYSTEM - 12/24V
The control panel allows remote monitoring and control with Marco's variable speed electronic controlled water pressure pumps (UPx/E series). See Related Products.
Part Number: 165-203-15
Part Number: 165-203-15
Reference: M165-203-15
$91.99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

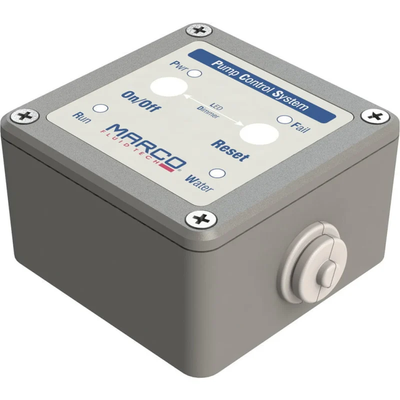

MARCO|PCS PANEL CONTROL SYSTEM for Electronic Water Pumps

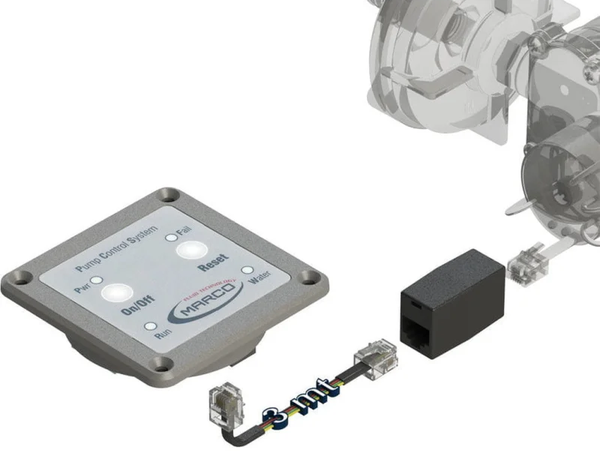

The user can see when the pump is On and if there is still liquid to be transferred. In case of automatic stop of the pump for overload or run dry alarm, the user can reset the alarm and restart the system without turning off the power. With the push of a button, the pump can be turned on or off. The panel can "quick connect" via the 10 ft long RJ11/6 terminal cable integrated in the sensor of the pump. The panel can either be recessed or surface mounted. The terminal allows the user to replicate the buttons and LEDs on an external circuit. The user can personalize the management of the functions through a third-party device.
Specifications:
| Voltage (V) | 12/24 |
| Connector | 10ft Long RJ11/6 |
| Hole Mounting | 2.8" |
| IP Protection | 65 |
Dimensions:
| Length | 3.1 in. |
| Height | 1.8 in. |
| Width | 3.1 in. |
