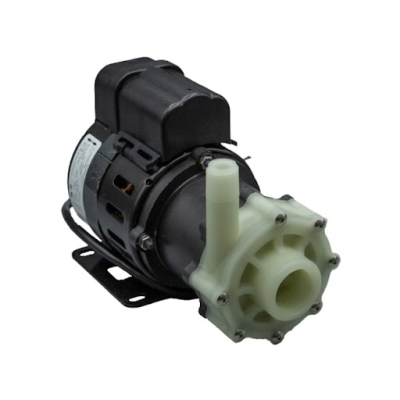

March Pumps AC-5M-MD / PMA1000 - 1000 GPH - 230V - Mag-Drive Centrifugal Pump

March Pump AC-5M-MD 230V is an American seal-less centrifugal magnetic pump. Plastic Pump Head and Impeller, 230V 50/60Hz Air Cooled Motor, Up To 17GPM, 1" FPT Inlet, 1/2"MPT Outlet, 3 Foot Power Cord with No Plug. Commonly used for marine air conditioning.
Upgraded model comes with Noryl Front Housing, 3-Flat Stainless Steel Shaft, Carbon Impeller Bushing.


March Pumps Part Number: AC-5M-MD 230V
Replaces Dometic Part Number: 225500069 - Dometic PMA1000C 230V - Dometic 331554



Reference: AC-5M-MD / PMA1000C 230V
In Stock: 12
$389.99

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

March Pump AC-5M-MD 230V Mag-Drive Centrifugal Pump - Replaces Dometic PMA1000C (Dometic 331554)



March Pump AC-5C-MD replaces Dometic PMA1000C

The March Pump AC-5M-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (or around 11PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The March Pump AC-5M-MD is a direct replacement for Dometic PMA1000C 230V Part Number: 225500276, Dometic 331554

Operation

Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.

Electrical

Model is 230 Volt and have a 3 ft (0.9 m) Cord. Models have U.L. listed motors, which are rated for continuous duty.

About the DOMETIC PUMP ASY PMA1000C 230V - Dometic 331554

Reliable, heavy-duty centrifugal pump provides a steady flow of cooling water through the air conditioning system. A wide range of pumps and motors are available for use in different power environments. 230, 60Hz.

The March Pump AC-5M-MD is the identical pump, under different branding (and for less cost) - The AC-5M-MD is the ideal marine air conditioner pump for applications up to 48,000 BTU. Its magnetic drive design means that a shaft is not required; therefore, reducing the components that are susceptible to damage and wear over time. If you are looking for an ideal boat air conditioner pump at a competitive price, this March pump is perfect for you

Limited Warranty

March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration

Specifications of the March Pump AC-5C-MD

Part Number AC-5M-MD
Dometic Equivalent PMA1000C (225500069)
Max Flow 17 GPM / 64.4 LPM
Max Head 27 FT / 8.2 M
Max Internal Pressure 50 psi (3.4 Bar)
Max Liquid Temperature 190 °F (87 °C)
Power 0.125 HP / 0.093 KW
Voltage 230V 50/60Hz
Inlet 1"FPT
Outlet 1/2"MPT
Dimensions (inches) 6.19 x 4.52 x 9.27
Packed Weight (lbs) 8.55
Applications Marine air conditioning

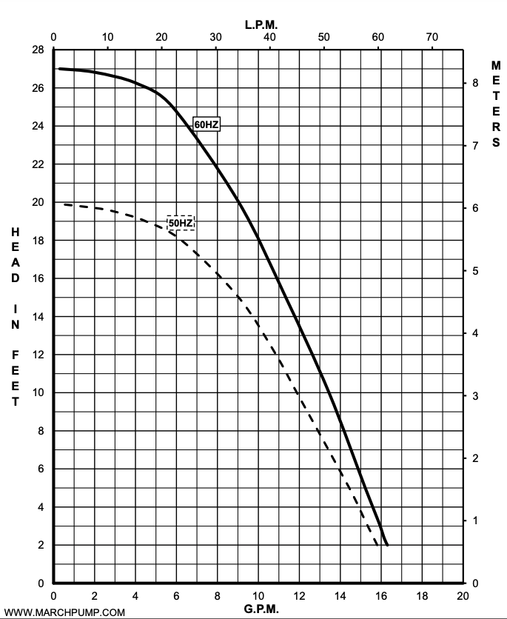

Curve Pump AC-5M-MD

AC-5C-MD Curve

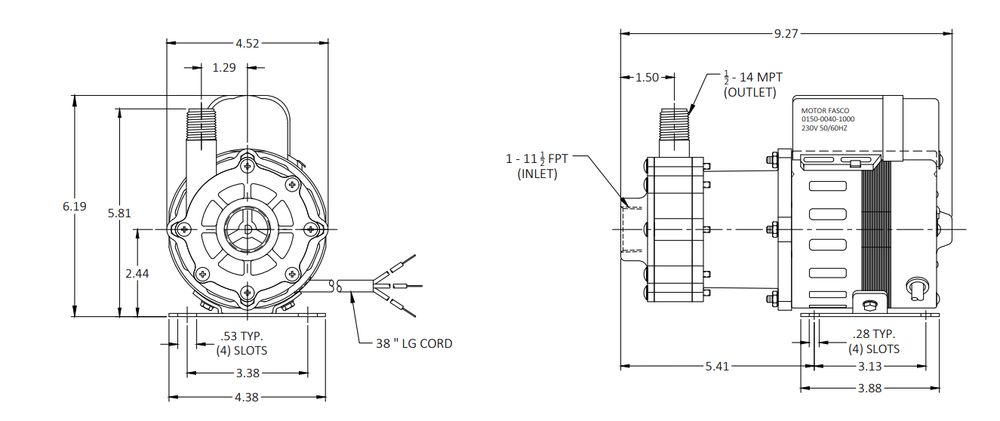

Dimensions

AC-5C-MD Dimensions
