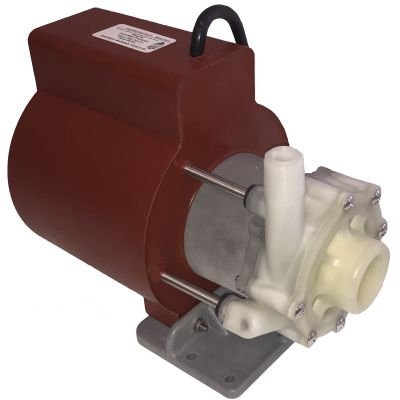

March Pumps LC-5M-MD / PML1000 (870 GPH) 115V Submersible A/C Pump

MARCH PUMPS MA LC-5M-MD 115V is an American submersible seal-less centrifugal magnetic drive pump - Mag-Drive Centrifugal Pump 115V 50/60HZ 14.5GPM (870 GPH) Open Air or Submersible 1" FPT Inlet, 1/2"MPT Outlet. Commonly used for marine air conditioning. Upgraded model comes with Noryl Front Housing, 3-Flat Stainless Steel Shaft, Carbon Impeller Bushing

March Pumps Part Number: LC-5M-MD
Replaces Dometic Part Number: 225500276 - PML1000 115V

Reference: LC-5M-MD / PML1000 115V
$978.99

Shipping Calculator
Free US Shipping on This Item!
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

MARCH PUMPS LC-5M-MD Mag-Drive Centrifugal Pump 115V


March Pump's industrial LC-5M-MD is an American submersible seal-less centrifugal magnetic drive pump. It is capable of generating a maximum flow of 15 gallons per minute at 2 feet, and its maximum head is 27 Feet (or around 11PSI).  The LC-5M-MD pump may be used submerged or not submerged. The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Stainless Steel, Ceramic, and Ceramic Magnet.  When submerged, Epoxy, Noryl, and the Cord are also in contact with the solution. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). Direct replacement for Dometic PML1000 115V Part Number: 225500276

Operation

Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.

Electrical

Motor is available in 115 Volt 50/60 Hz, 1 phase. 115 Volt motors have a 6 ft. (1.8 m) cord with plug. The motors are U.L. listed and rated as continuous duty.

Limited Warranty

March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration.

Specifications

Inlet - Outlet: 1” FPT - 1/2” MPT
Max Internal Pressure: 25 psi (1.7 bar)
Max Liquid Temperature: 130 °F (54 °C)
Dimensions (inches): 7.14 x 5.63 x 9.85
Packed Weight (lbs): 17.70

LC-5C-MD Curve

Dimensions

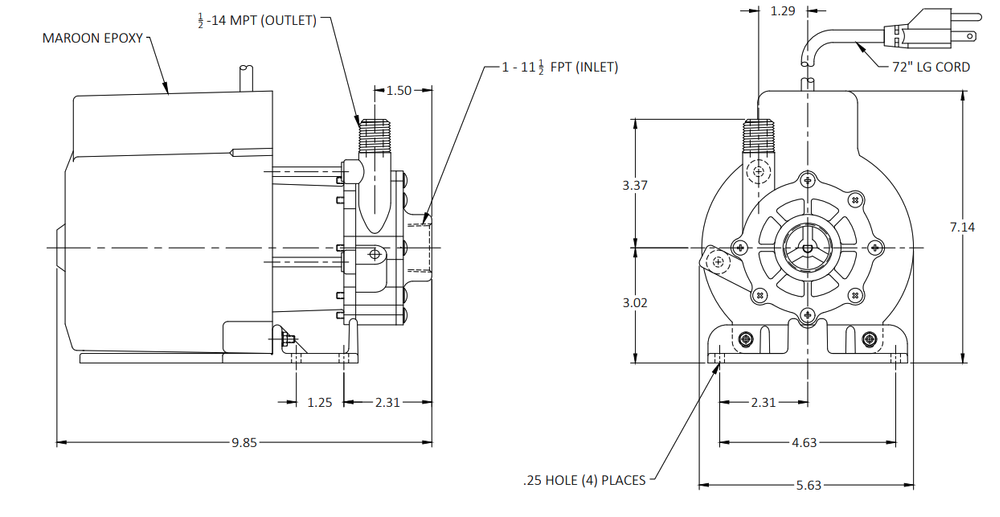

LC-5C-MD Dimensions
March Pumps MA LC-5C-MD 115V
