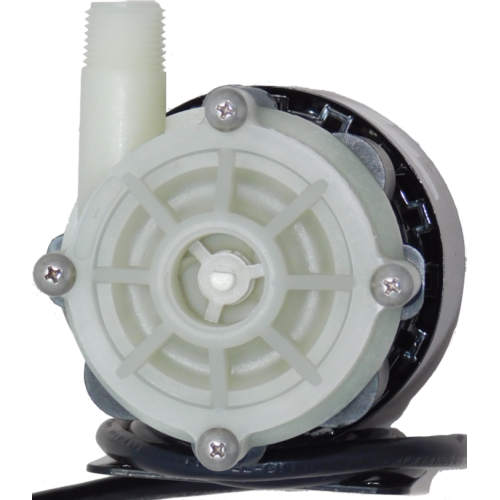

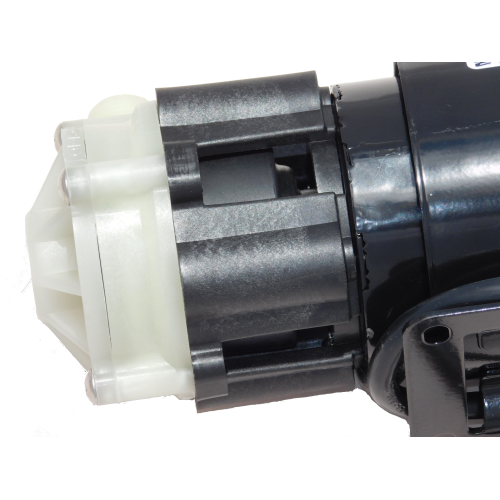

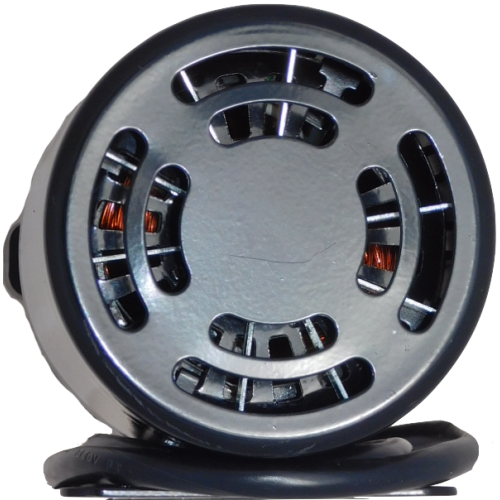

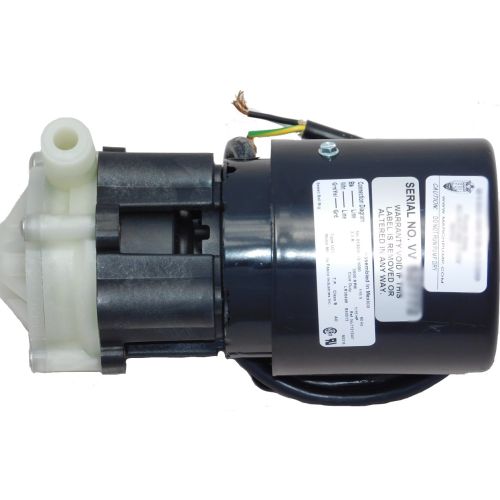

MARCH PUMP AC-5C-MD Mag-Drive Centrifugal Pump / Dometic PMA1000C 230V (1,020 GPH)

MARCH PUMP AC-5C-MD Mag-Drive Centrifugal Pump / Dometic PMA1000C 230V (1,020 GPH)

MARCH PUMP AC-5C-MD Mag-Drive Centrifugal Pump / Dometic PMA1000C 230V (1,020 GPH)

Customer ratings and reviews

March Pump AC-5C-MD 230V is an American seal-less centrifugal magnetic pump. Plastic Pump Head and Impeller, 230V 50/60Hz Air Cooled Motor, Up To 17GPM, 1" FPT Inlet, 1/2"MPT Outlet, 3 Foot Power Cord with No Plug. Commonly used for marine air conditioning.

March Pumps Part Number: AC-5C-MD 230V
Replaces Dometic Part Number: 225500069 - Dometic PMA1000C 230V



In Stock: -1

MA AC-5C-MD / PMA1000C 230V

$389.99

Buy Now!

Add to cart

Financing Available with Affirm

Financing Available with Paytomorrow
Estimated monthly payment with 24 month financing. *Based on credit approval. More info
Pay over time with monthly payments.
  • APR, loan limit and payment periods available will be based on credit score
  • APRs available range from 0% to 17.99%, payment periods from 6 to 24 months and the max loan limit is $10,000
  • Select from different payment periods (e.g. 6 months, 12 months, 18 months, etc.)
  • Running the pre-approval process in order to determine what payment terms are available will not affect your credit score (soft pull)

By buying this product you can collect up to Your cart will total 38 points that will be converted into a of $3.80 towards your next purchase! Must be to collect points.

More info

March AC-5C-MD 230V Mag-Drive Centrifugal Pump
Replaces Dometic PMA1000C

March Pump AC-5C-MD replaces Dometic PMA1000C

The March Pump AC-5C-MD is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation, chemical transfer, and scrubber systems. It is capable of generating a maximum flow of 17 gallons per minute at 1 feet, and its maximum head is 27 Feet (or around 11PSI). The standard wet end (the materials that come into contact with the solution) is composed of Polypropylene, Buna N, Ceramic, and Ceramic Magnet. The inlet connection is 1 inch female pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower fan cooled motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). Direct replacement for Dometic PMA1000C 230V Part Number: 225500276

Operation

Pumps are not self-priming, lack a suction lift, and thus require a flooded suction. Pumps cannot be run dry because the impeller requires the liquid being pumped for lubrication. For liquids with a specific gravity greater than water, have a higher viscosity, or for elevated temperatures, a trimmed impeller may be necessary. For application assistance, contact March Pump.

Electrical

Model is 230 Volt and have a 3 ft (0.9 m) Cord. Models have U.L. listed motors, which are rated for continuous duty.

About the DOMETIC PUMP ASY PMA1000C 230V

The Dometic Reliable, heavy-duty centrifugal pump provides a steady flow of cooling water through the air conditioning system. A wide range of pumps and motors are available for use in different power environments. 230, 60Hz.

The March AC-5C-MD is the identical pump, under different branding (and for less cost) - The AC-5CP-MD is the ideal marine air conditioner pump for applications up to 48,000 BTU. Its magnetic drive design means that a shaft is not required; therefore, reducing the components that are susceptible to damage and wear over time. If you are looking for an ideal boat air conditioner pump at a competitive price, this March pump is perfect for you

Limited Warranty

March pumps are guaranteed only against defects in workmanship or materials for a period of one year from date of manufacture pumping water. For the complete warranty and to register online go to www.marchpump.com/warranty-registration

Specifications of the March Pump AC-5C-MD

Part NumberAC-5CP-MD
Dometic EquivalentPMA1000C (225500069)
Max Flow17 GPM / 64.4 LPM
Max Head27 FT / 8.2 M
Max Internal Pressure50 psi (344 kPa)
Max Liquid Temperature190 °F (87 °C)
Power0.125 HP / 0.093 KW
Voltage230V 50/60Hz
Inlet1"FPT
Outlet1/2"MPT
Dimensions (inches)6.19 x 4.52 x 9.27
Packed Weight (lbs)8.55
ApplicationsMarine air conditioning


AC-5C-MD Curve

Dimensions

AC-5C-MD Dimensions
