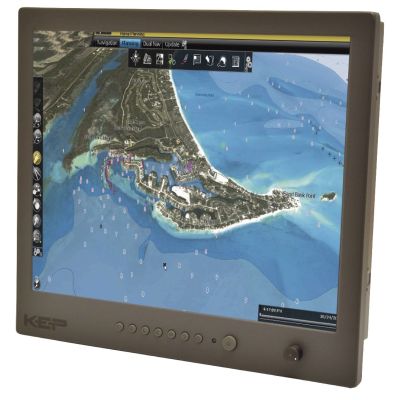

KEPL-15, 15" Sunlight Readable Marine Display

AYDIN MARINE (KEP) KEPL-15 Sunlighy Readable 15" Display color LCD, auto scaling, 1000 nit, no PIP, 12 or 24 V. Inputs: 1 VGA, 1 DVI, 3 compsite, 1 RS232.


KEP Marine displays are no longer available. Please check Seatronx for a replacement

Reference: KEPL-15

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

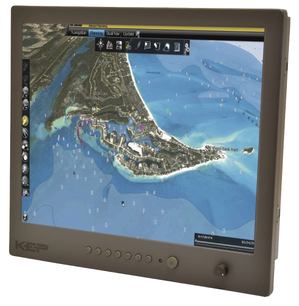

Aydin Marine KEPL-15 - 15" Sunlight Readable Display

Aydin Marine KEPL-15

The KEPlite Series is a cost effective IP65 Sunlight Readable Display from the leaders in Marine Displays, KEP Marine. Ideal for Fly Bridge or Pilot House Installations.


1000 Nits Sunlight Readable LCD
Long Life, Low Power Consumption LED Backlight
EN60945 Approved

-10°C~+55°C Wide Operation Temperature
Optical Bonded
Resistive Touch Support Option

IP65 Waterproof
9~36V DC input
1 Year Aydin Marine Warranty


LCD Display 15” LED Backlight
Active Display Area 304.128x228.096 mm
Brightness 1000 cd/m2
Resolution 1024x768 (XGA)
Contrast 700:1
Pixel Pitch (mm) 0.297(H)x0.297(V)
Viewing Angle U/D/L/R 160°/160°/160°/160°
Display Color 16.2M
Response Time Tr 8ms / Tf 17ms
Video Inputs 1x VGA, 1x DVI, 3x Composite
Communications Port 1x RS232
IP Rating Front waterproof to IP65 standards when console

Construction Rugged Aluminum Alloy Chassis
Mounting Panel Mount, VESA Mount
Dimensions (W x H x D) 352.8 mm (W) x 303.3 mm (H) x 56 mm (D) mm
Power Consumption 30~35 W
Voltage Operates on 12V and 24V Systems

Operating Temperature -10°C~55+°C (14°F~122°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Certifications EN60945 Approved
