KEPL-17, 17" Sunlight Readable Marine Display

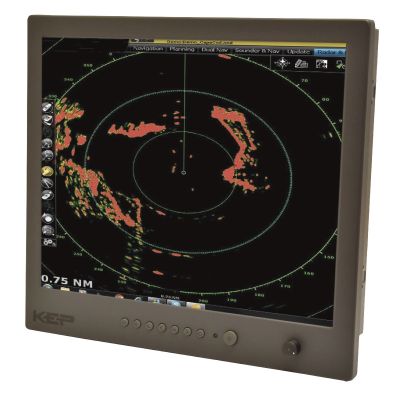

Aydin Marine KEPL-17 - 17" Sunlight Readable Display

AYDIN MARINE / KEP Sunlight Readable Displays are designed for the Marine industry. These rugged displays deliver crisp text, fast response and optimized viewing angles under any outdoor lighting conditions due to out bonding technology.The KEPL Series is a cost effective IP65 Sunlight Readable Display from the leaders in Marine Displays, KEP Marine. Ideal for Fly Bridge or Pilot House Installations. Are designed for the Marine and Industrial Environment, the KEPL Series is great for outdoor and indoor marine solutions, standard with touchscreen, available in many sizes.

Features

1000 Nits Sunlight Readable LCD
Long Life, Low Power Consumption LED Backlight
EN60945 Approved
-10°C~+55°C Wide Operation Temperature
Optical Bonded
Resistive Touch Support Option
IP65 Waterproof
9~36V DC input
1 Year Aydin Marine Warranty

Specifications

LCD Display 17” LED Backlight
Active Display Area 337.92x270.336 mm
Brightness 1000 cd/m2
Resolution 1280x1024 (SXGA)
Contrast 1000:1
Pixel Pitch (mm) 0.264(H)x0.264(V)
Viewing Angle U/D/L/R 160°/160°/160°/160°
Display Color 16.2M
Response Time Tr 3.5ms / Tf 1.5ms
Video Inputs 2x VGA, 2x DVI, 3x Composite
Communications Port 1x RS232
IP Rating Front waterproof to IP65 standards when console
mounted
Construction Rugged Aluminum Alloy Chassis
Mounting Panel Mount, VESA Mount
Dimensions (W x H x D) 3384 mm (W) x 348.1 mm (H) x 57.8 mm (D) mm
Net Weight To be advised
Power Consumption 35~40W
Voltage Operates on 12V and 24V Systems
Operating Temperature -10°C~55+°C (14°F~122°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Certifications EN60945 Approved
