KEPL-12, 12" Sunlight Readable Marine Display

AYDIN MARINE (KEP) KEPL-12 Sunlighy Readable 12" Display color LCD, auto scaling, 1000 nit, no PIP, 12 or 24 V. Inputs: 1 VGA, 1 DVI, 3 compsite, 1 RS232.


KEP Marine displays are no longer available. Please check Seatronx for a replacement

Reference: KEPL-12

Shipping Calculator
Free Shipping on Orders over $99
Free Shipping on Orders over $99
*On Orders Over $99; Not including: Hazardous, Oversize, Greater than (+150 lbs.) or Freight Advertised Products. FEDEX Ground Shipping / Continental US Only
Shipping Calculator

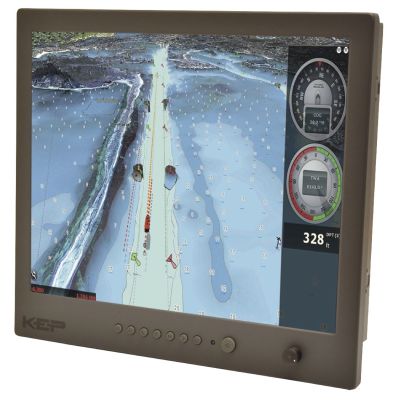

Aydin Marine KEPL-12 - 12" Sunlight Readable Display

Aydin Marine KEPL-12

AYDIN MARINE / KEP Sunlight Readable Displays are designed for the Marine industry. These rugged displays deliver crisp text, fast response and optimized viewing angles under any outdoor lighting conditions due to out bonding technology.The KEPL Series is a cost effective IP65 Sunlight Readable Display from the leaders in Marine Displays, KEP Marine. Ideal for Fly Bridge or Pilot House Installations. Are designed for the Marine and Industrial Environment, the KEPL Series is great for outdoor and indoor marine solutions, standard with touchscreen, available in many sizes.


1000 Nits Sunlight Readable LCD
Long Life, Low Power Consumption LED Backlight
EN60945 Approved

-10°C~+55°C Wide Operation Temperature
Optical Bonding
Resistive Touch Support Option

IP65 Waterproof
9~36V DC input
1 Year Aydin Marine Warranty


LCD Display 12.1” LED Backlight
Active Display Area 245.76x184.32 mm
Brightness 1000 cd/m2
Resolution 1024x768 (XGA)
Contrast Ratio 800:1
Pixel Pitch (mm) 0.24(H)x0.24(V)
View Angle U/D/L/R 140°/140°/140°/140°
Display Colors 262, 144
Response Time Tr 6ms / Tf 17ms
Video Inputs 1x VGA 1x DVI 3x Composite
Communications Port 1x RS232
IP Rating Front waterproof to IP65 standards when console

Construction Rugged Aluminum Alloy Chassis
Mounting Panel Mount, VESA Mount
Dimensions (W x H x D) 297.2 mm (W) x 256 mm (H) x 56 mm (D) mm
Power Consumption 25~30 W

Voltage Operates on 12V and 24V systems
Operating Temperature -10°C~55+°C (14°F~122°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Certifications EN60945 Approved
