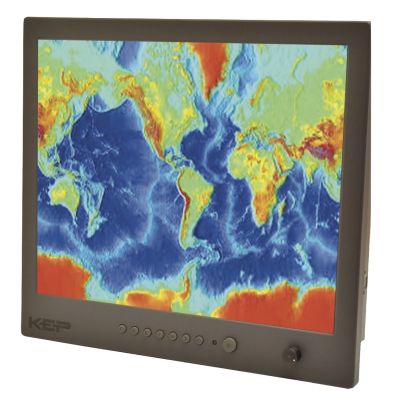

KEPL-21, 21" Sunlight Readable Marine Display

Aydin Marine KEPL-21 - 21" Sunlight Readable Display



AYDIN MARINE / KEP Sunlight Readable Displays are designed for the Marine industry. These rugged, high-performance touch monitor with wide screen LCD display. It is engineered to survive the most demanding working environment. Housed in a milled billet aluminum case, the slim-profile KEPL-21W is lightweight and water-tight. The front-mounted sunlight readable touchscreen is vivid and user-friendly, and its high power efficiency and low-heat design guarantee the stability and longevity required for mission critical deployment.

Features

1000 nits Sunlight Readable LCD
Long Life, Low Power Consumption LED Backlight
EN60945 Approved
-10°C ~ +55°C Wide Operation Temperature
Optical Bonded
Resistive Touch Support
IP65 Facial Waterproof
9-36V DC Input
1 Year Aydin Marine Warranty

Specifications

LCD Display 21” LED Backlight
Active Display Area 376.32 x 301.06 mm
Brightness 1000 cd/m2
Resolution 1280 x 1024 (SXGA)
Contrast 900:1
Pixel Pitch (mm) 0.294 (H) x 0.294 (V)
Viewing Angle U/D/L/R 160°/160°/160°/160°
Display Color 16.2 M
Response Time Tr 3.6 ms / Tf1.4ms
Video Inputs 2x VGA
2x DVI
3x Composite
Communications Port 1x RS232
IP Rating Front waterproof to IP65 standards when console
mounted
Construction Rugged Aluminum Alloy Chassis
Mounting Panel Mount, VESA Mount
Dimensions (W x H x D) 525.78 mm (W) x 345.18 mm (H) x 56 mm (D)
mm
20.70” (W) x 13.59” (H) x 2.20” (D) in
Power Consumption 40~45 W
Voltage Operates on 12V and 24V Systems
Operating Temperature -10°C~55+°C (14°F~122°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Certifications EN60945 Approved
